Home >> Chevrolet >> 1997 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Switch

Ignition Switch

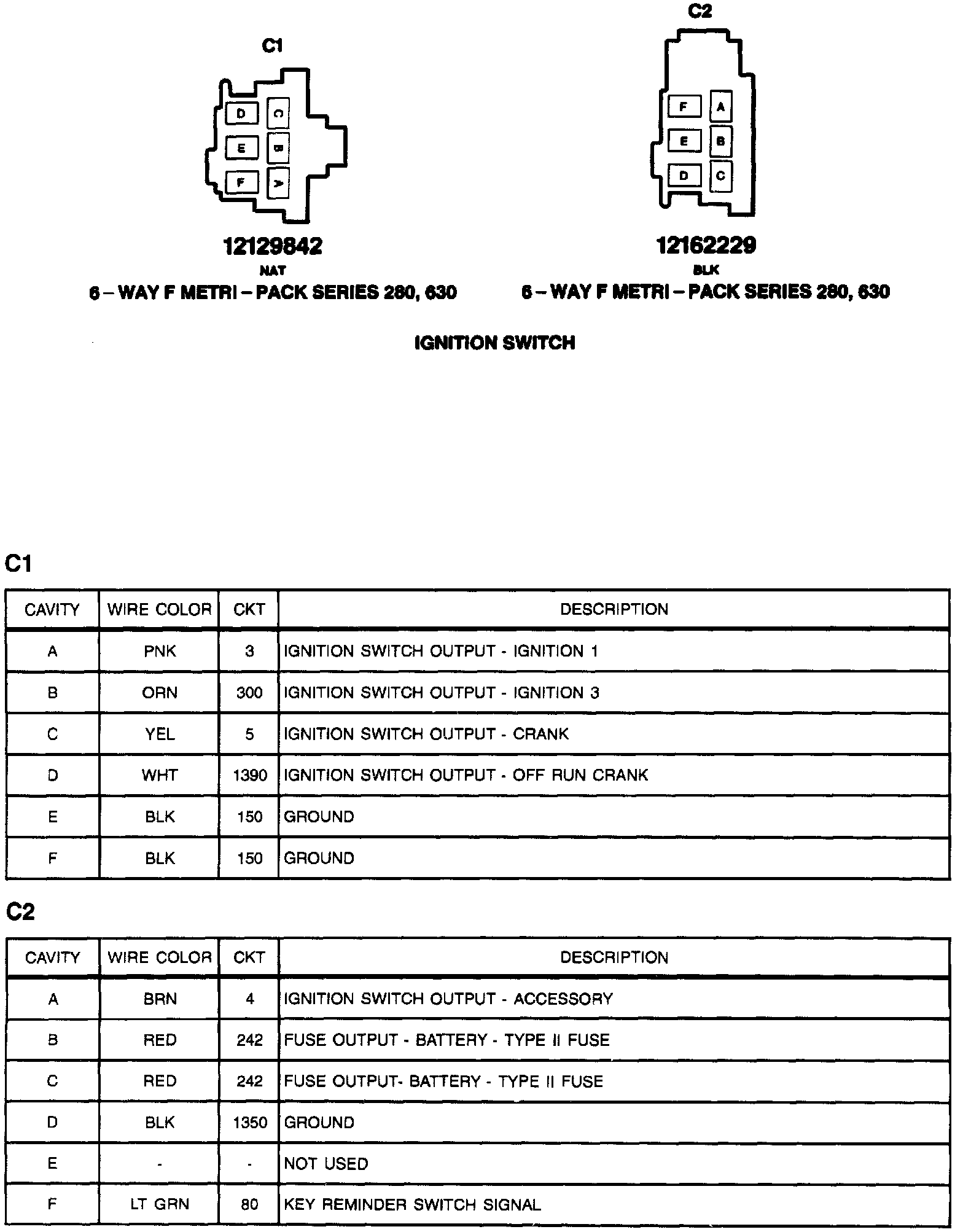

Ignition Switch: C1 And C2:
