Home >> Chevrolet >> 1997 >> Astro Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> I/P Fuse Block View

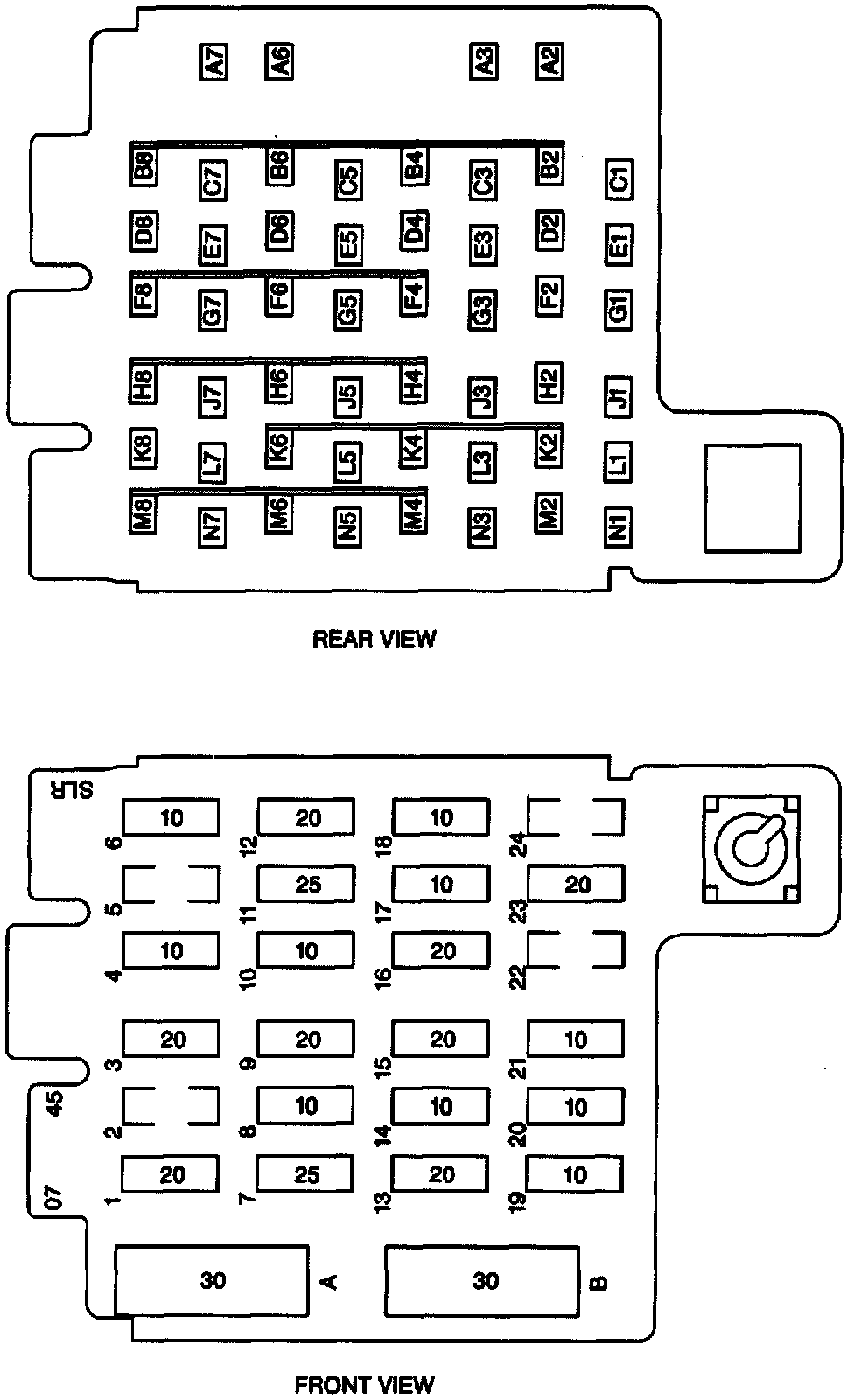

I/P Fuse Block View

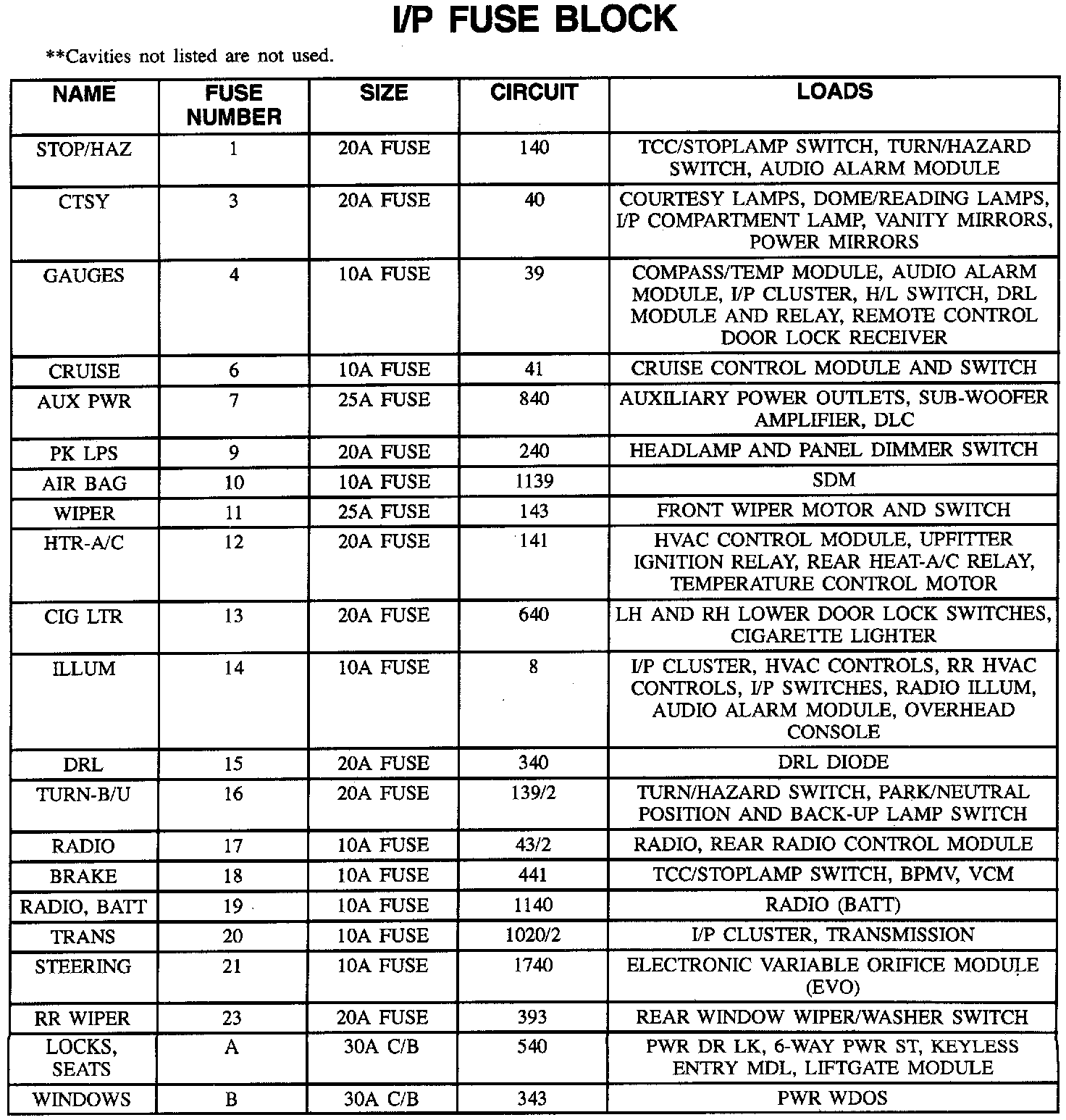

Fuse Block Details: I/P Fuse Block:



I/P Fuse Block:
