Generator

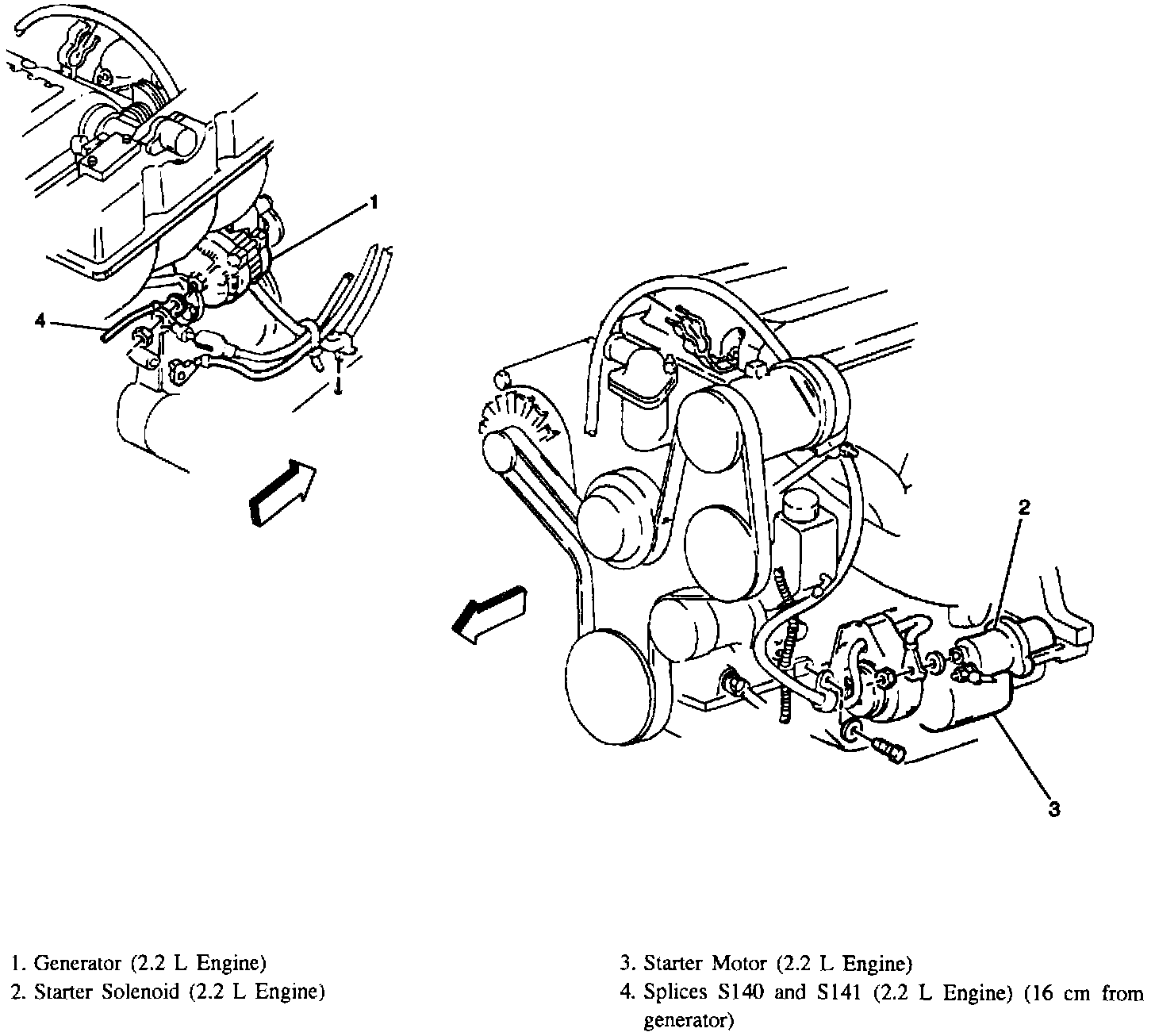

Engine Generator And Starter Wiring:

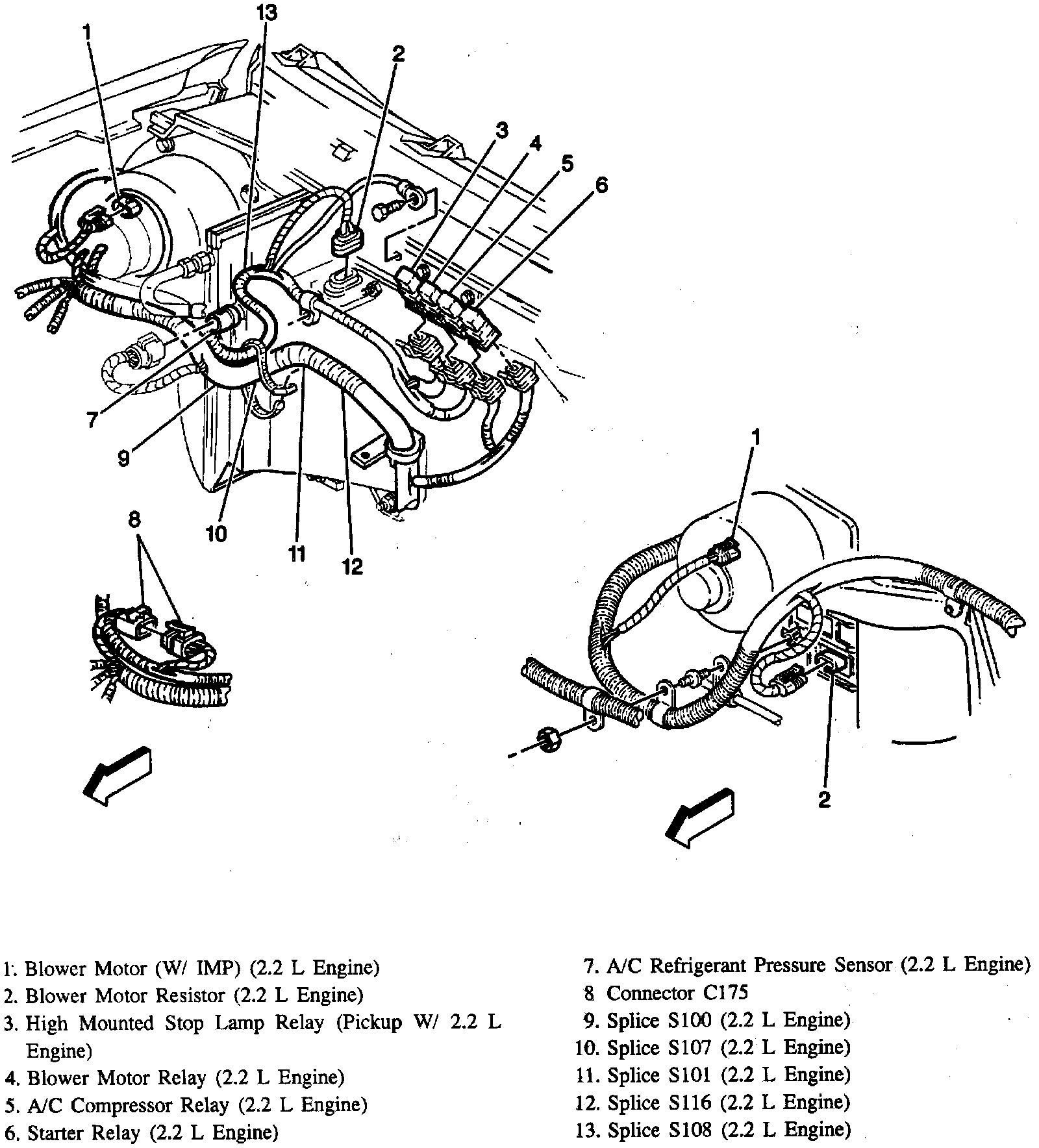

Engine Compartment Wiring (RH Rear) (2.2L Shown Others Similar):
