Home
>>
Chevrolet
>>
1996
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
A/C Compressor
A/C Compressor

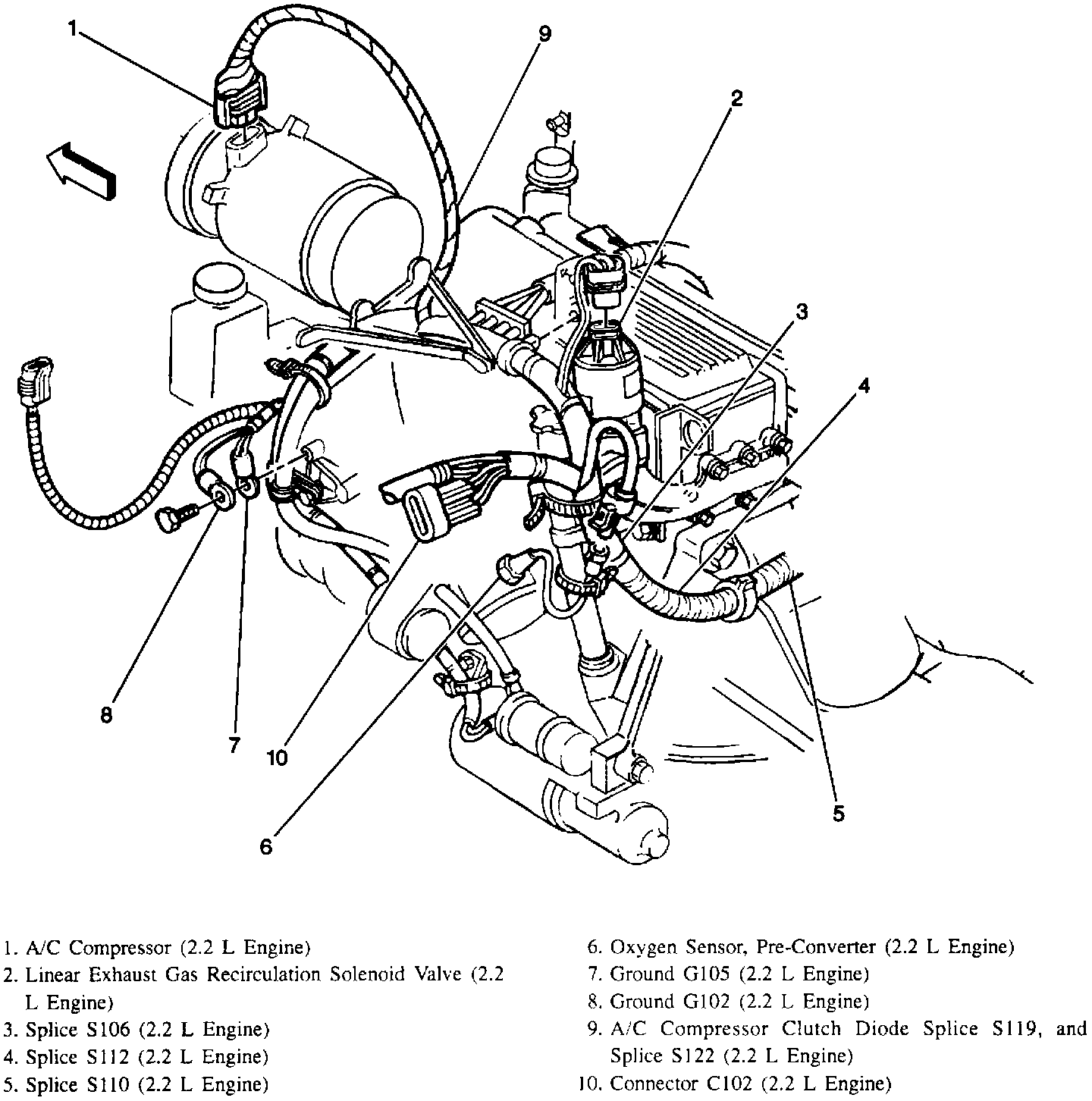

Engine Wiring (LH Side):
