Transmission Position Sensor/Switch: Testing and Inspection

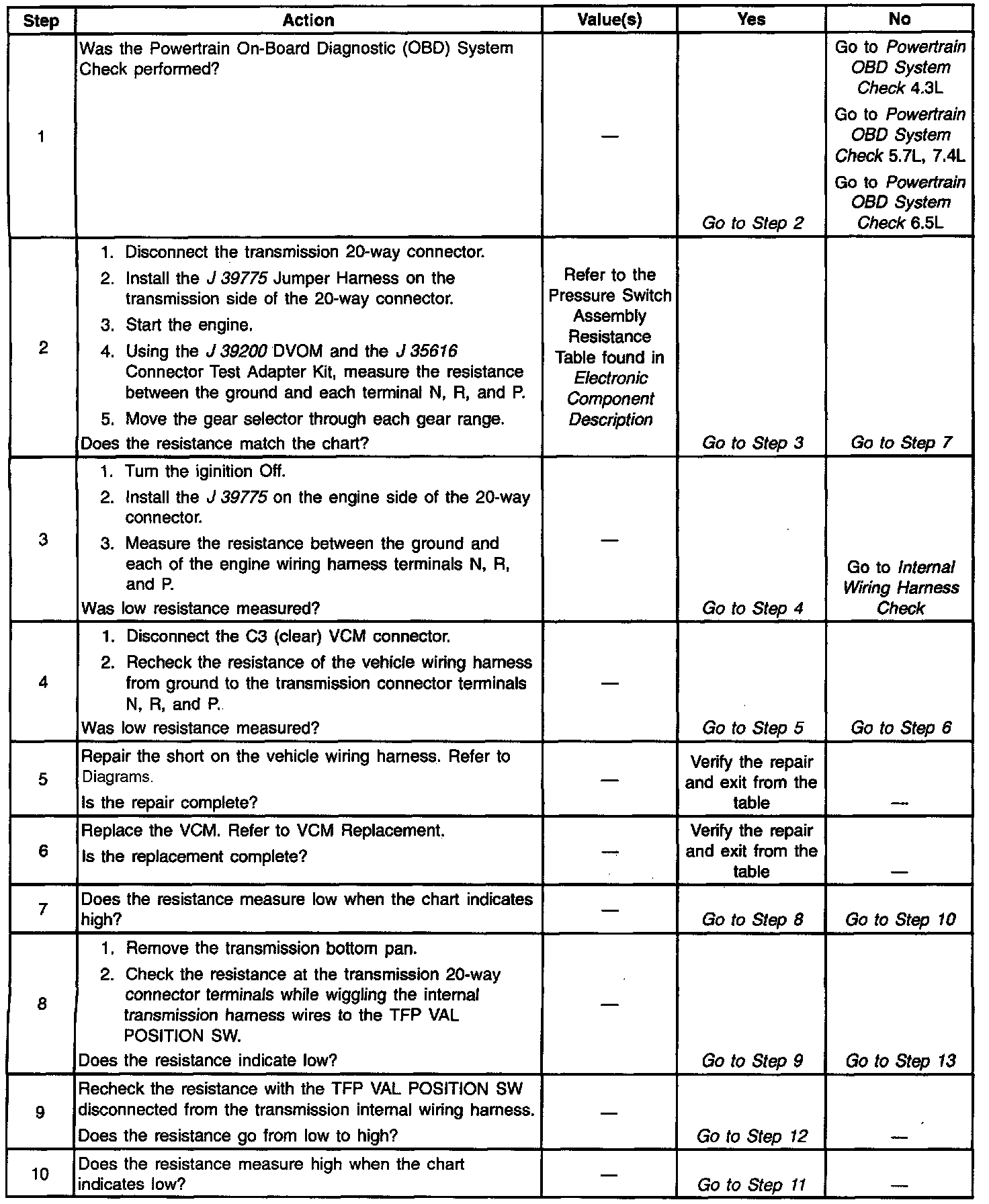

Diagnostic Chart:

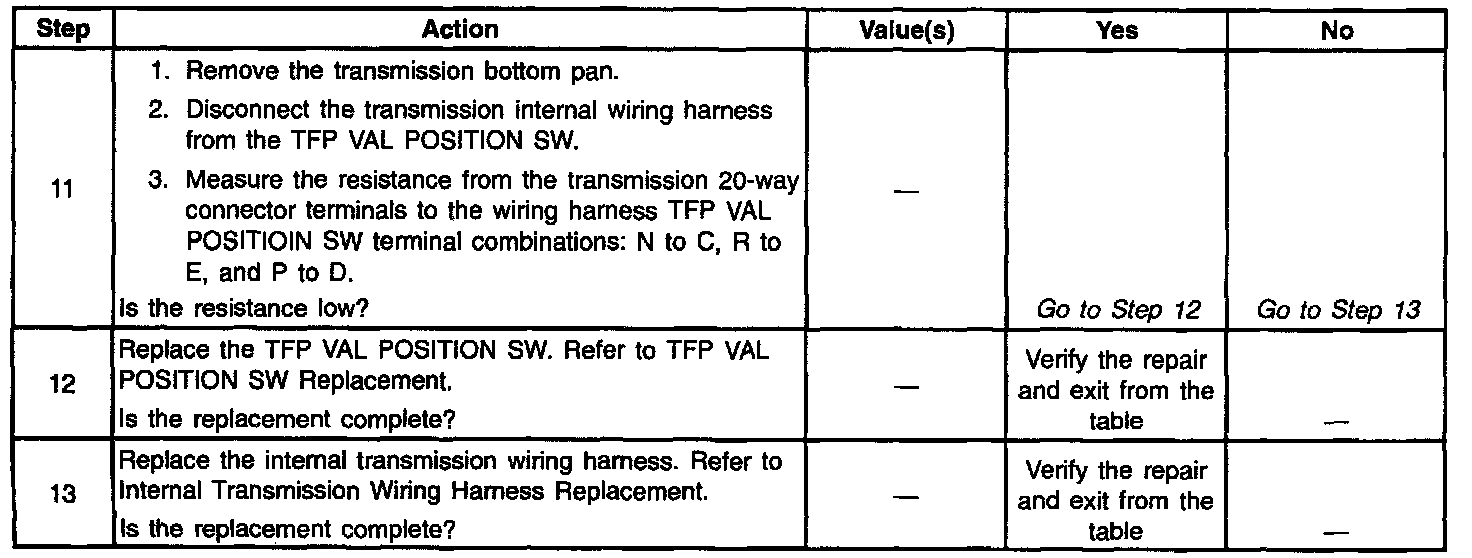

Diagnostic Chart (cont'd):
