Home >> Chevrolet >> 1996 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C1, C2, C3 >> Pinout Description

Pinout Description

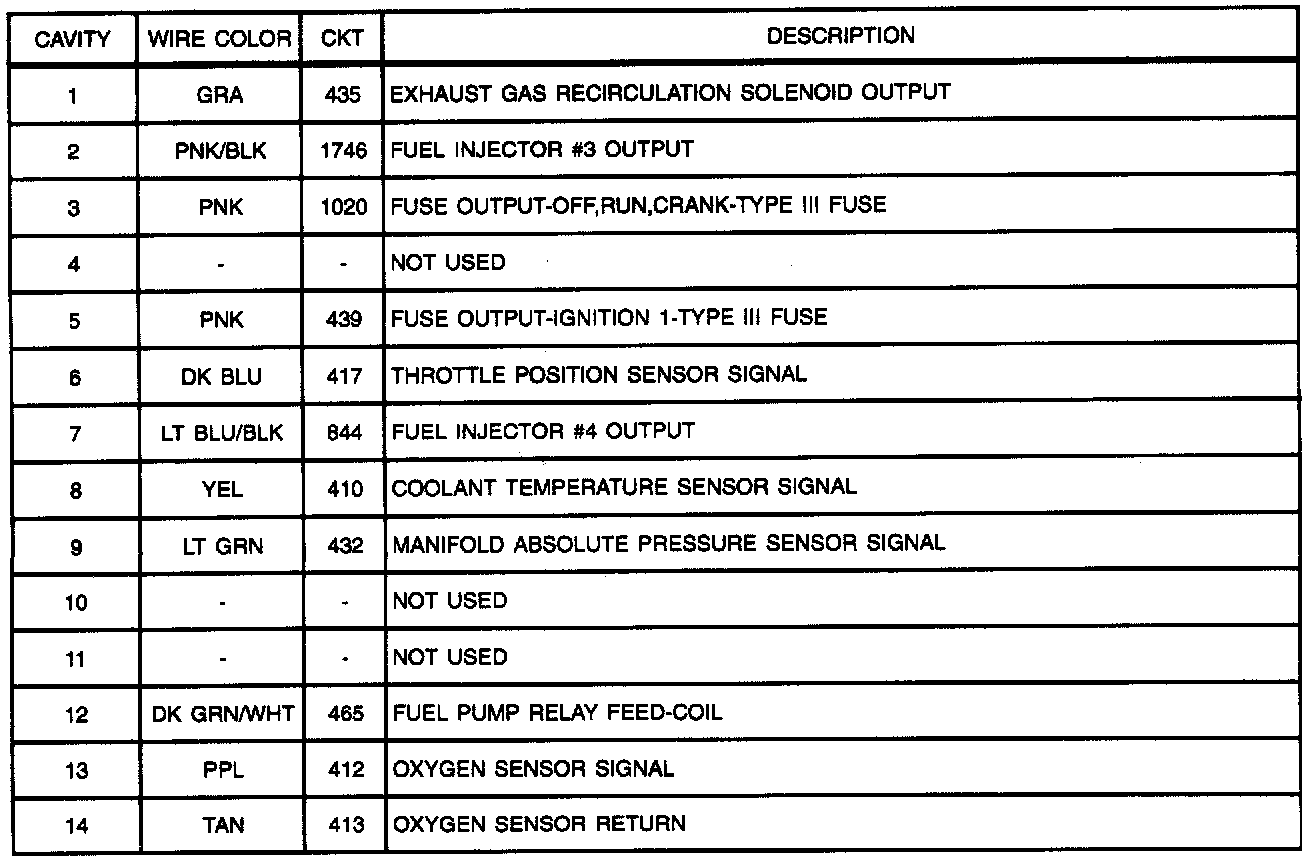

Powertrain Control Module: C1 (Part 1 Of 2):

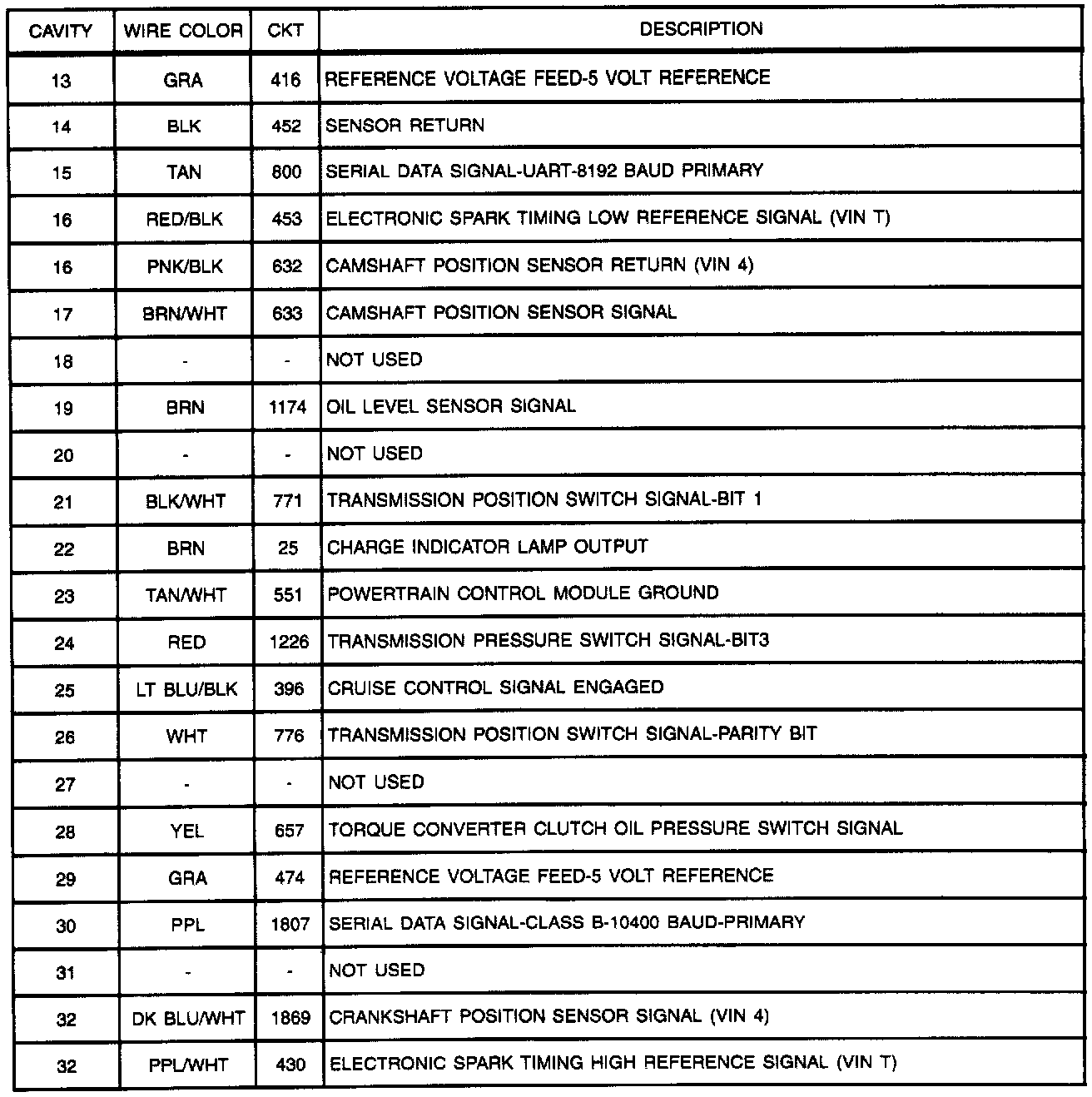

Powertrain Control Module: C1 (Part 2 Of 2):

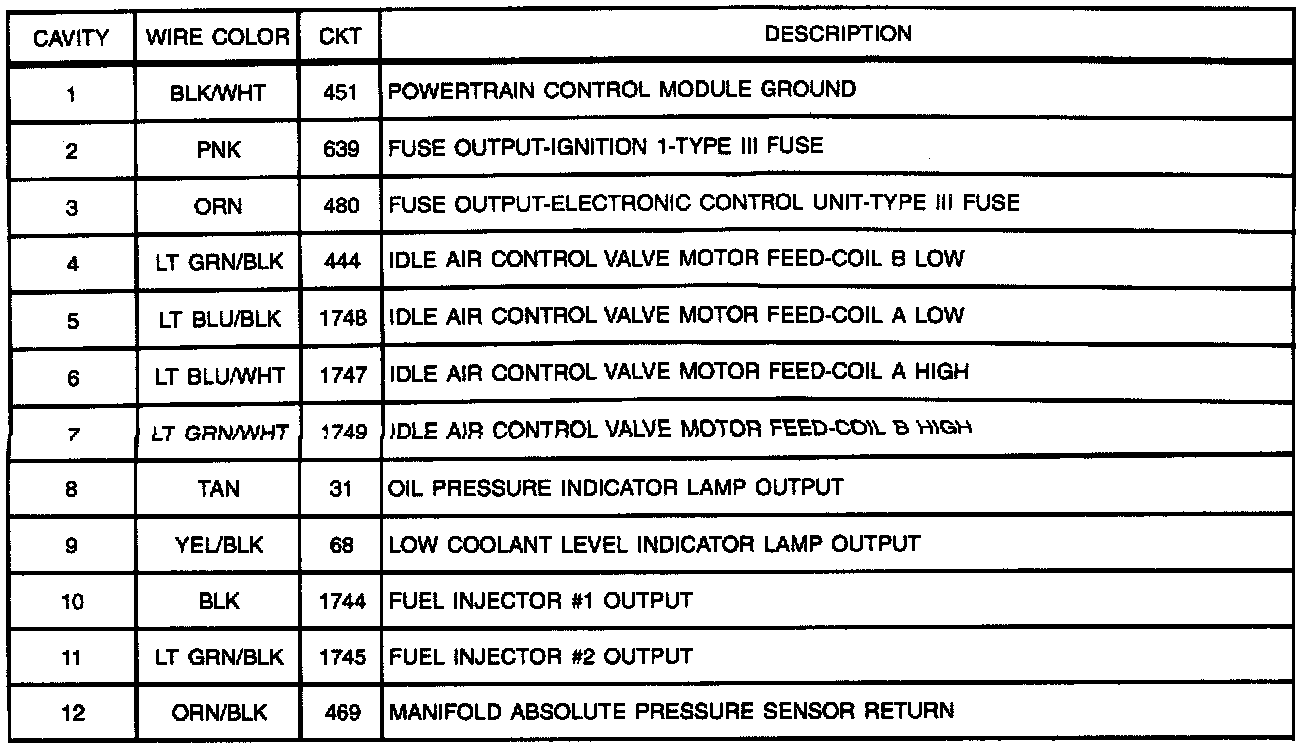

Powertrain Control Module: C2 (Part 1 Of 2):

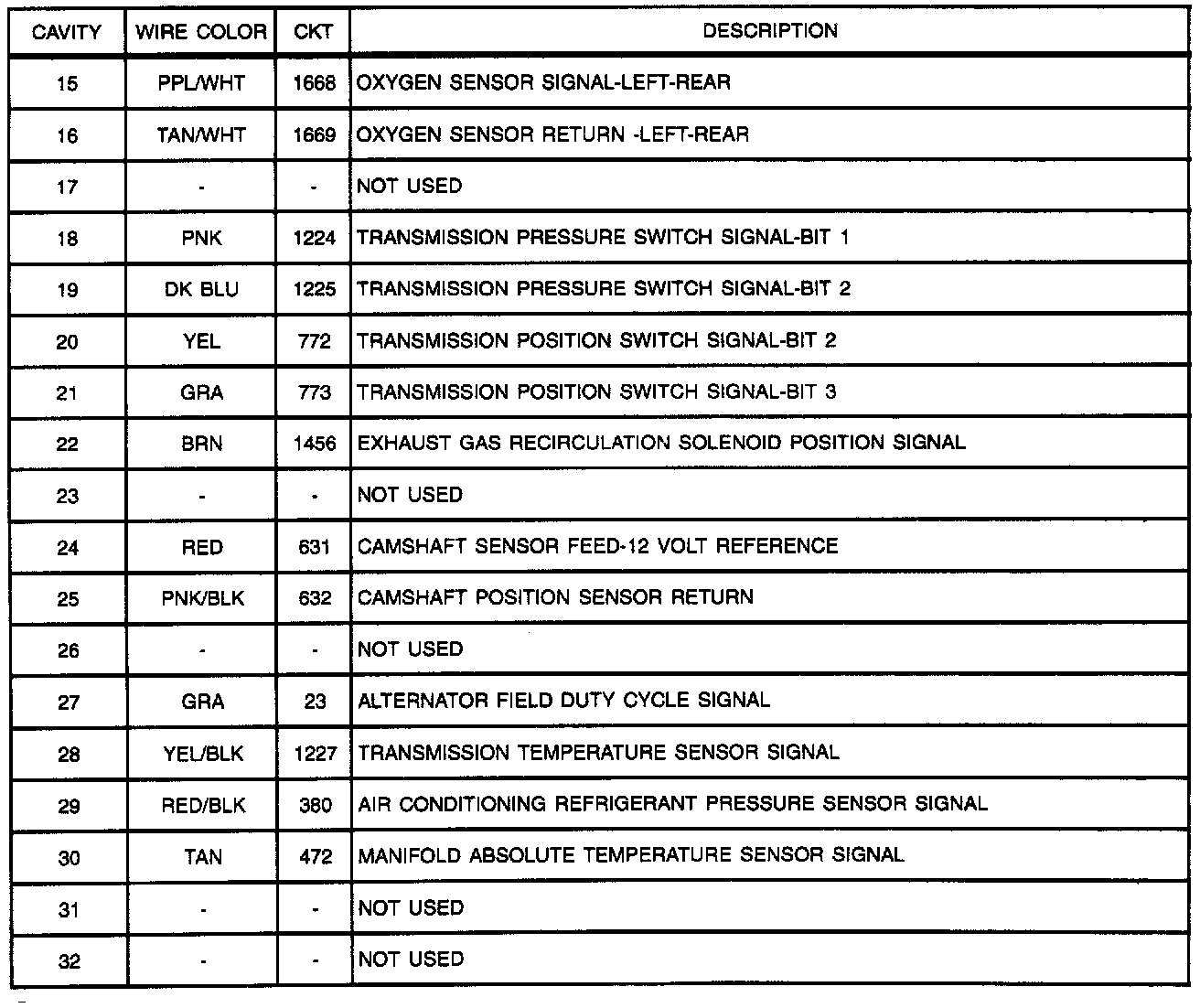

Powertrain Control Module: C2 (Part 2 Of 2):

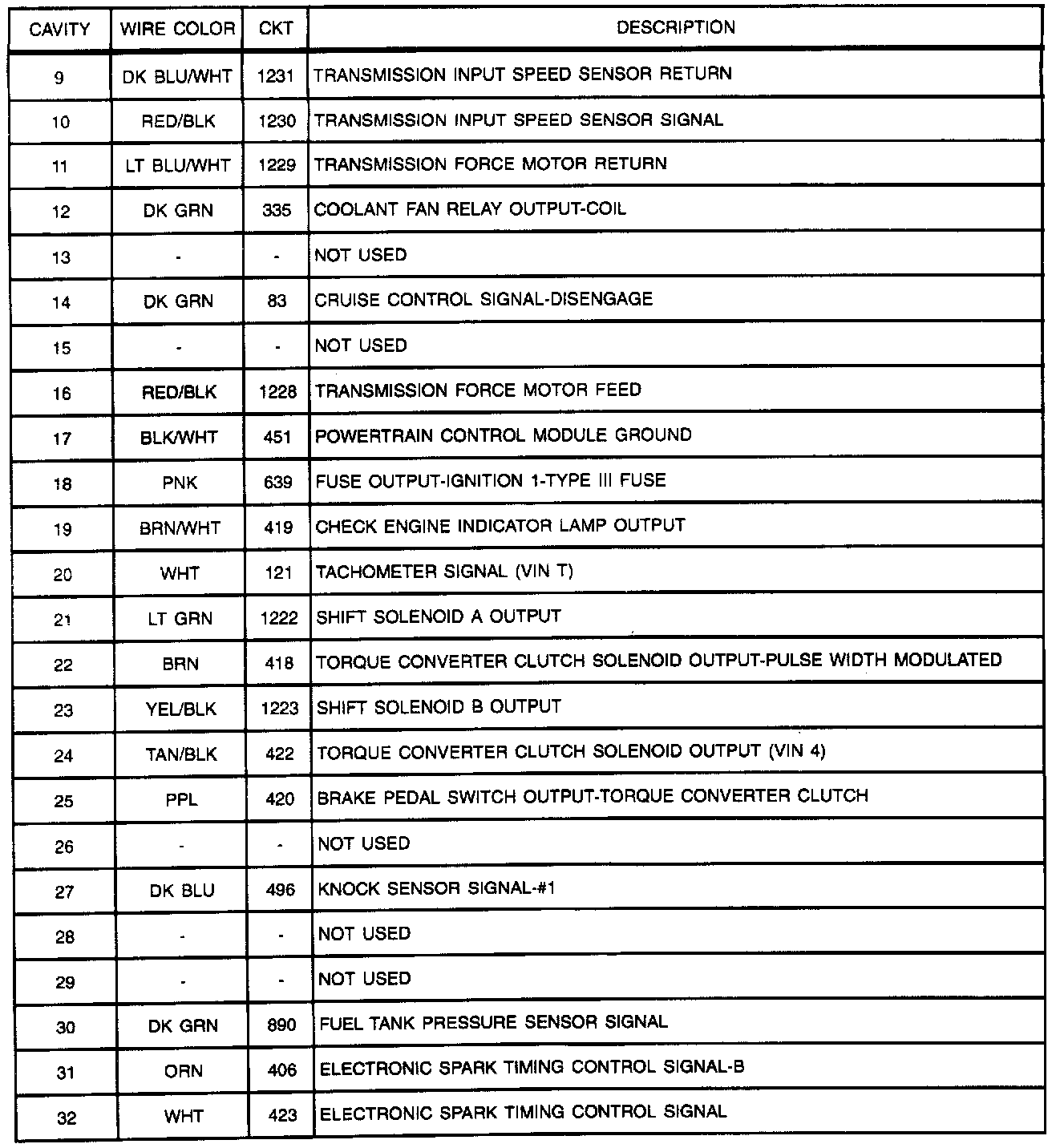

Powertrain Control Module: C3 (Part 1 Of 2):




Powertrain Control Module: C3 (Part 2 Of 2):
