Home >> Chevrolet >> 1996 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

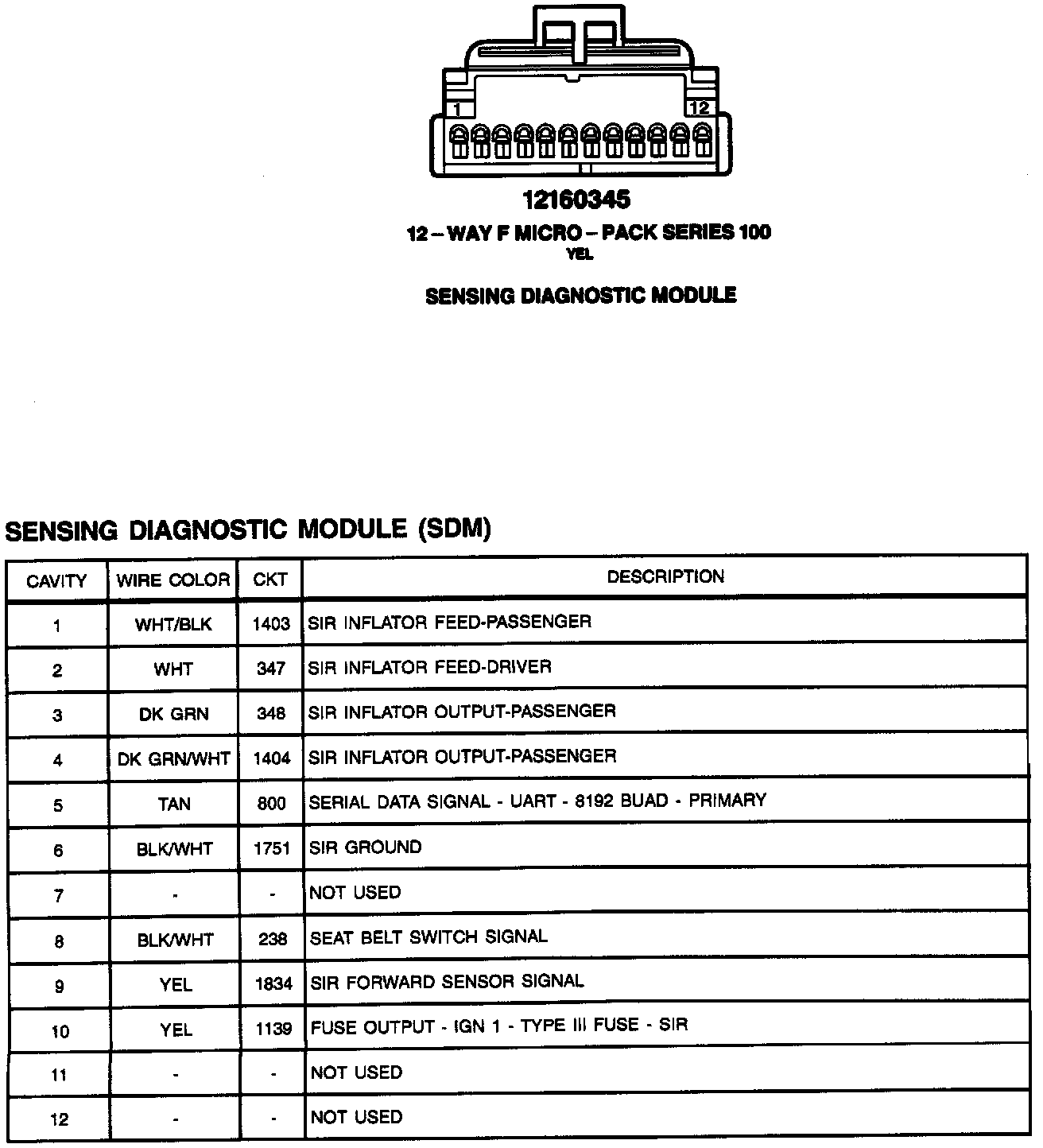

Sensing Diagnostic Module (SDM):
