Rear Air Conditioning

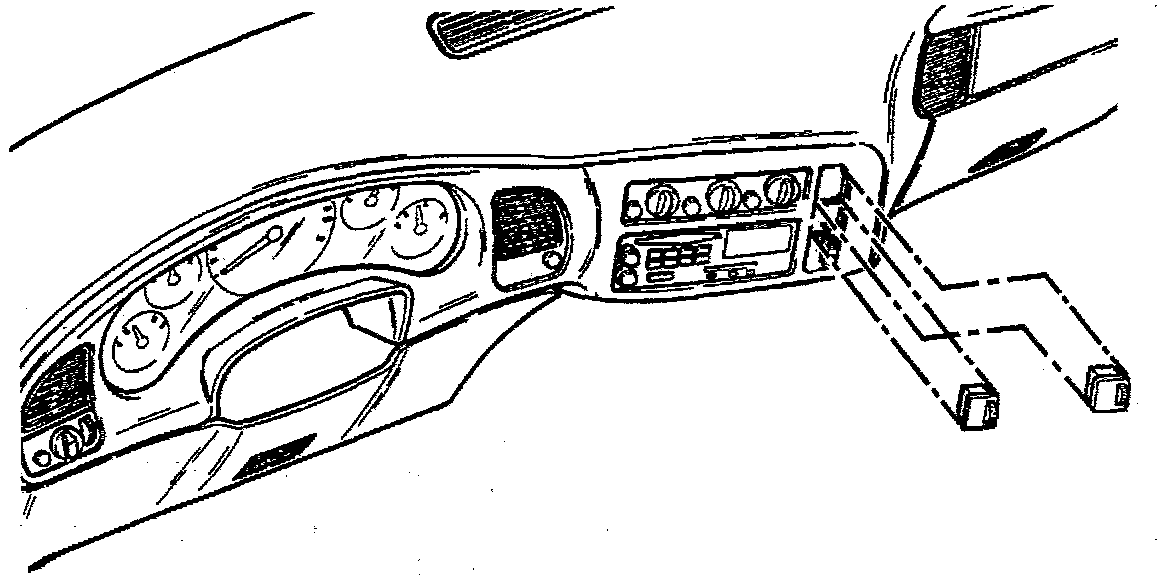

Auxiliary Control Switches:






REMOVE OR DISCONNECT
1. Instrument cluster trim bezel.
2. Electrical connector.
3. Rear A/C blower switch from bezel by release tabs on both sides of switch.

INSTALL OR CONNECT
1. Rear A/C blower switch to the instrument cluster trim bezel by snapping into place.
2. Electrical connector.
3. Instrument cluster trim bezel.
