Home >> Chevrolet >> 1996 >> Astro Van M V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C4 (Black)

C4 (Black)

Connector View:

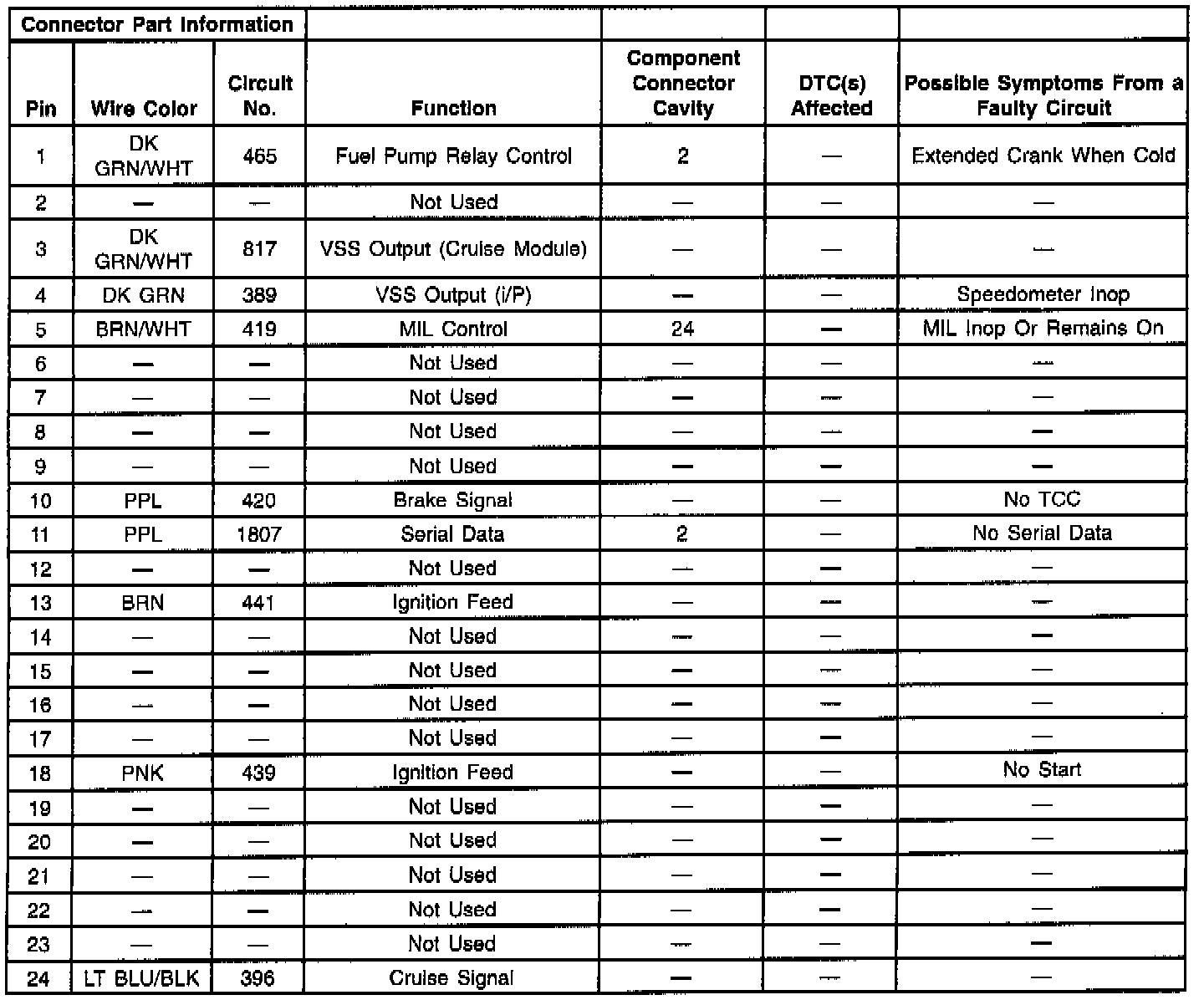

Pin-Out:
