Home >> Chevrolet >> 1996 >> Astro Van M V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> A/C Compressor

A/C Compressor

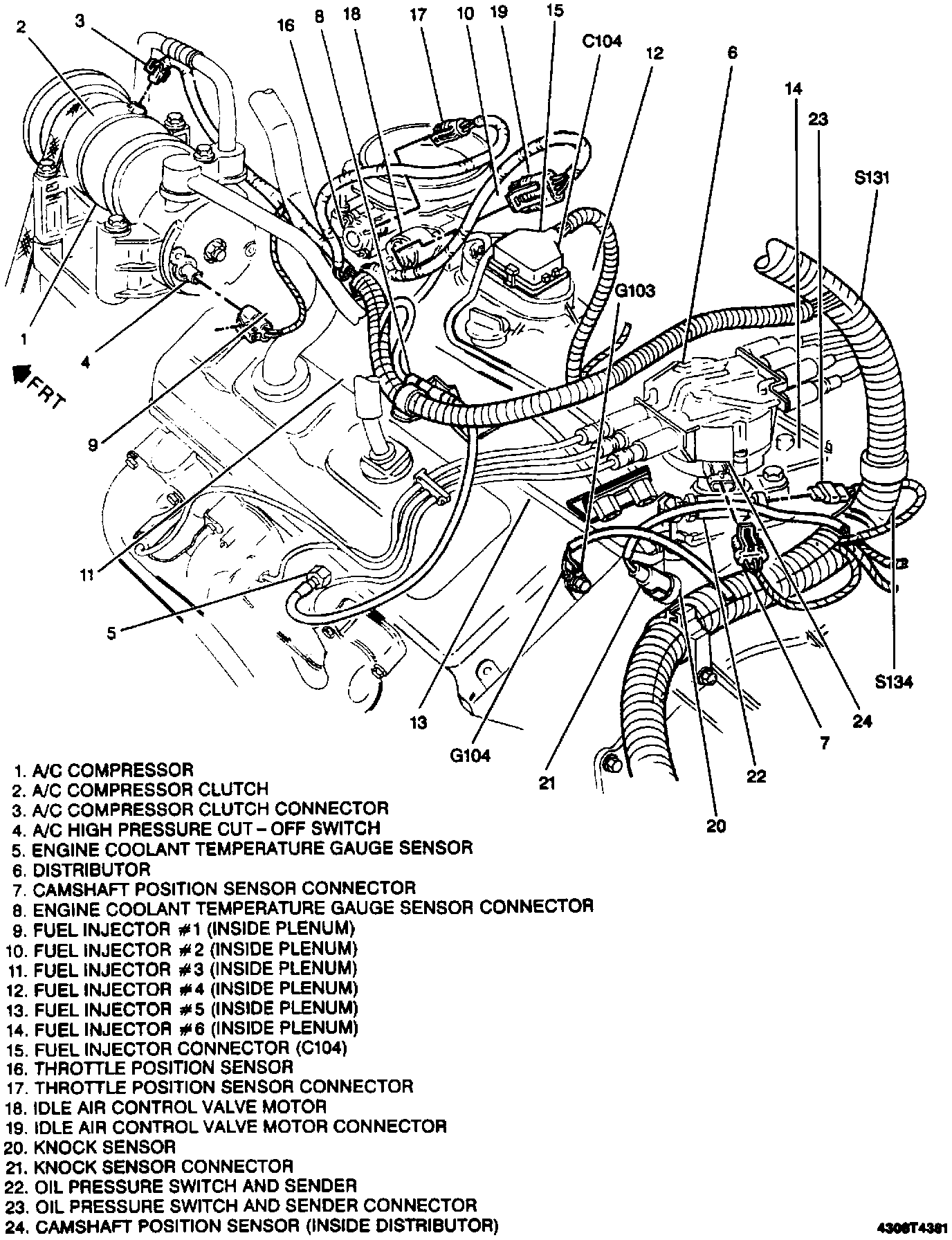

Engine Wiring, LH Side:
