Engine Control Module
>>
With Manual Transmission
>>
Red Connector
Red Connector

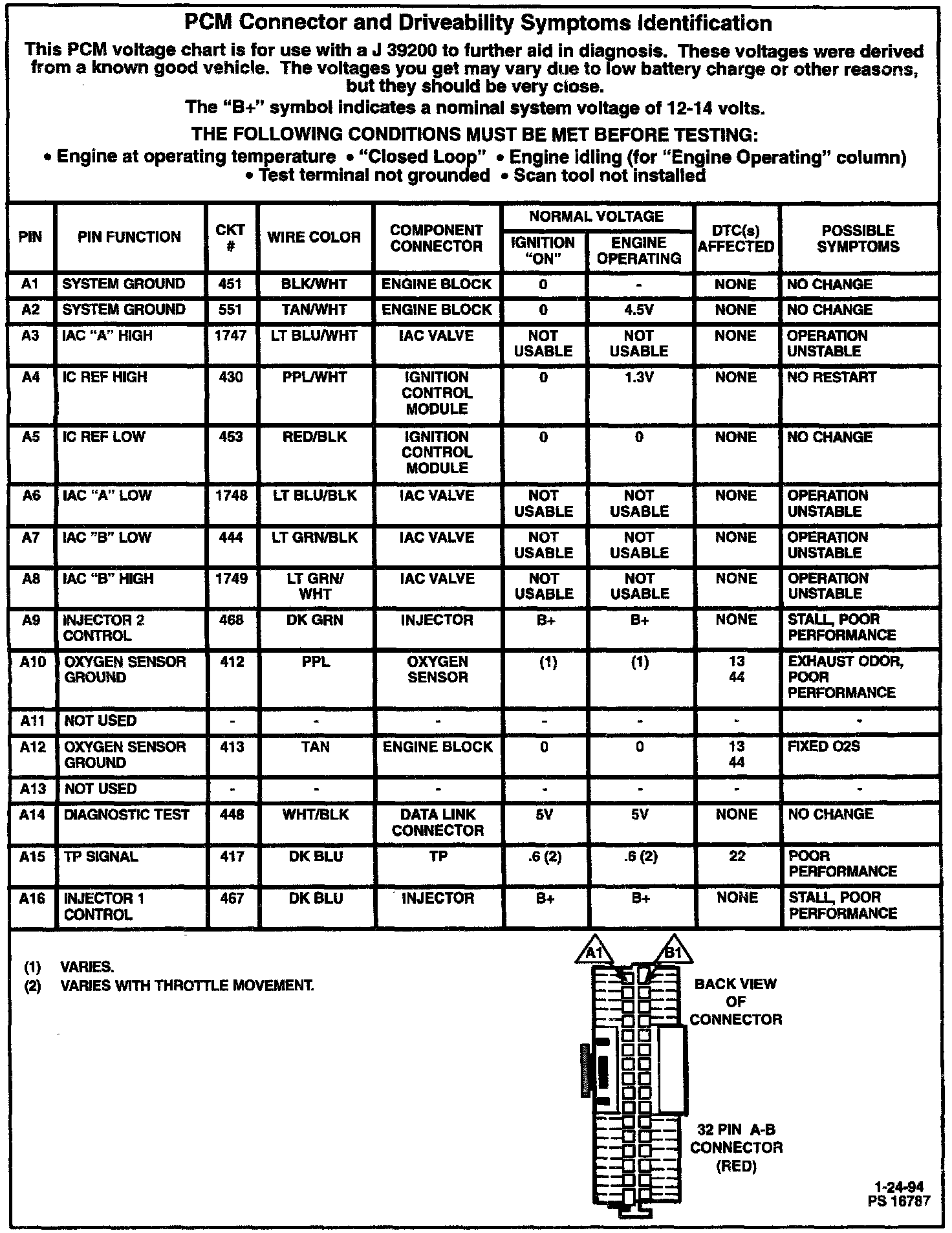

PCM Connector Terminal End View (1 Of 1):
