Pinout Description

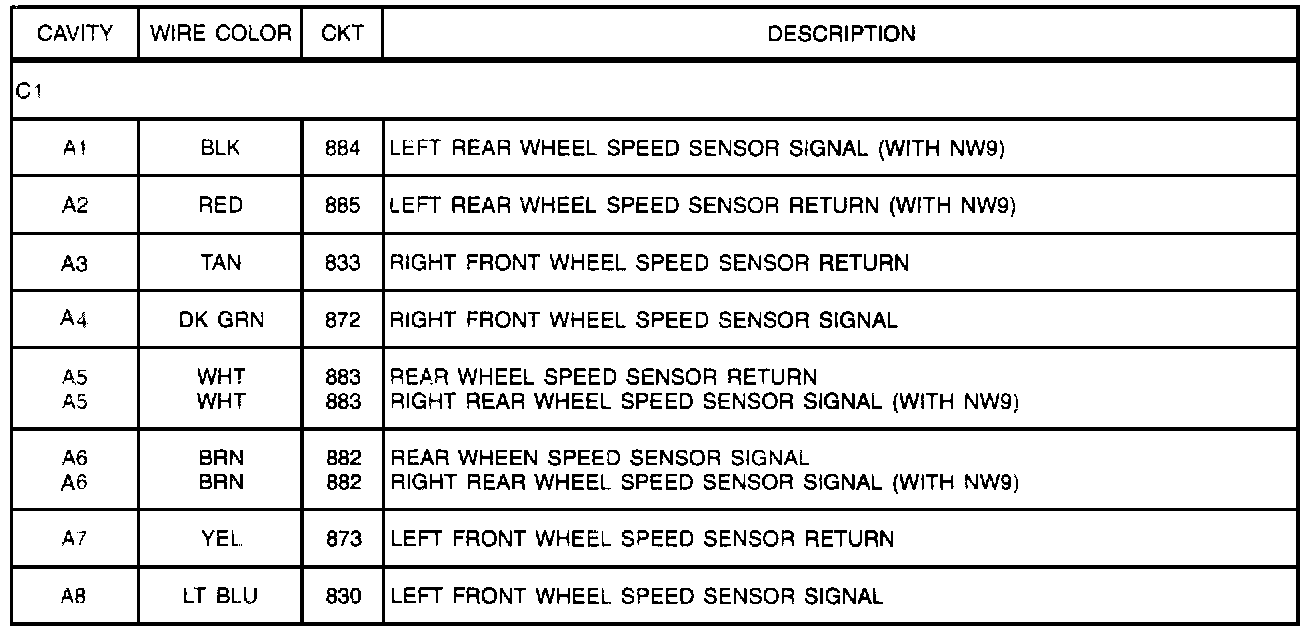

Wire Color And Description:

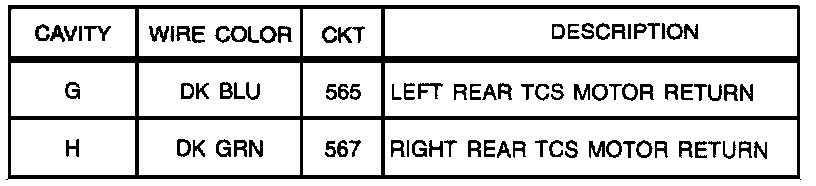

Wire Color And Description:

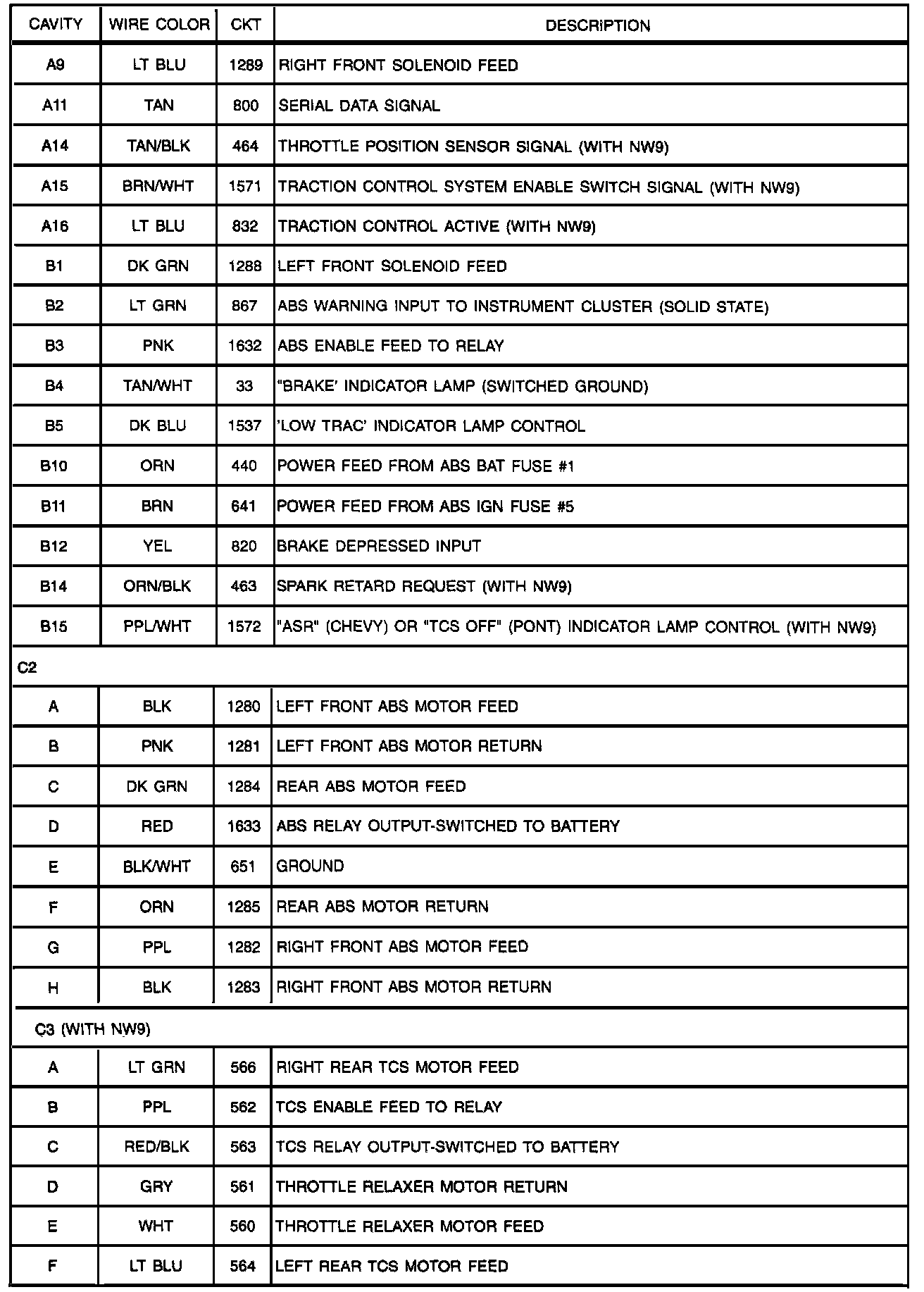

Wire Color And Description:
