Air Bag Control Module
Air Bag Control Module

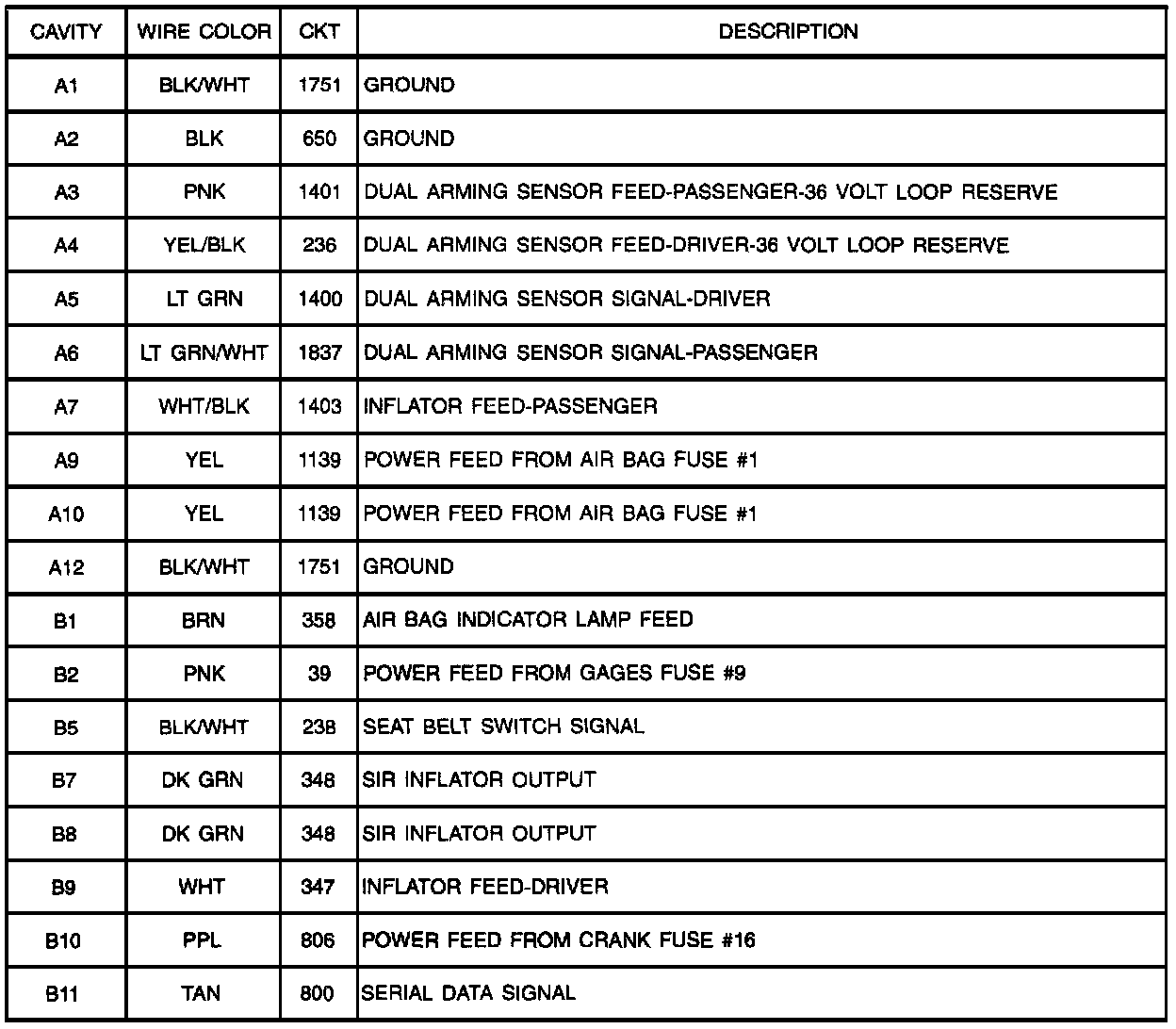

Wire Color And Description:
Connector View: Diagnostic Energy Reserve Module (DERM):
