Home >> Chevrolet >> 1995 >> Beretta L4-2.2L VIN 4 >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Fuse

Fuse

Front View Of Fuse Block:

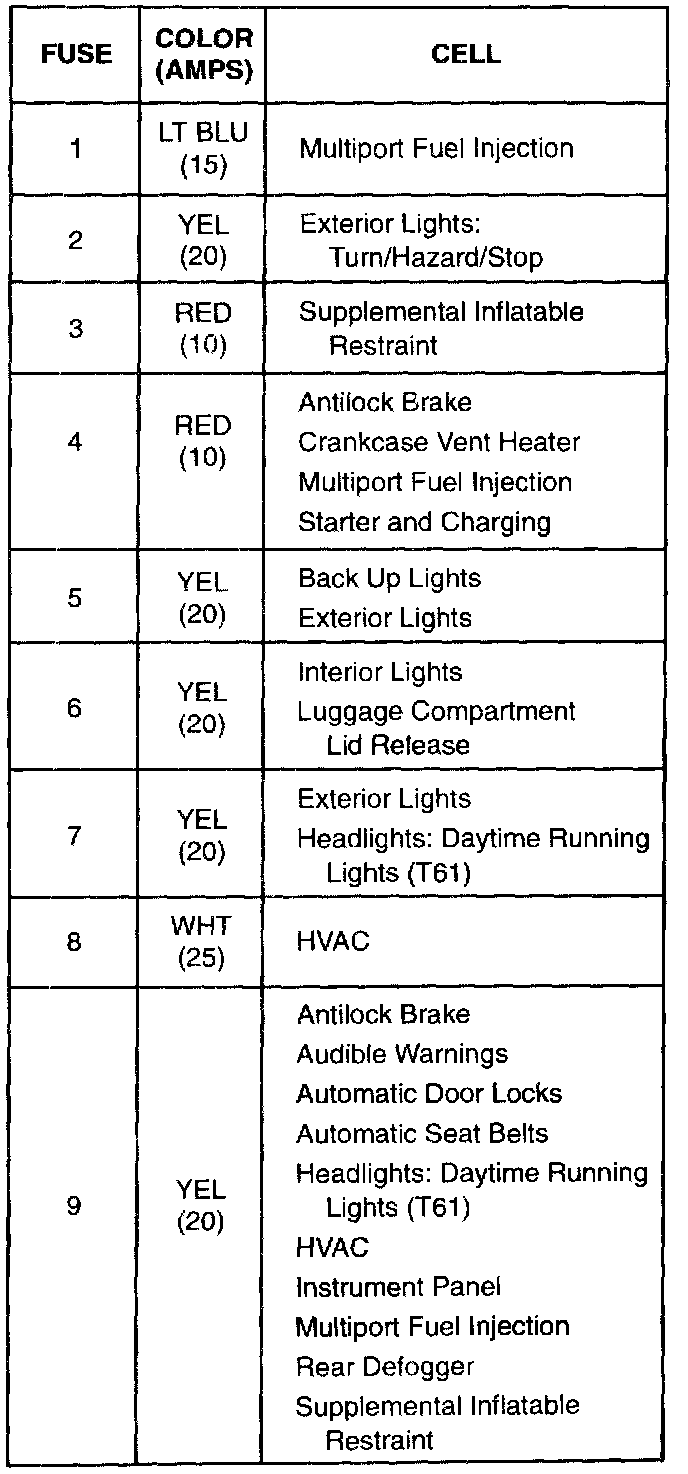

Fuse, Color, Rating And Cell Details:

Fuse, Color, Rating And Cell Details:
