Home >> Chevrolet >> 1995 >> Beretta L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

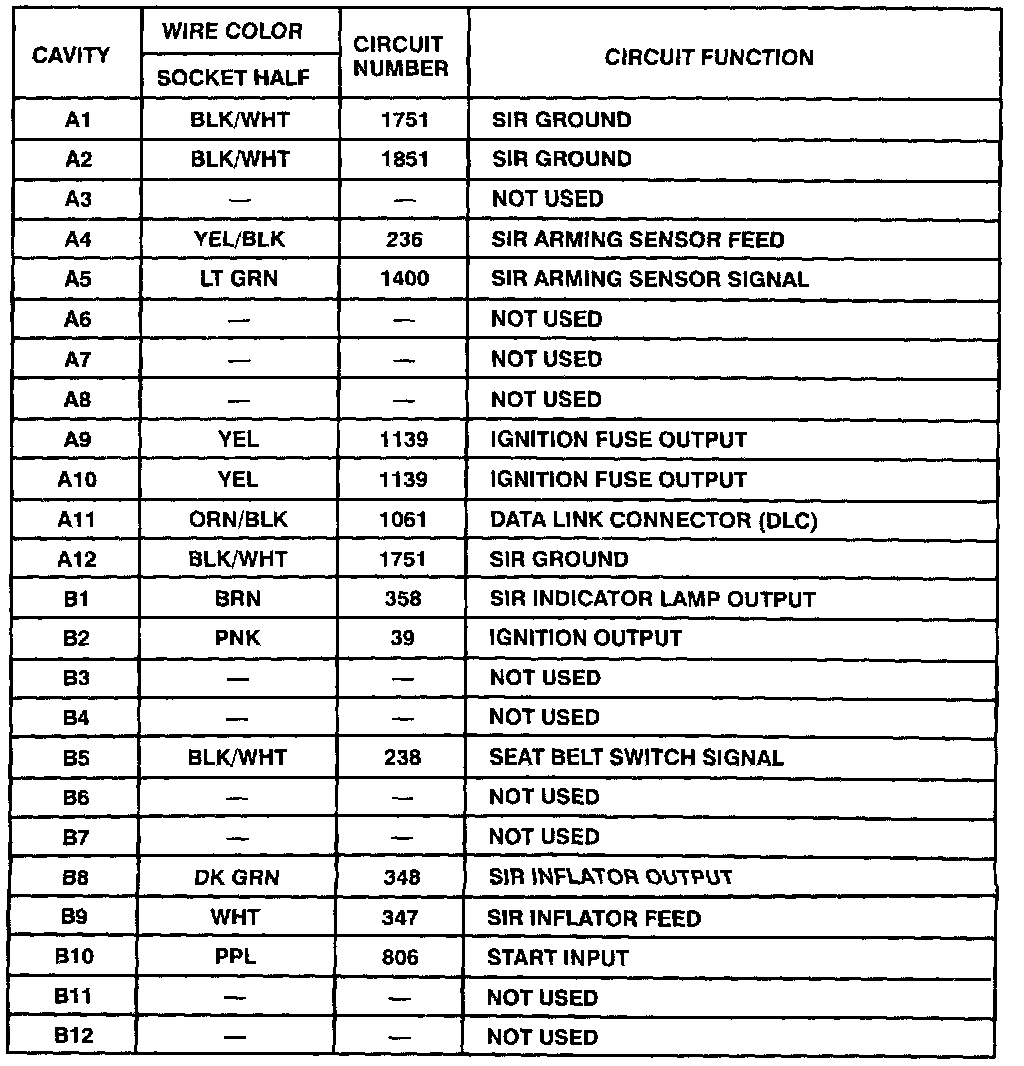

Air Bag Control Module

Diagnostic Energy Reserve Module (DERM):



Diagnostic Energy Reserve Module (DERM):
