Home >> Chevrolet >> 1994 >> G 10 Van V8-350 5.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> C311 (Red)

C311 (Red)

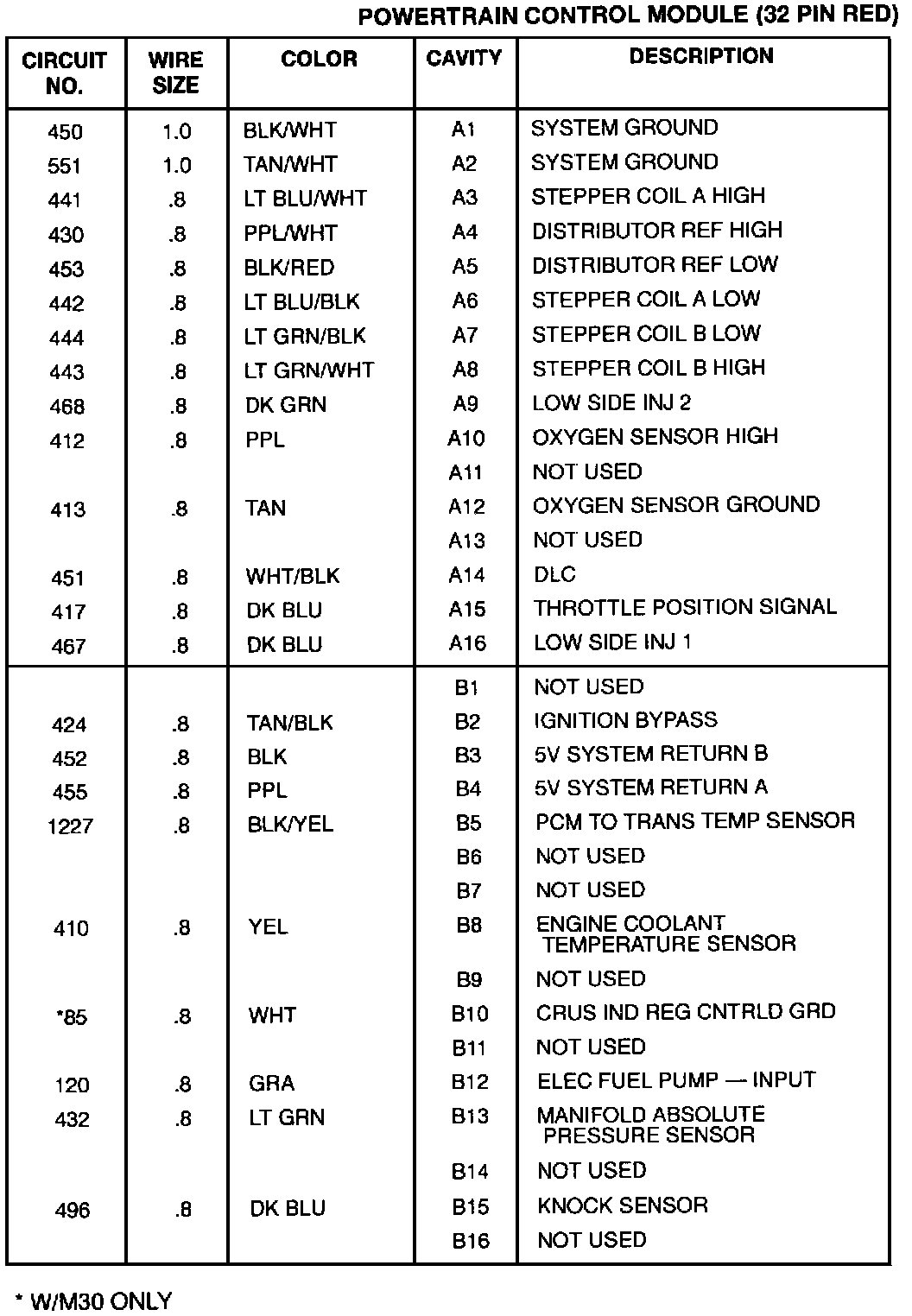

Powertrain Control Module: C311:



Powertrain Control Module: C311:
