Home >> Chevrolet >> 1994 >> G 10 Van V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Malfunction Indicator Lamp Driver Module

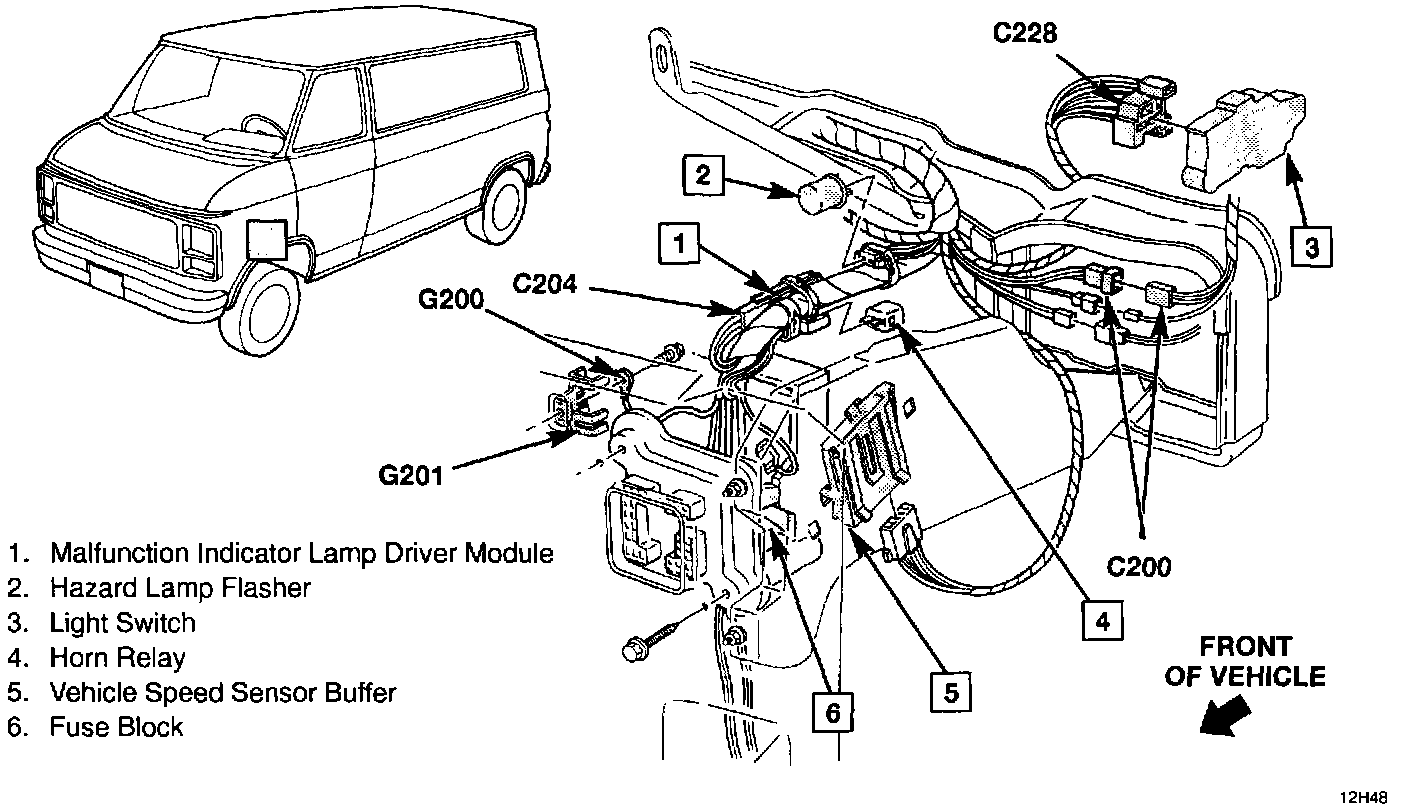

Malfunction Indicator Lamp Driver Module

I/P Harness And Controls:
