Home
>>
Chevrolet
>>
1994
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Fuel Injector
Fuel Injector
Fuel Rail Installation:

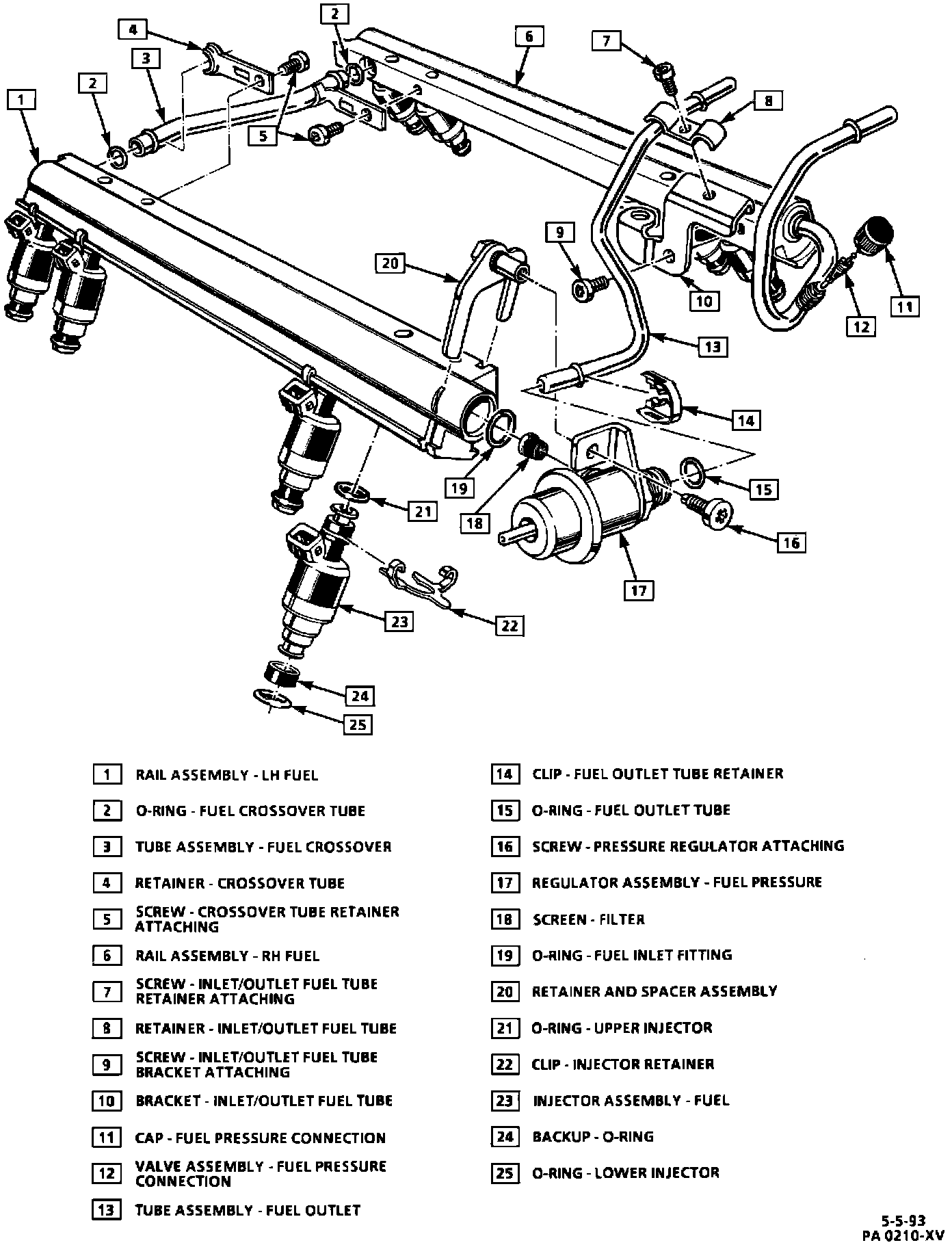

Fuel Rail (Exploded View):
