Corsica L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
C2 (Pink)
C2 (Pink)

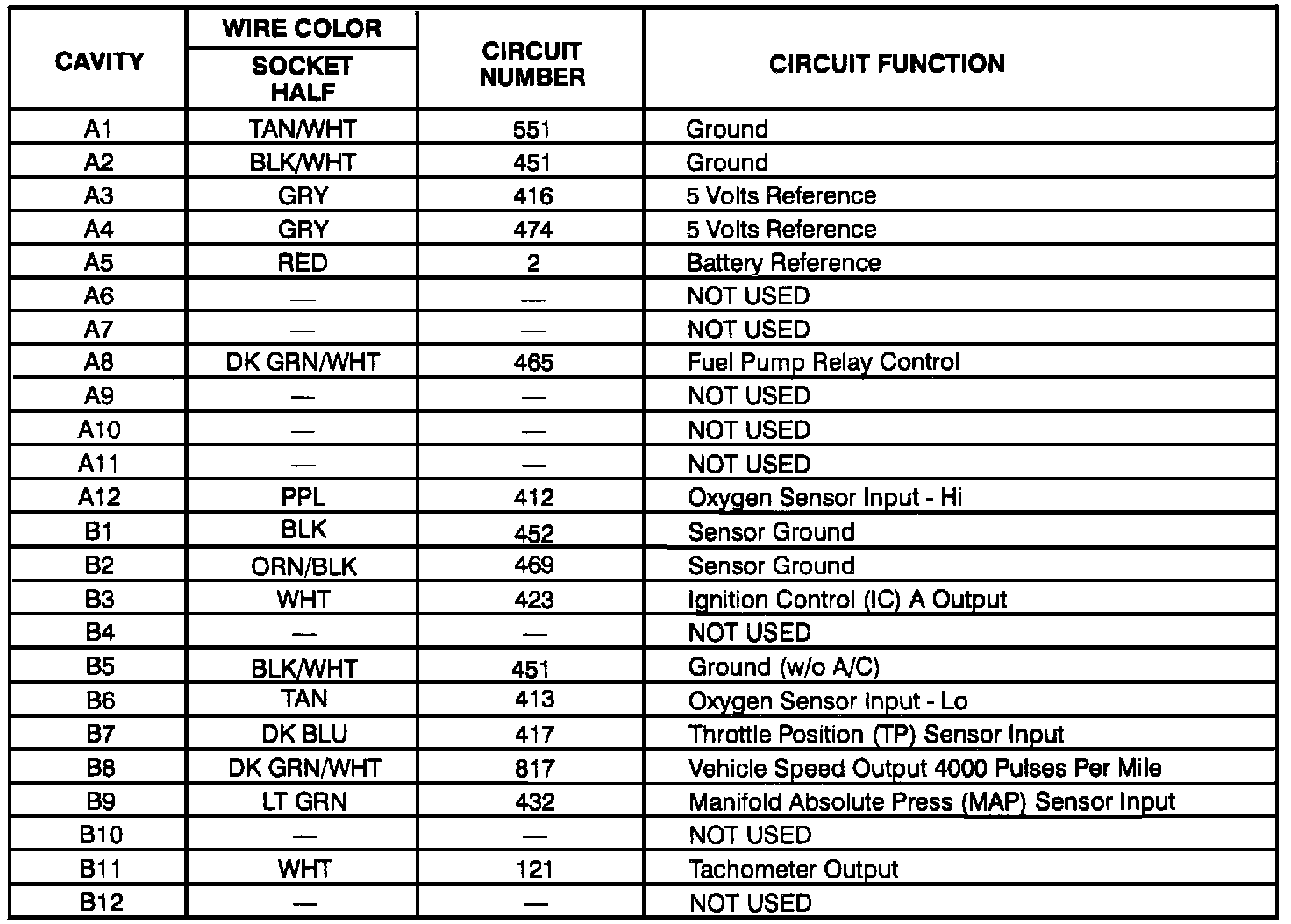

ECM Connector: C2:
ECM Connector: C2:
