Fastener Tightening Specifications - Engine Mounts

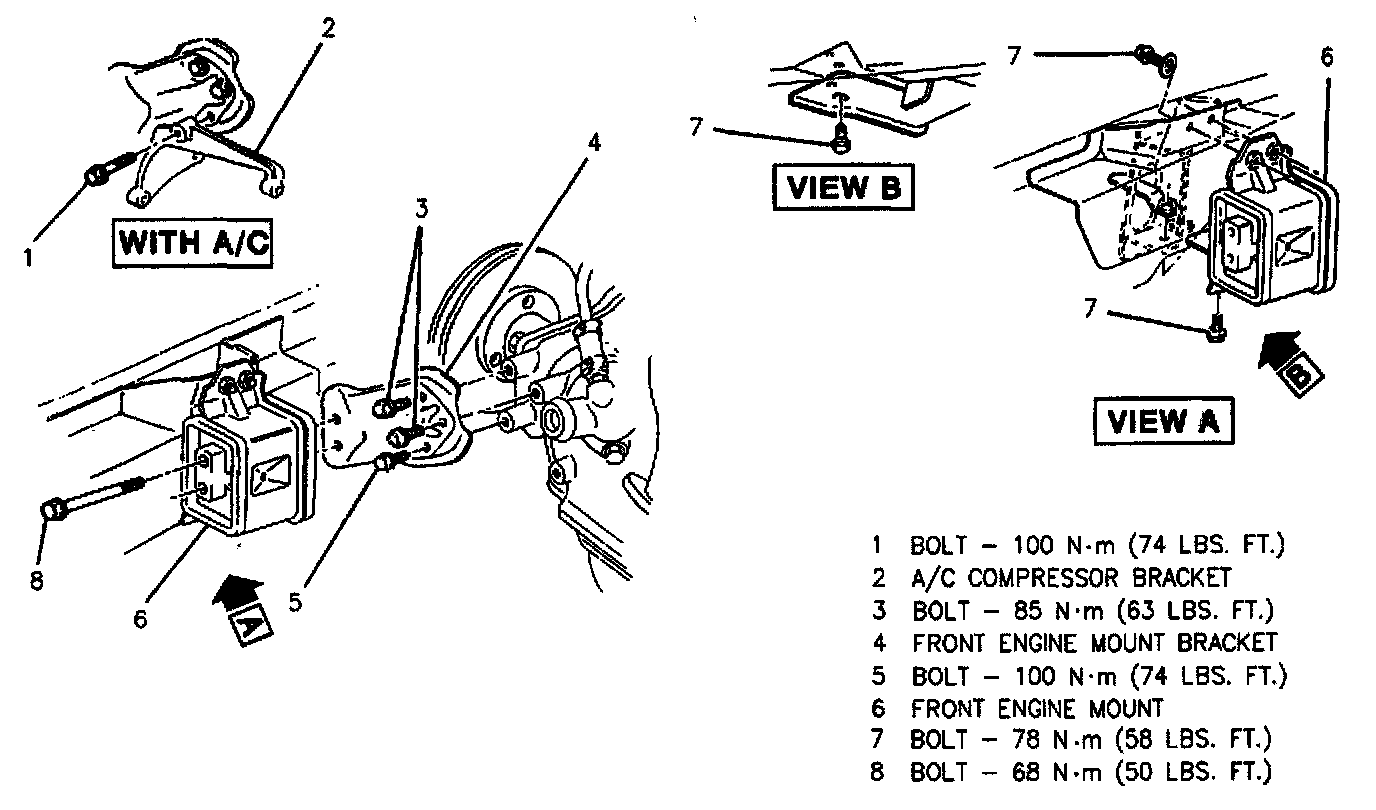

Engine Mount (Front) & Torque Specifications:

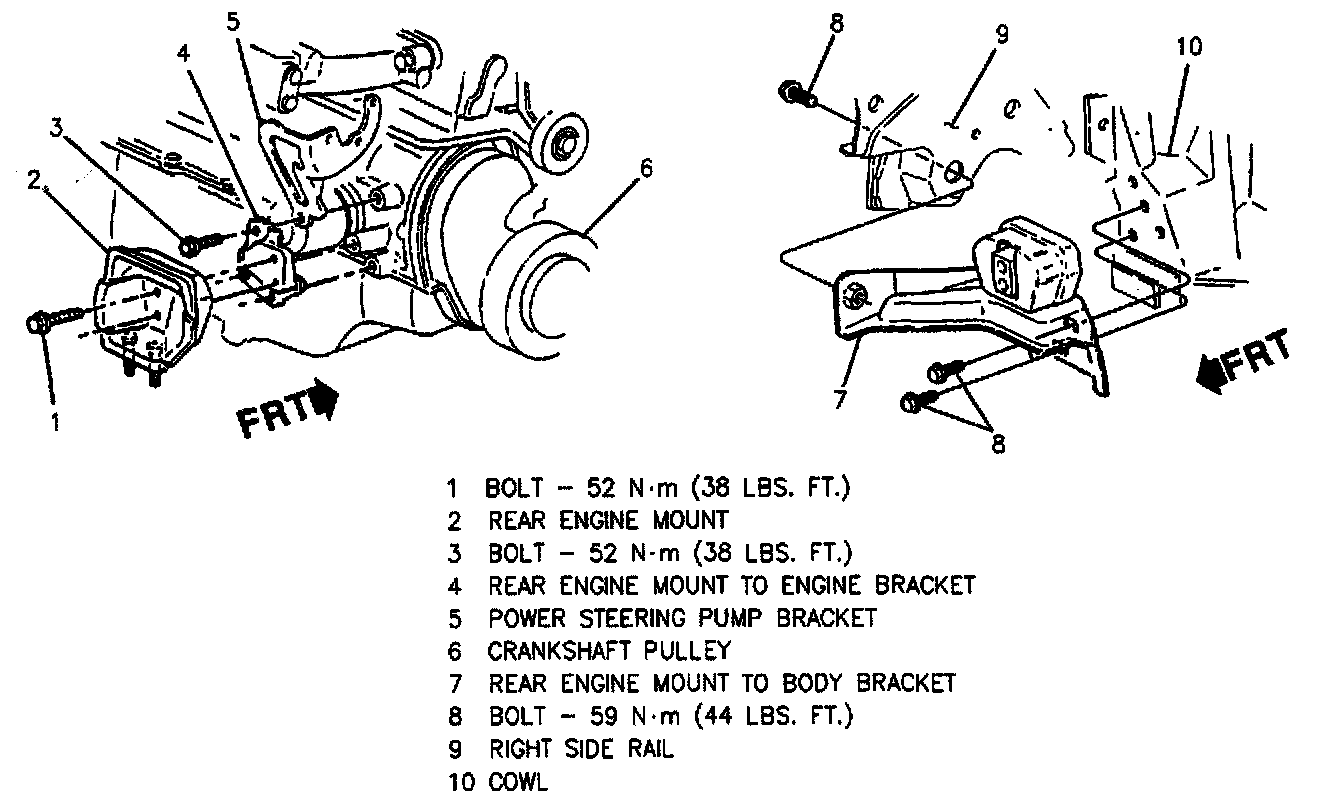

Engine Mount (Rear) & Torque Specifications:
