Home
>>
Chevrolet
>>
1994
>>
Camaro V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Systems
>>
Air Bag Control Module
Air Bag Control Module

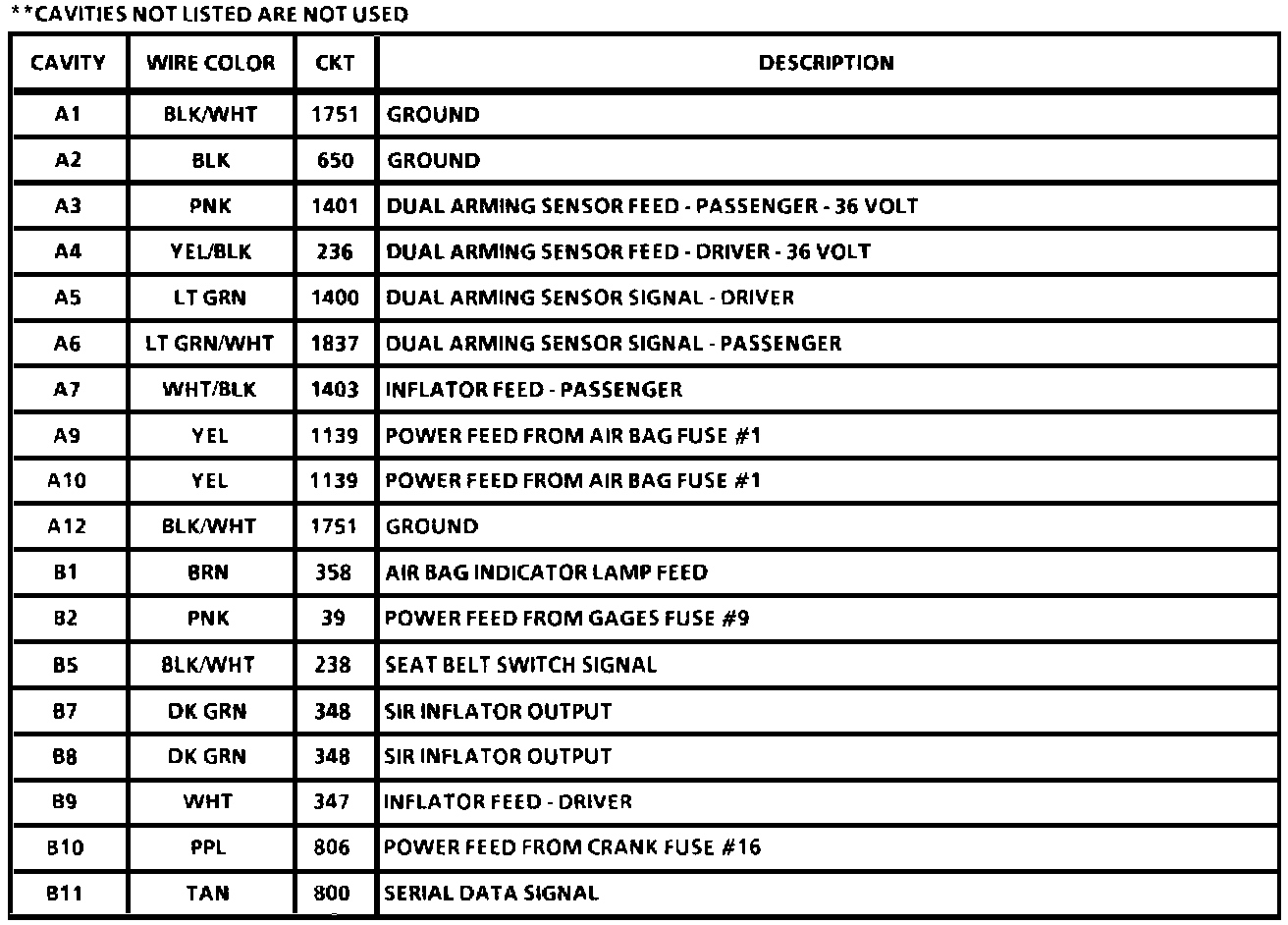

Diagnostic Energy Reserve Module (DERM):
Diagnostic Energy Reserve Module (DERM):
