Home >> Chevrolet >> 1994 >> Camaro V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Console >> Lower

Lower

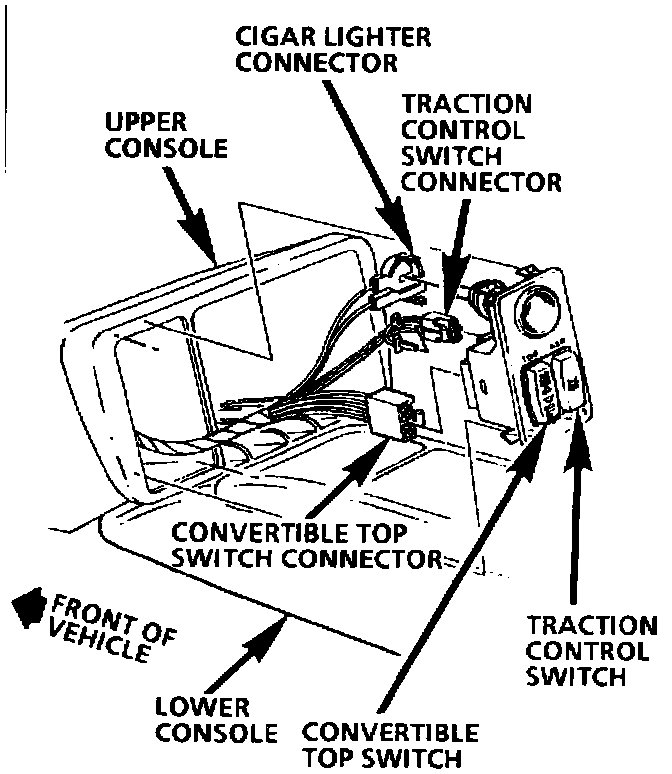

Left Side Of Upper Console:

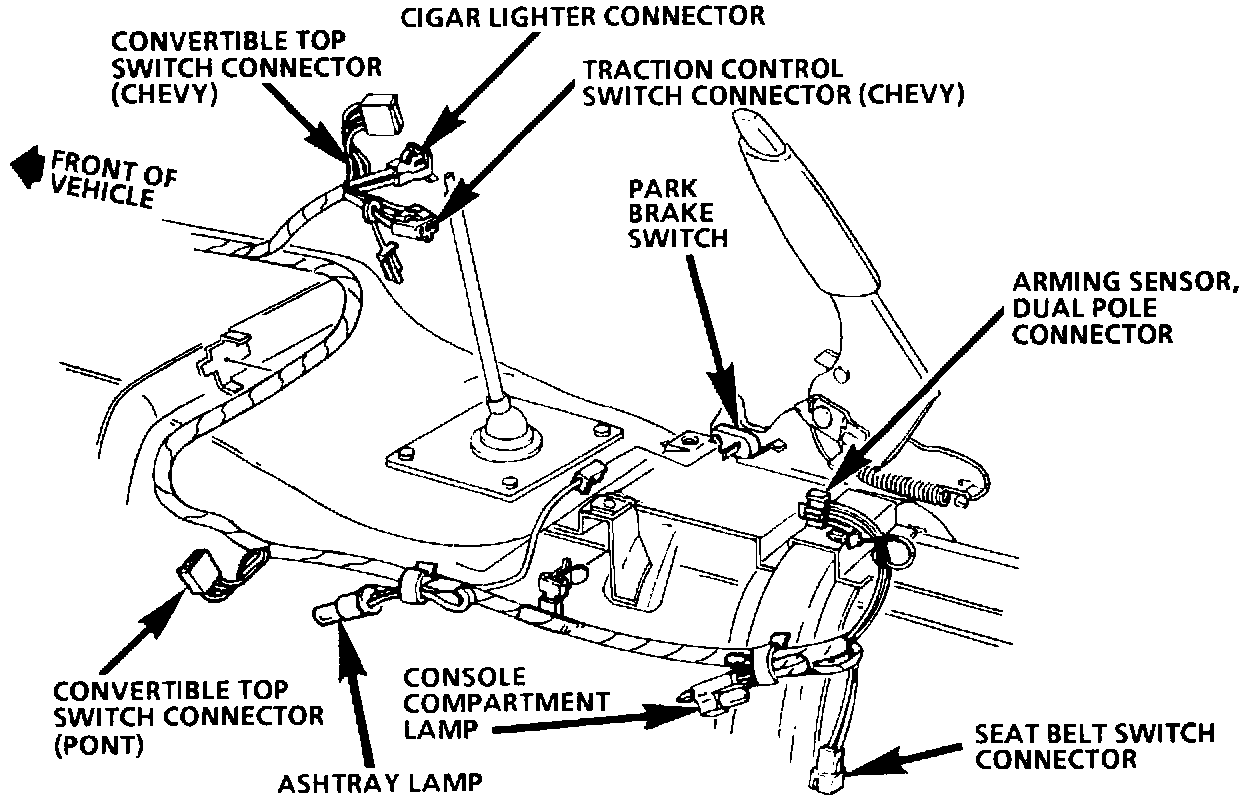

LH Side, Under Console: Automatic (M30):

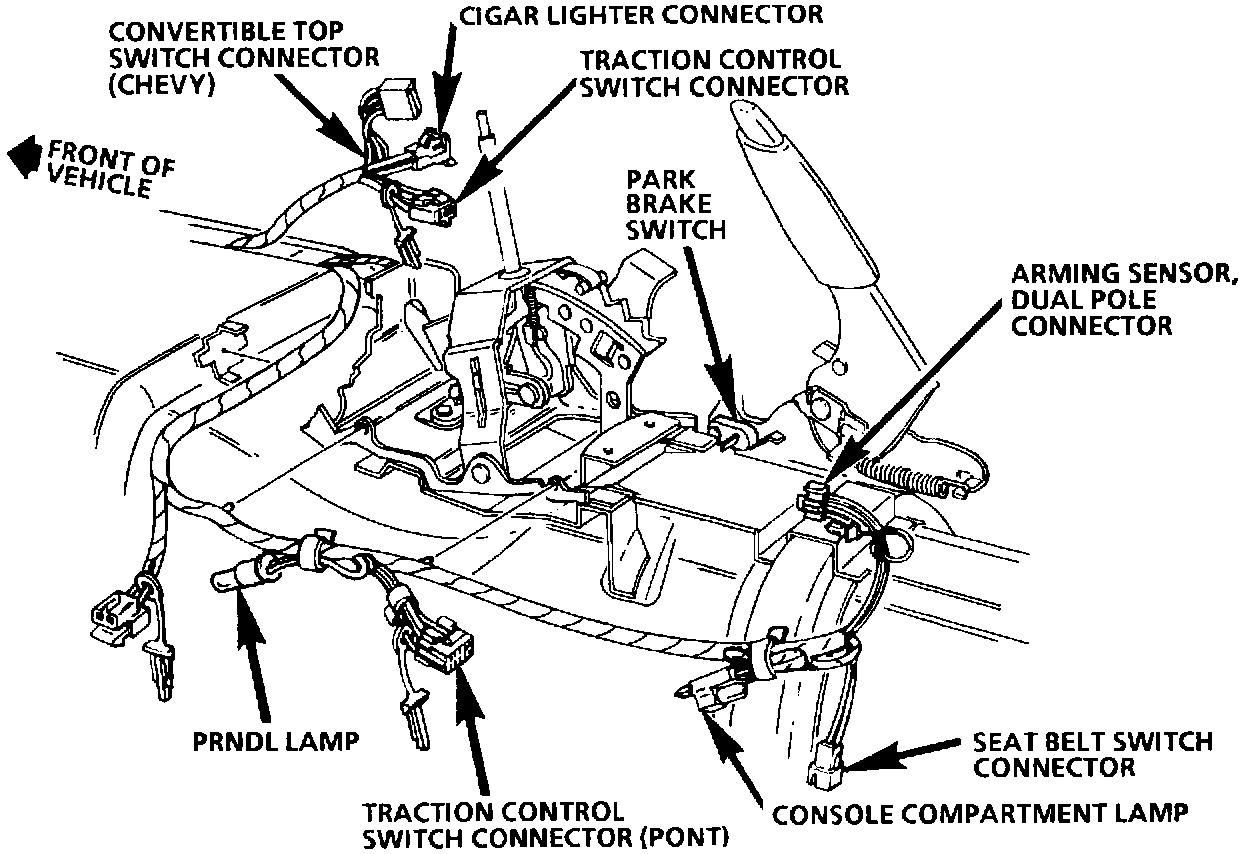

LH Side, Under Console: Manual (M49 Or MM6):
