Home >> Chevrolet >> 1994 >> Camaro V6-204 3.4L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> A/C Compressor

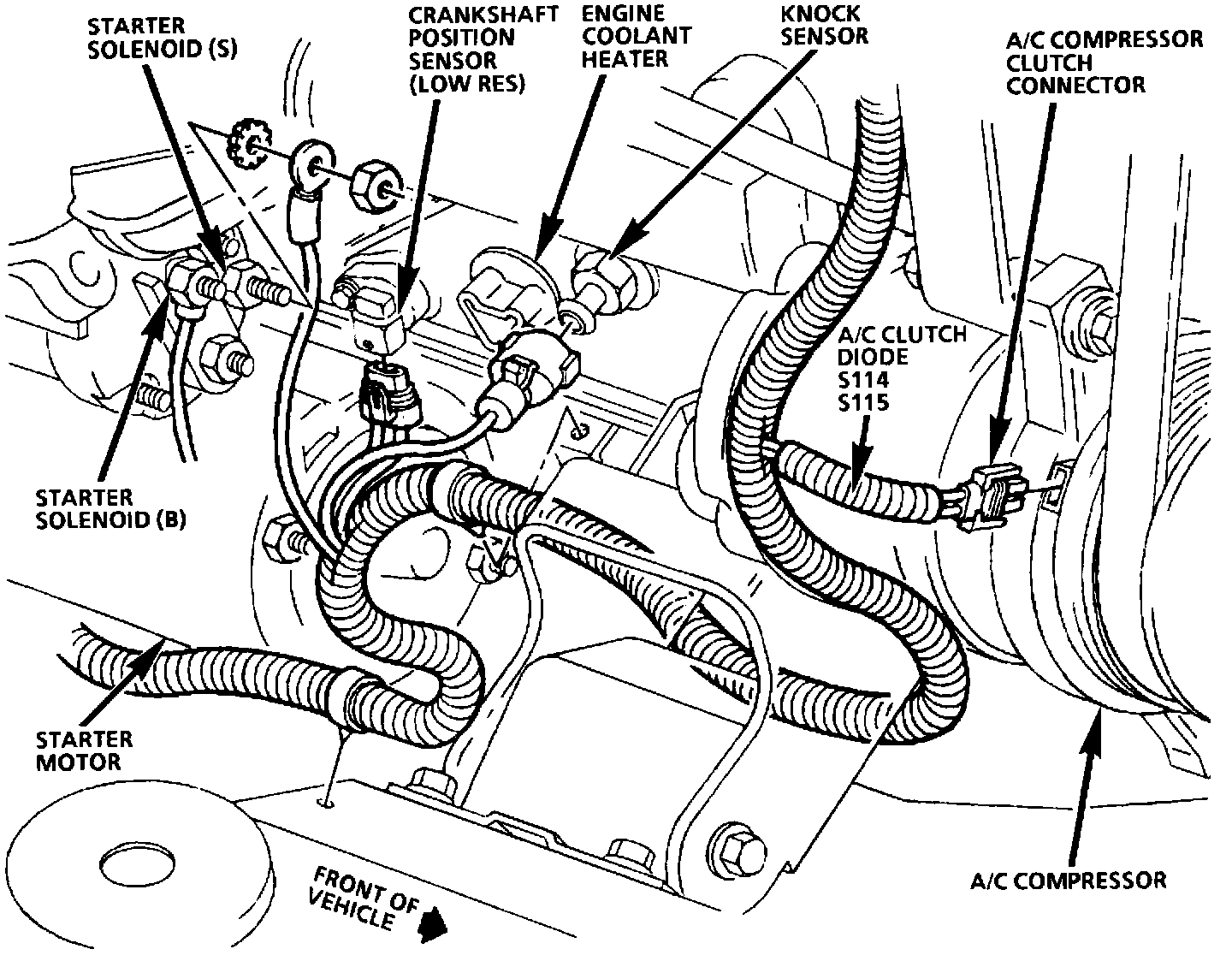

A/C Compressor

RH Side Of Engine:
