Beretta L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Harness Connector
Harness Connector

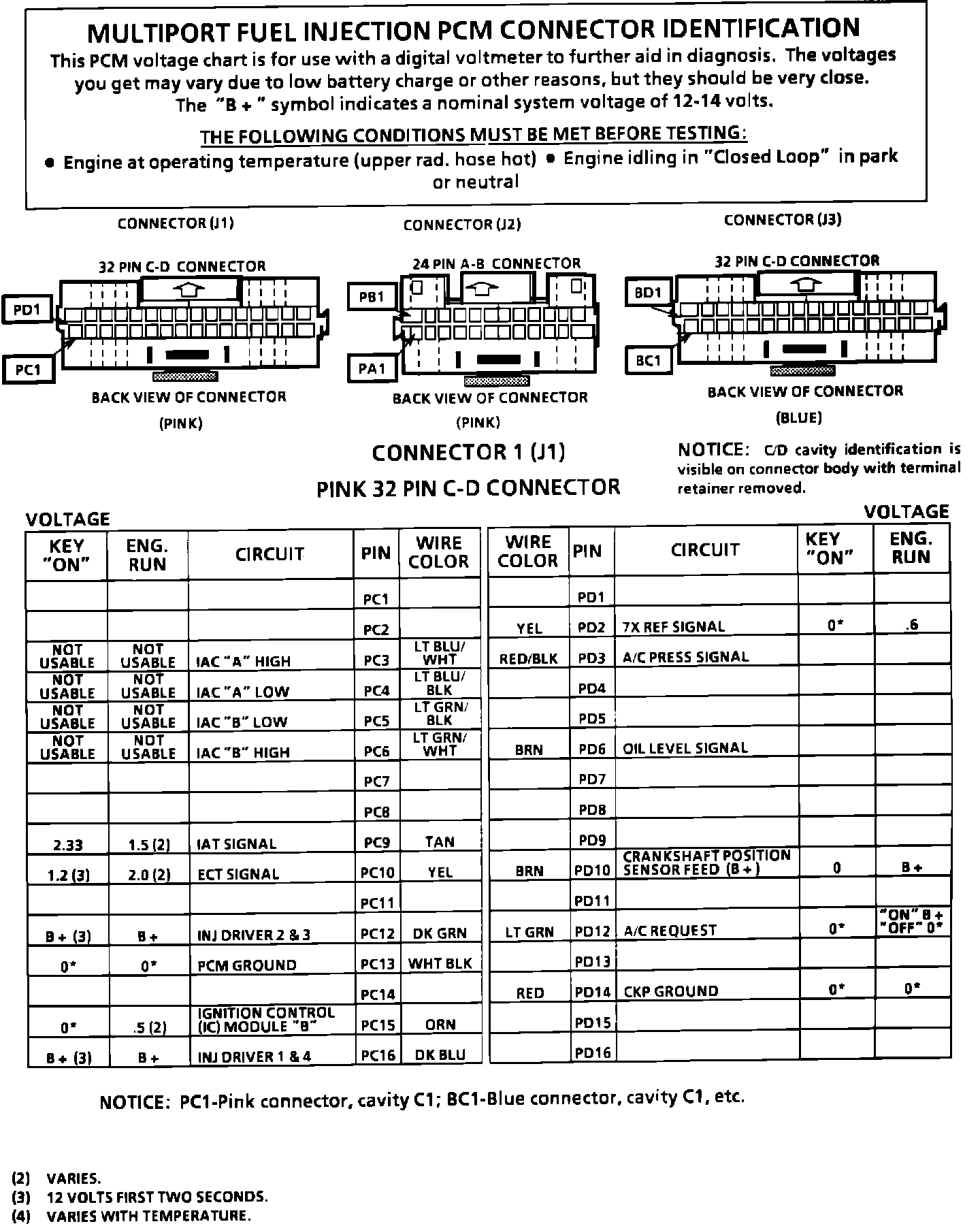

PCM Connector Pin-Out:

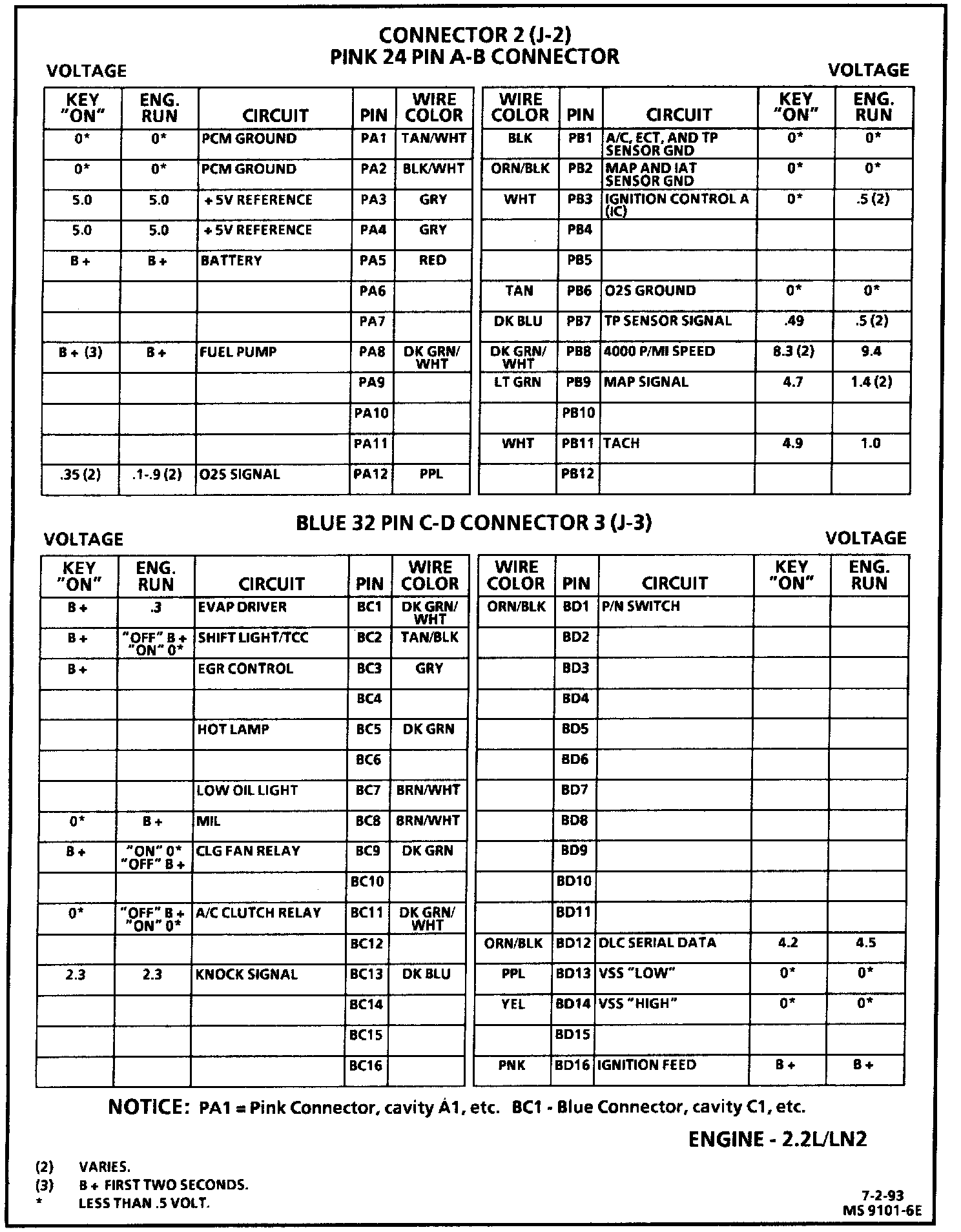

PCM Connector Pin-Out:
PCM Connector Terminal End View:
PCM Connector Terminal End View:
