Home >> Chevrolet >> 1993 >> Lumina L4-134 2.2L >> Repair and Diagnosis >> Cruise Control >> Cruise Control Servo >> Testing and Inspection

Cruise Control Servo: Testing and Inspection

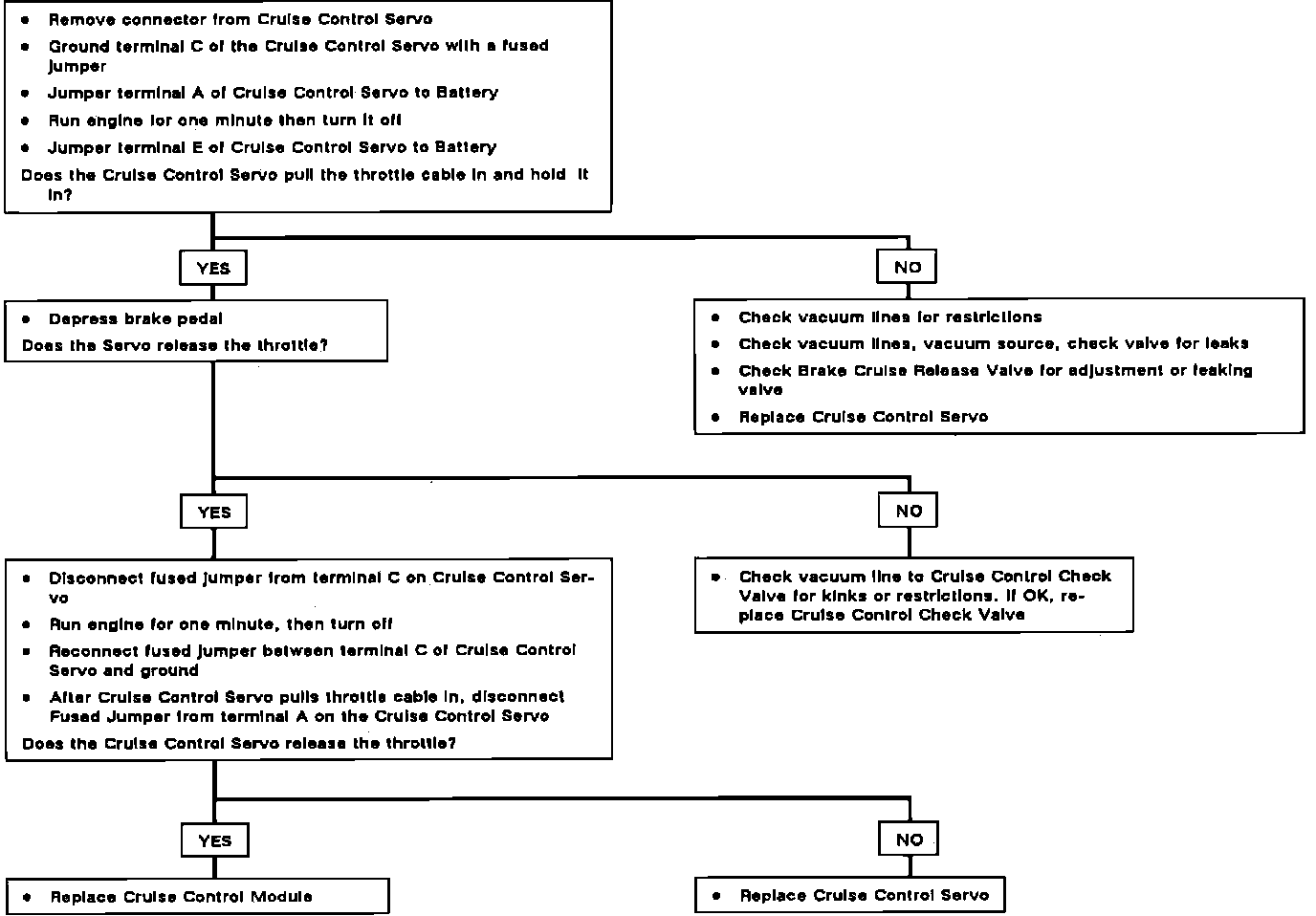

Fig. 45 Cruise Control System Test ``O,'' Servo Actuation Test:
