Home >> Chevrolet >> 1993 >> G 20 Van V8-379 6.2L DSL >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams

Transmission Control Systems: Diagrams

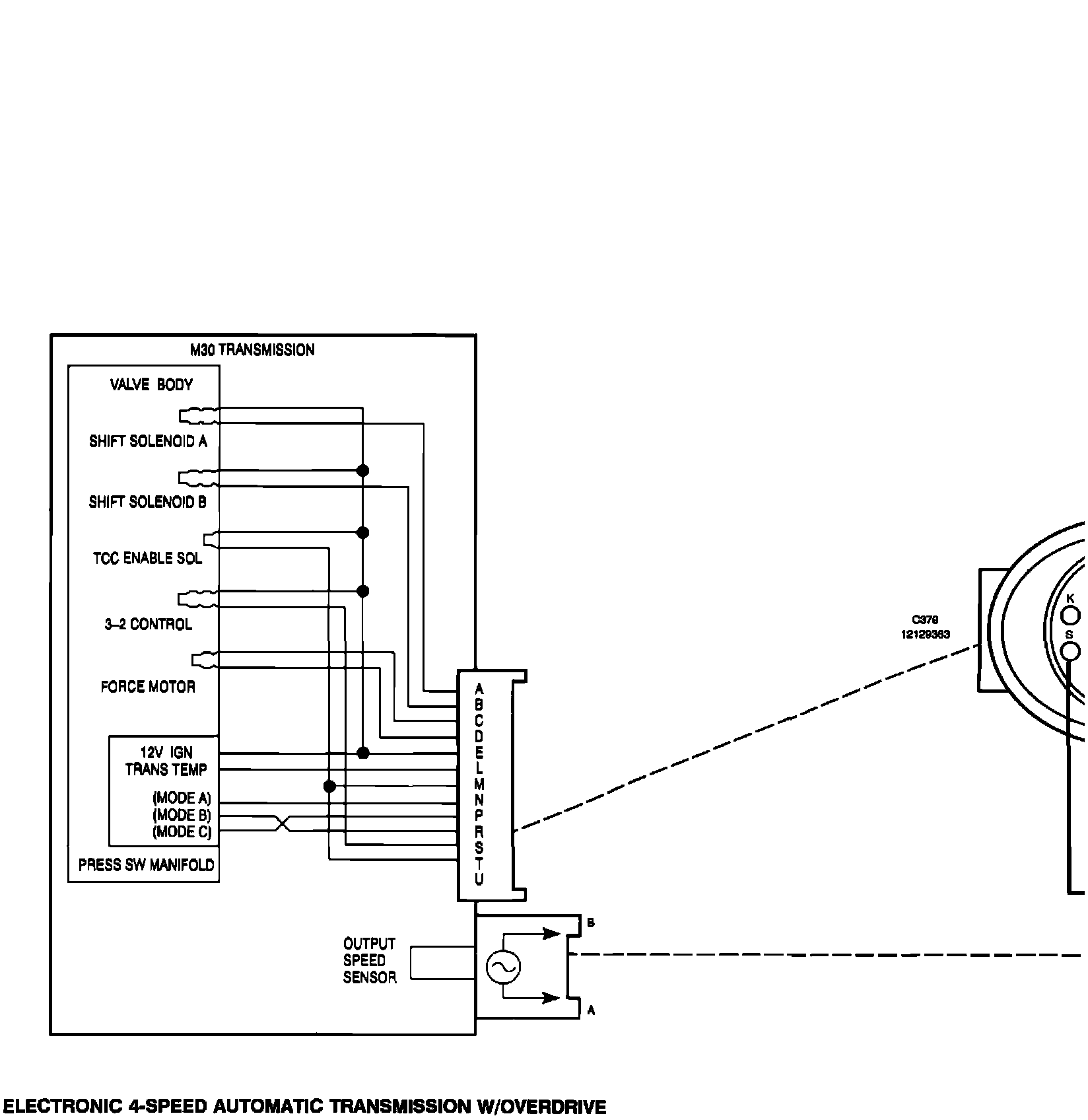

��"Transmission 4-Speed Automatic Overdrive:

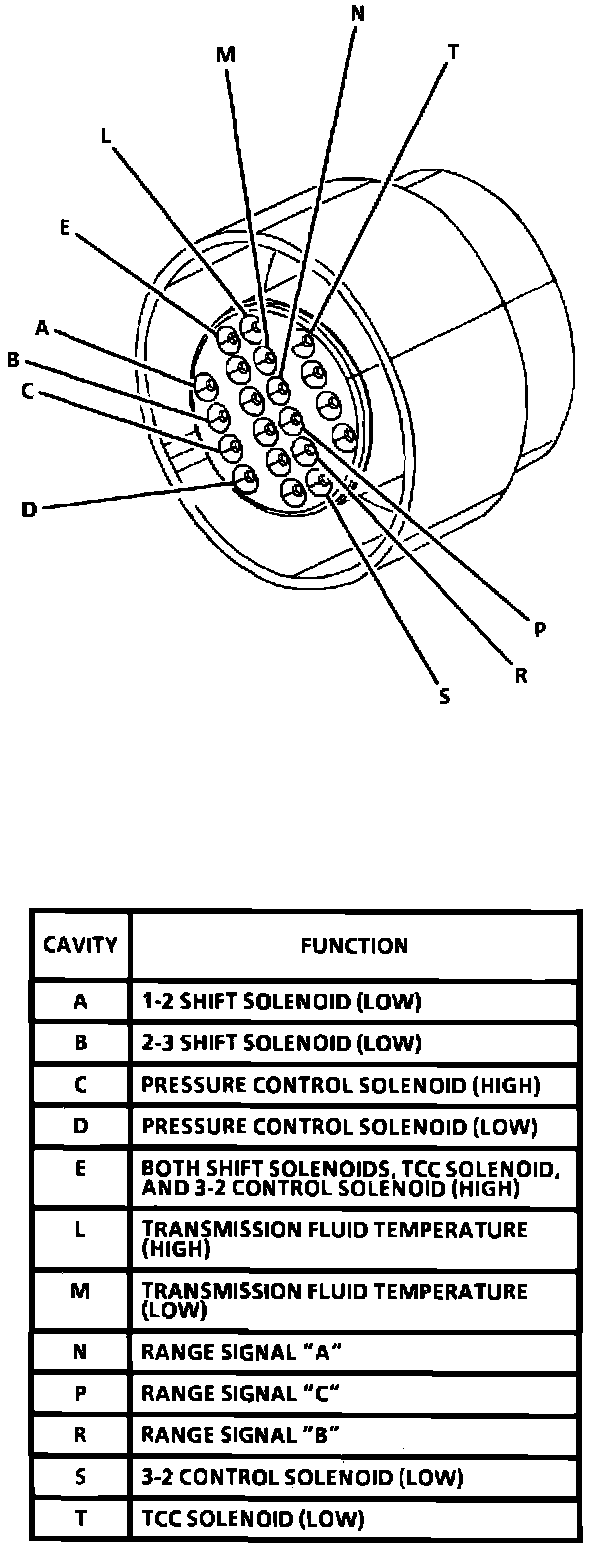

Harness Connector:
