With 4L60-E Transmission

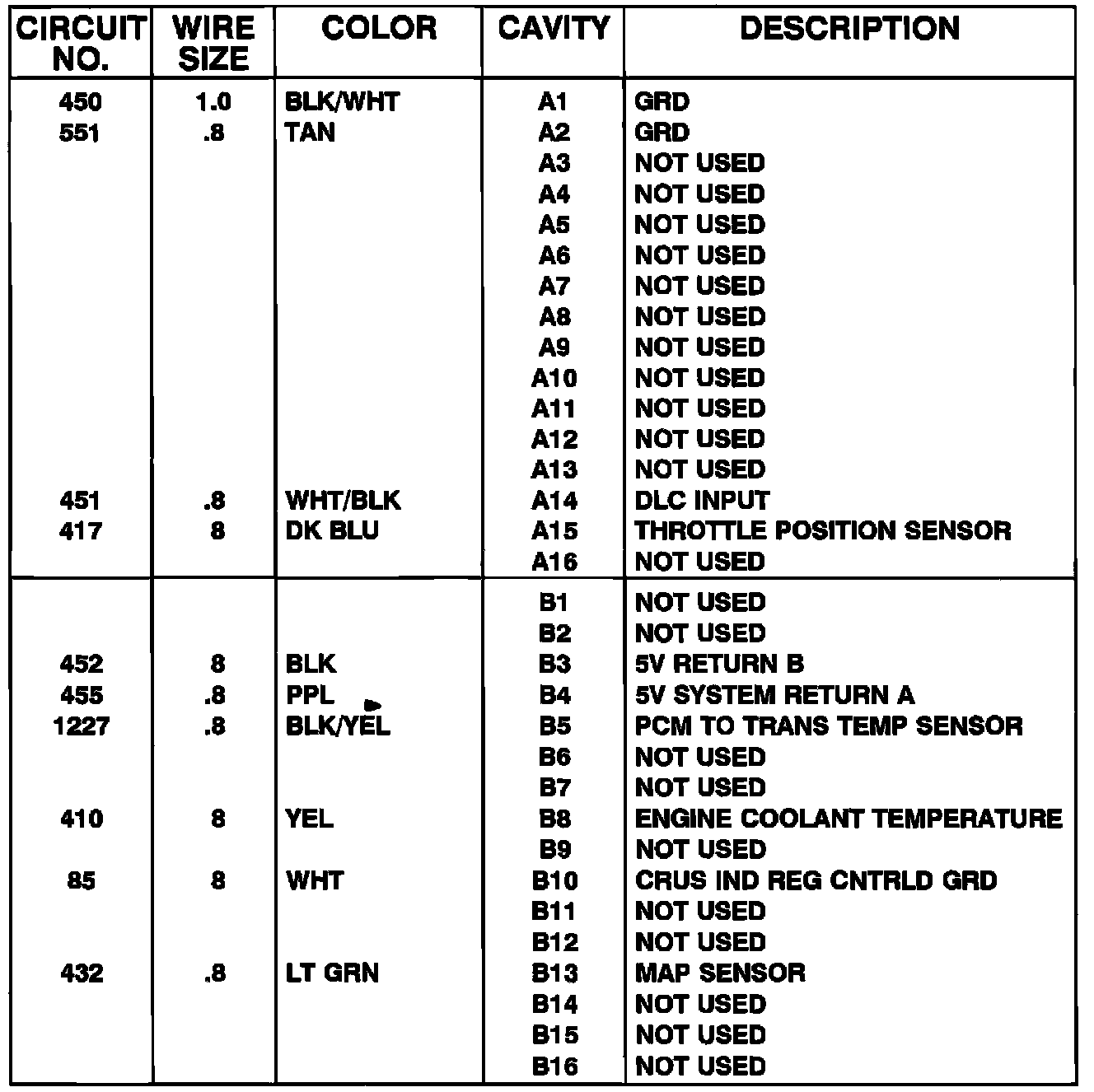

Powertrain Control Module Pinouts - W/4 Speed Automatic Overdrive Transmission - Diesel Engines:

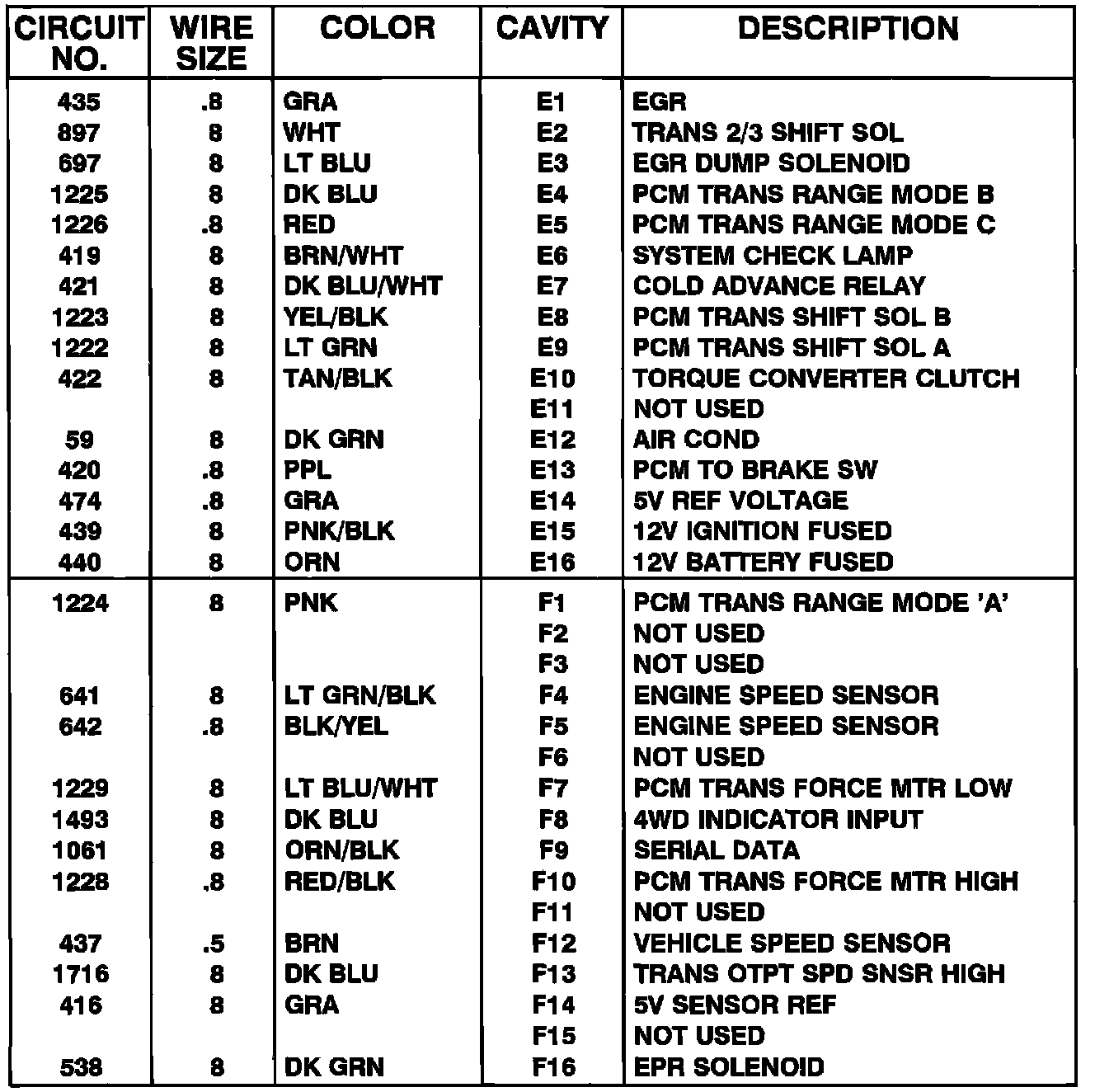

Powertrain Control Module Pinouts - W/4 Speed Automatic Overdrive Transmission - Diesel Engines:
