Home >> Chevrolet >> 1993 >> G 20 Van V8-379 6.2L DSL >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

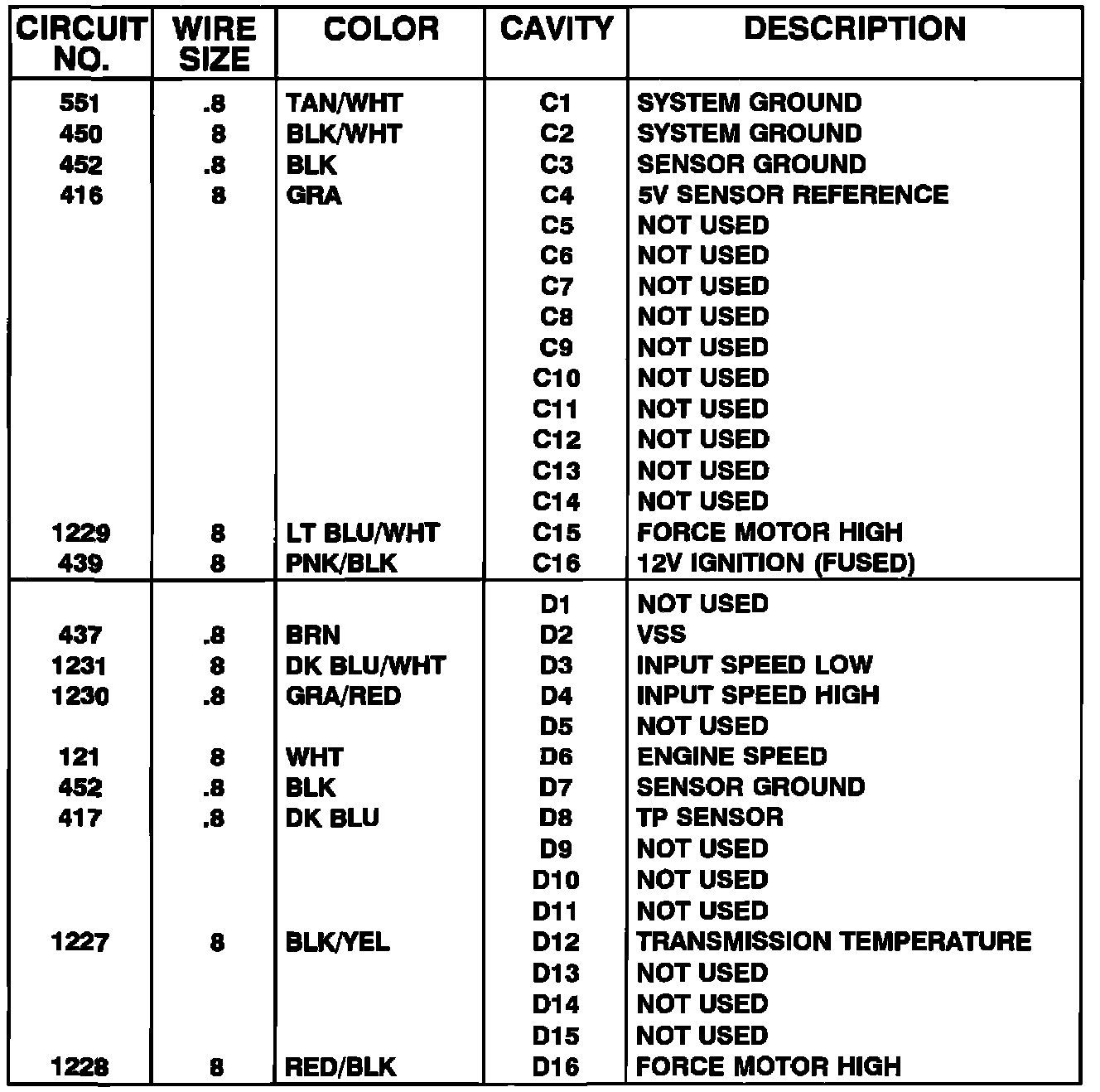

Transmission Control Module Pinouts - W/HD 4 Speed Automatic Overdrive Transmission And HD Diesel Engines:

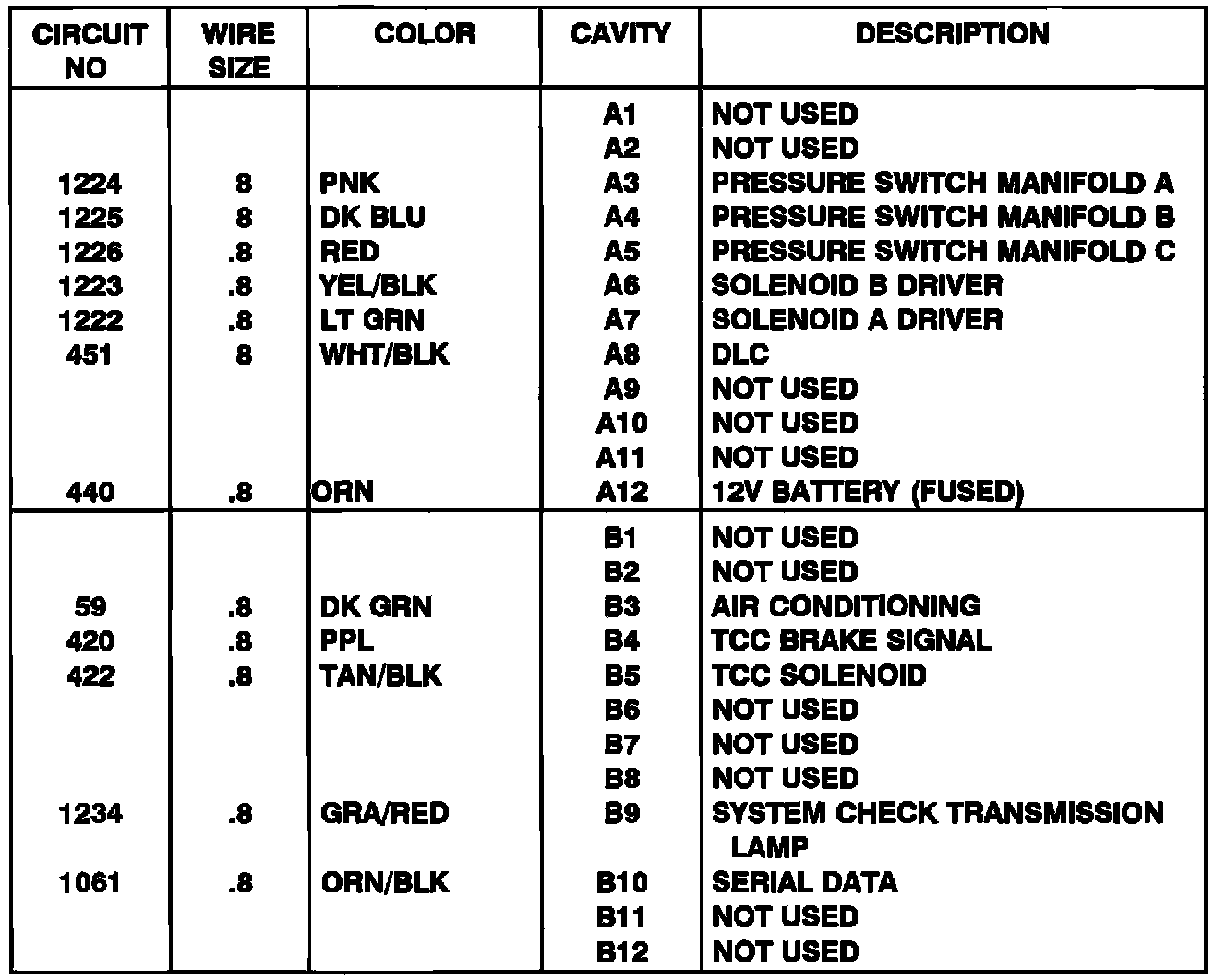

Transmission Control Module Pinouts - W/HD 4 Speed Automatic Overdrive Transmission And HD Diesel Engines:
