Chevrolet
>>
1993
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Seats
Seats

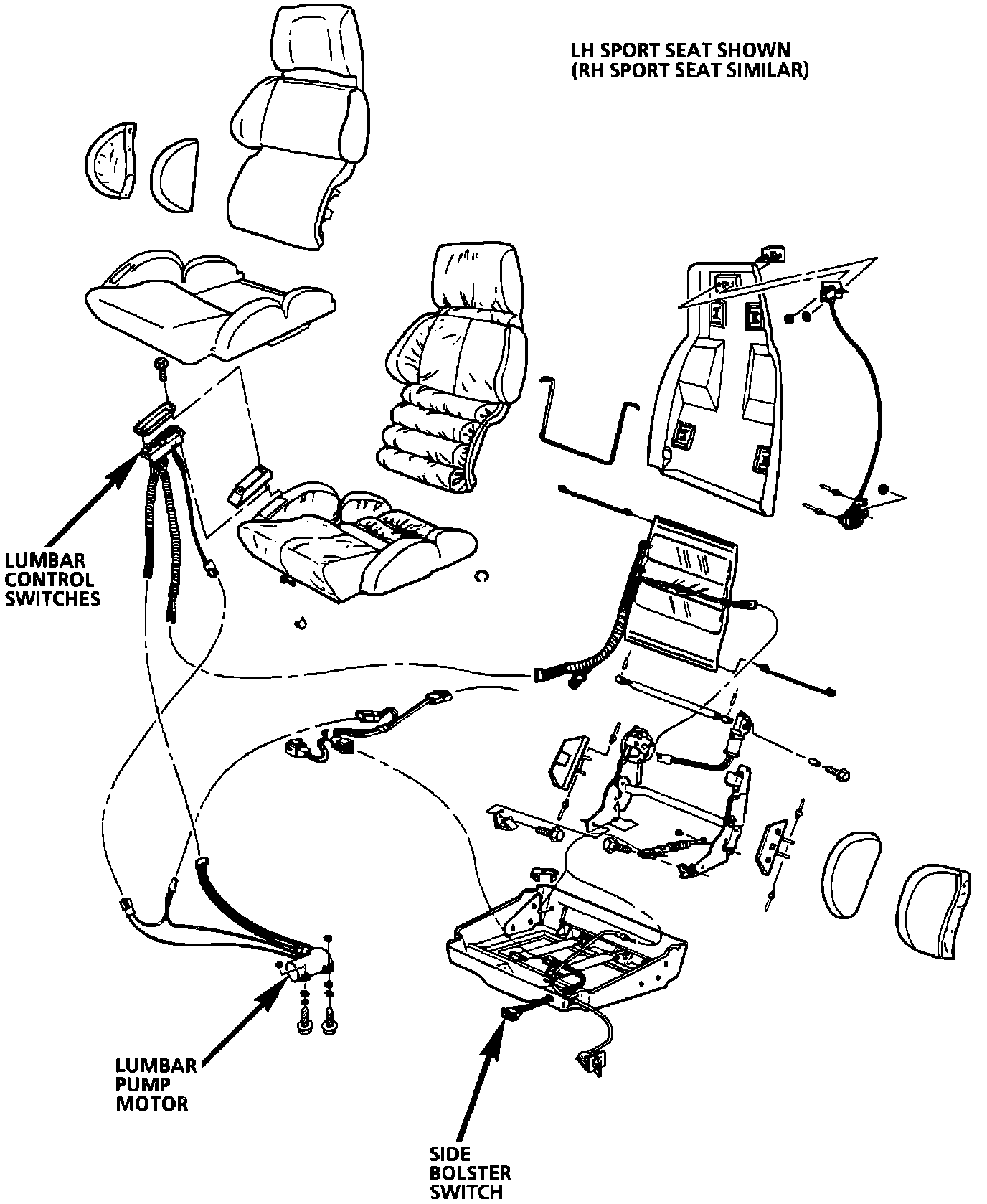

LH Seat Lumbar Support Exploded View:
