Home >> Chevrolet >> 1993 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module >> Part 2 of 6

Part 2 of 6

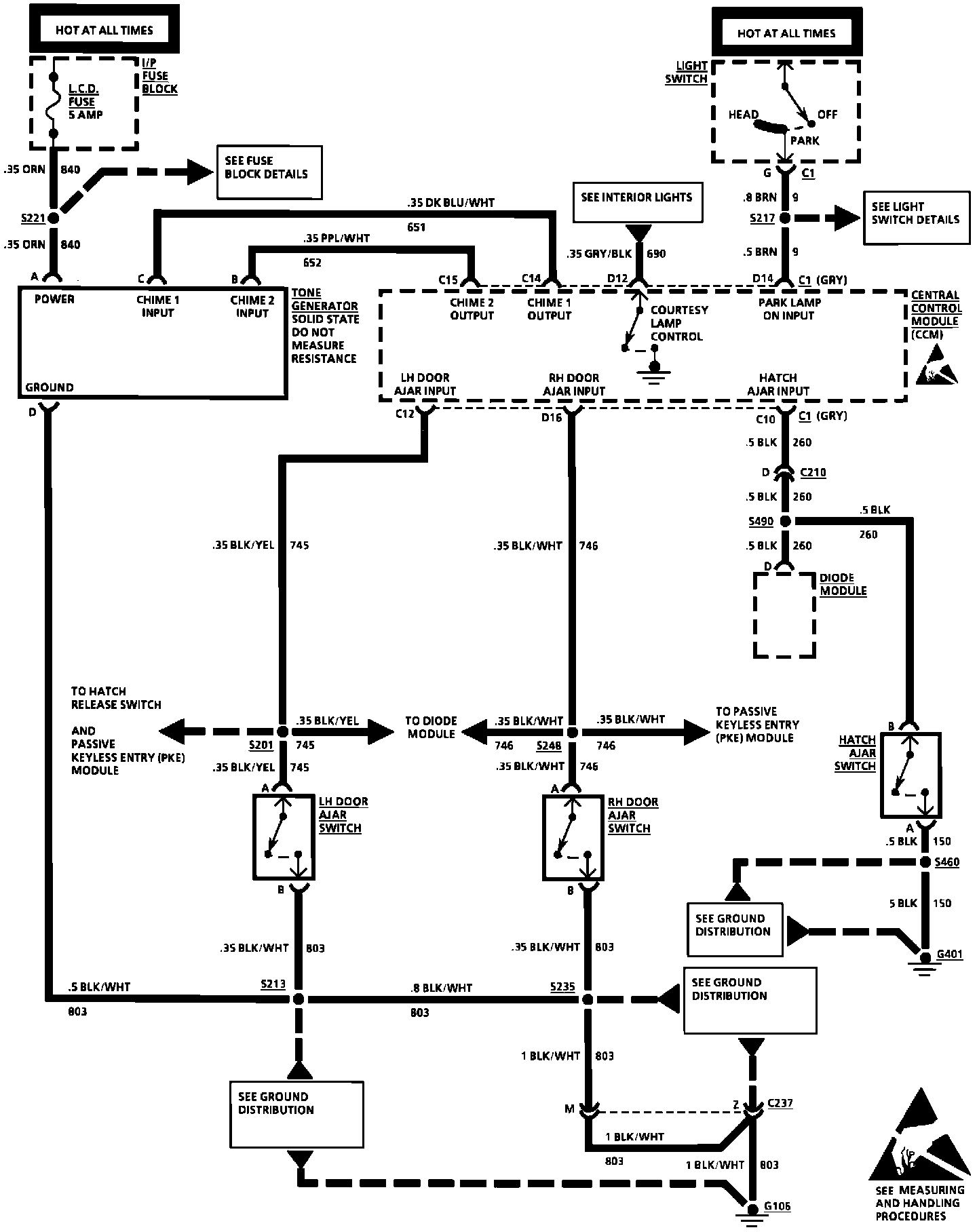

Central Control Module:
