Body & Frame
>>
Seats - Power
>>
System Testing
>>
Flow Chart 2B, Bolster Control Does Not Move In & / Or Out
Flow Chart 2B, Bolster Control Does Not Move In & / Or Out

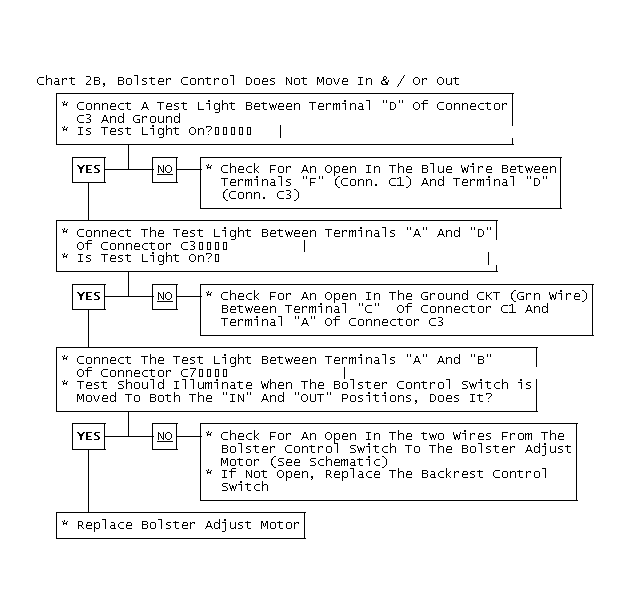

Fig 1: Chart 2B, Bolster Control Does Not Move In & / Or Out
