Home >> Chevrolet >> 1993 >> Cavalier/Z24 V6-191 3.1L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

Torque Specifications:

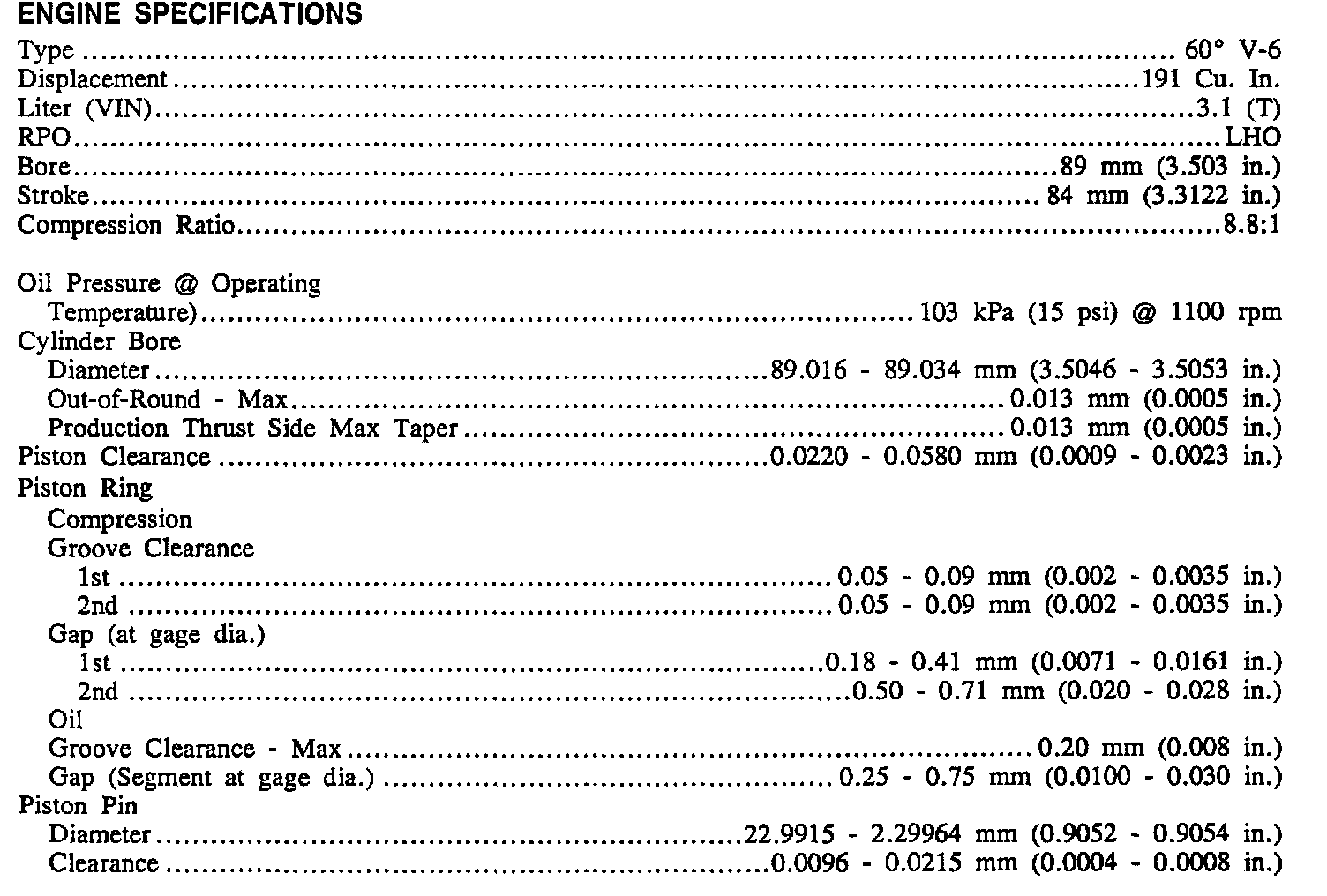

Engine Specifications:

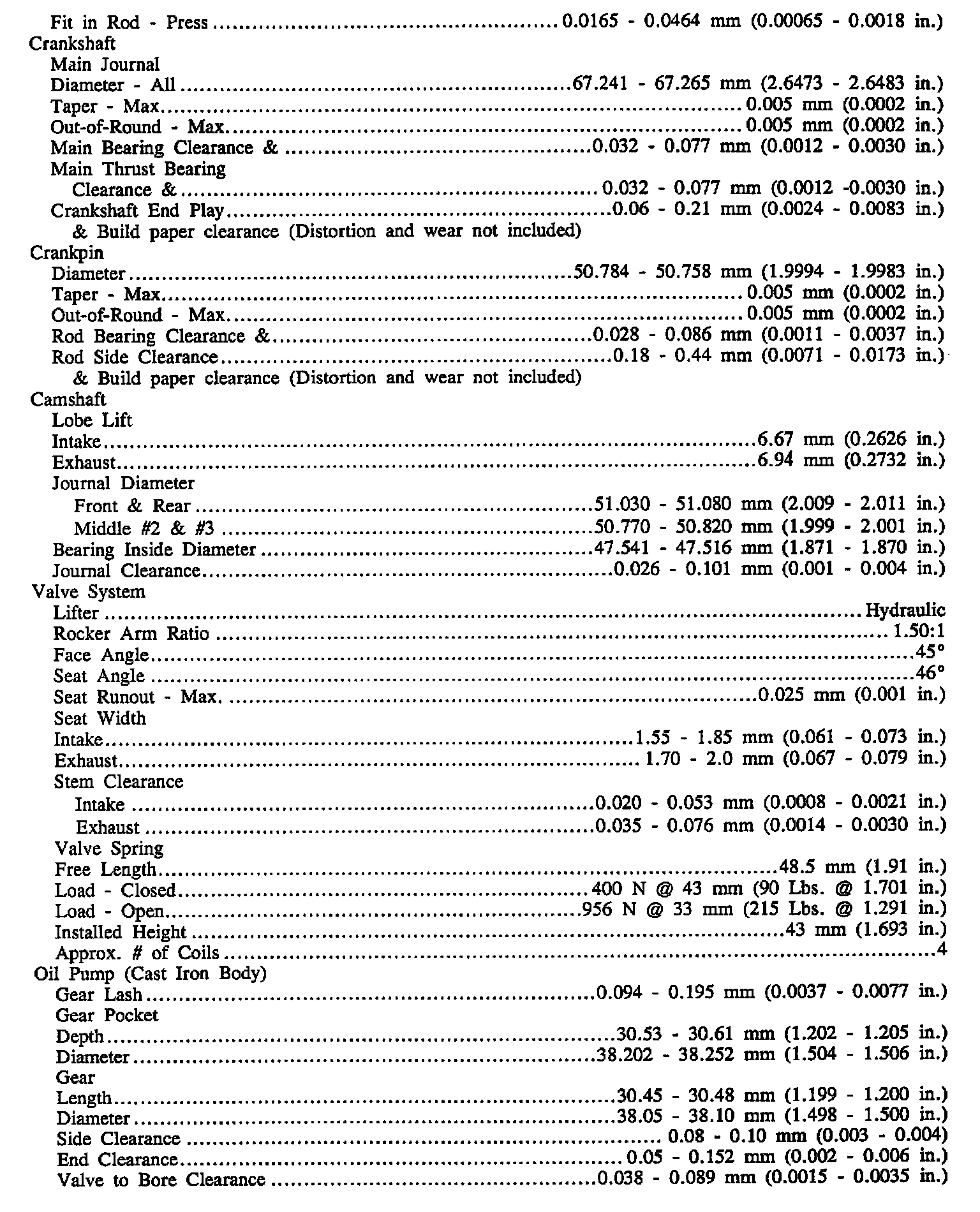

Continued Engine Specifications:

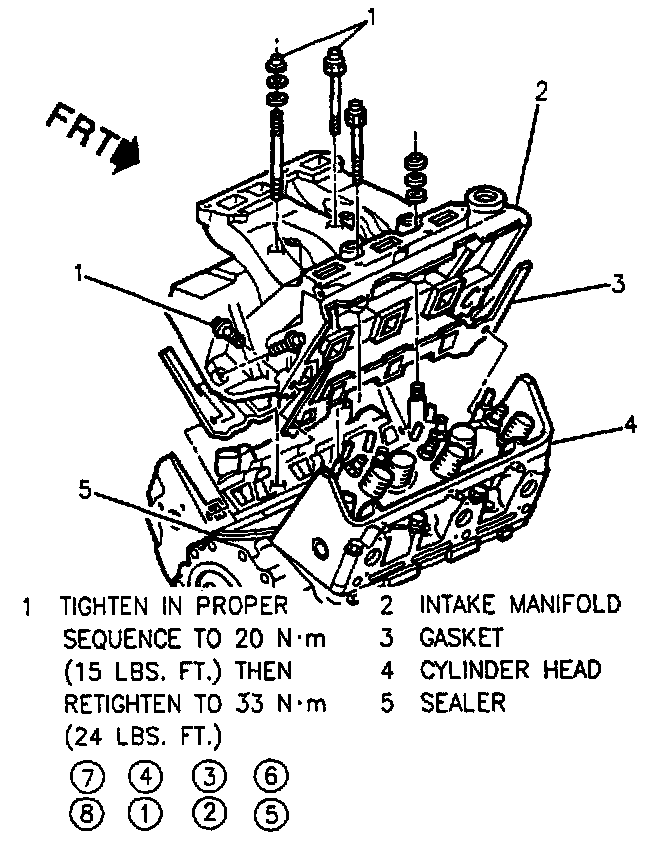

Intake Manifold Sequence:

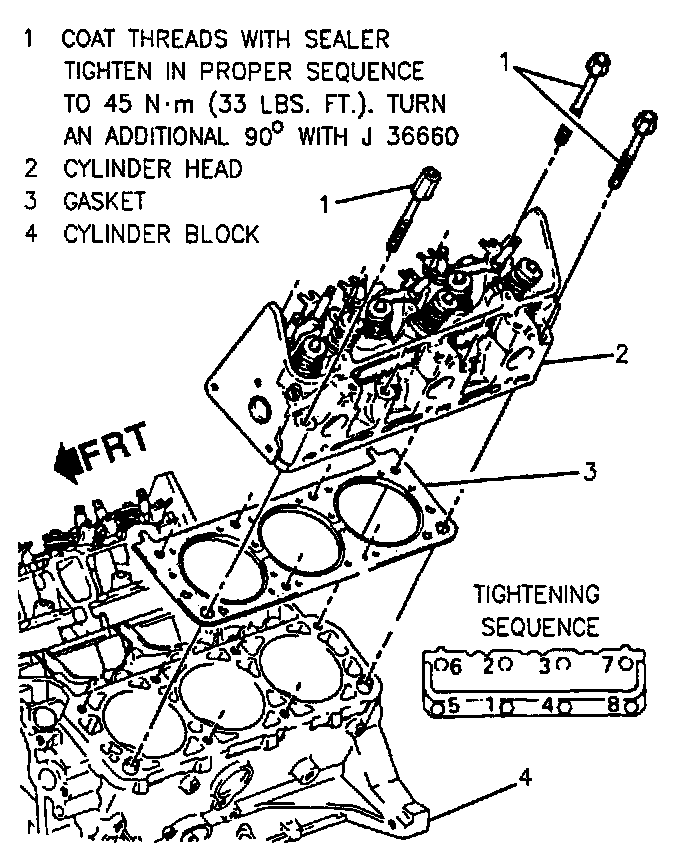

Cylinder Head Sequence:
