Home >> Chevrolet >> 1993 >> Cavalier/Z24 V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Connector C1

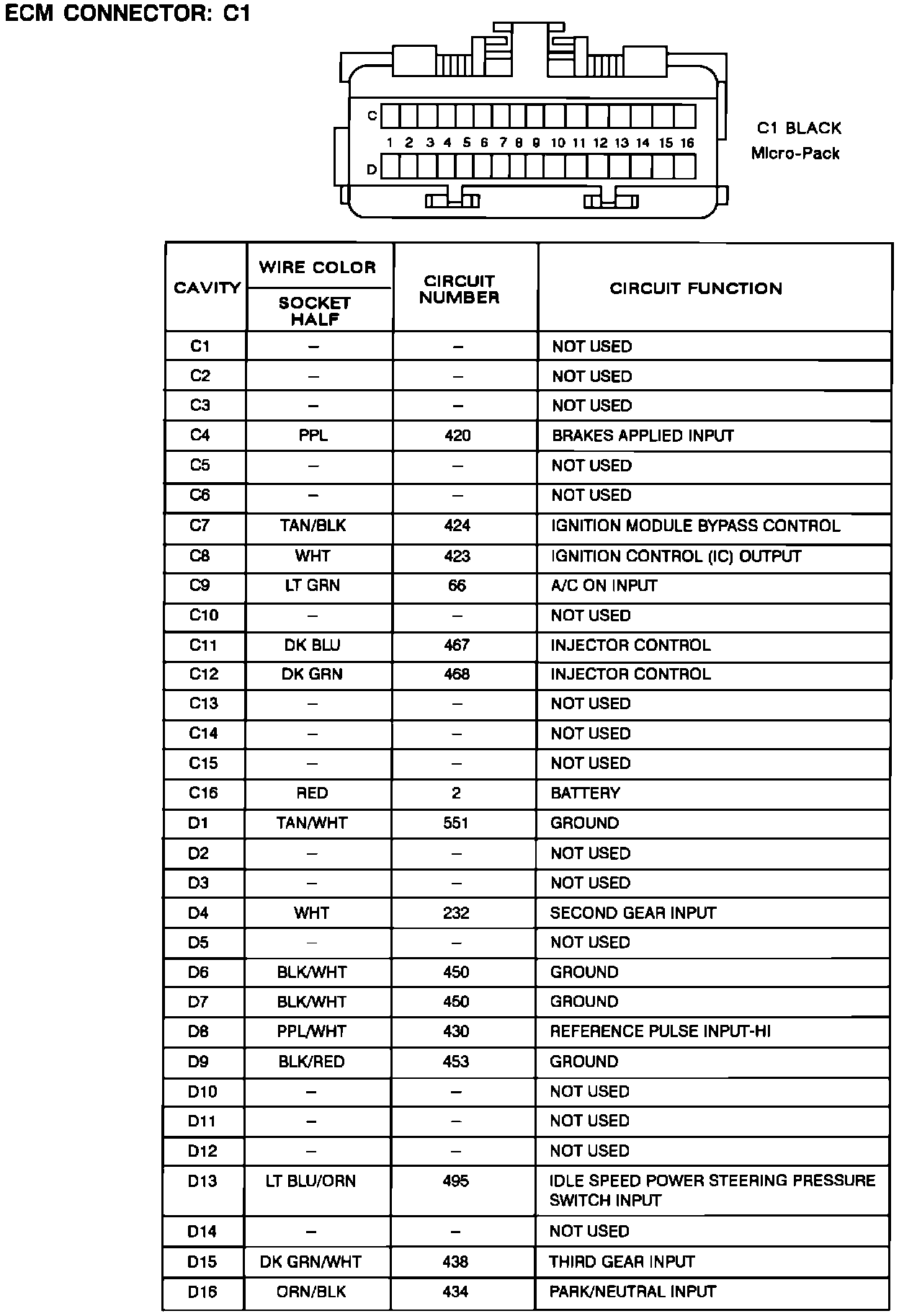

Connector C1

Connector Identification:
