Home >> Chevrolet >> 1993 >> Cavalier/Z24 V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

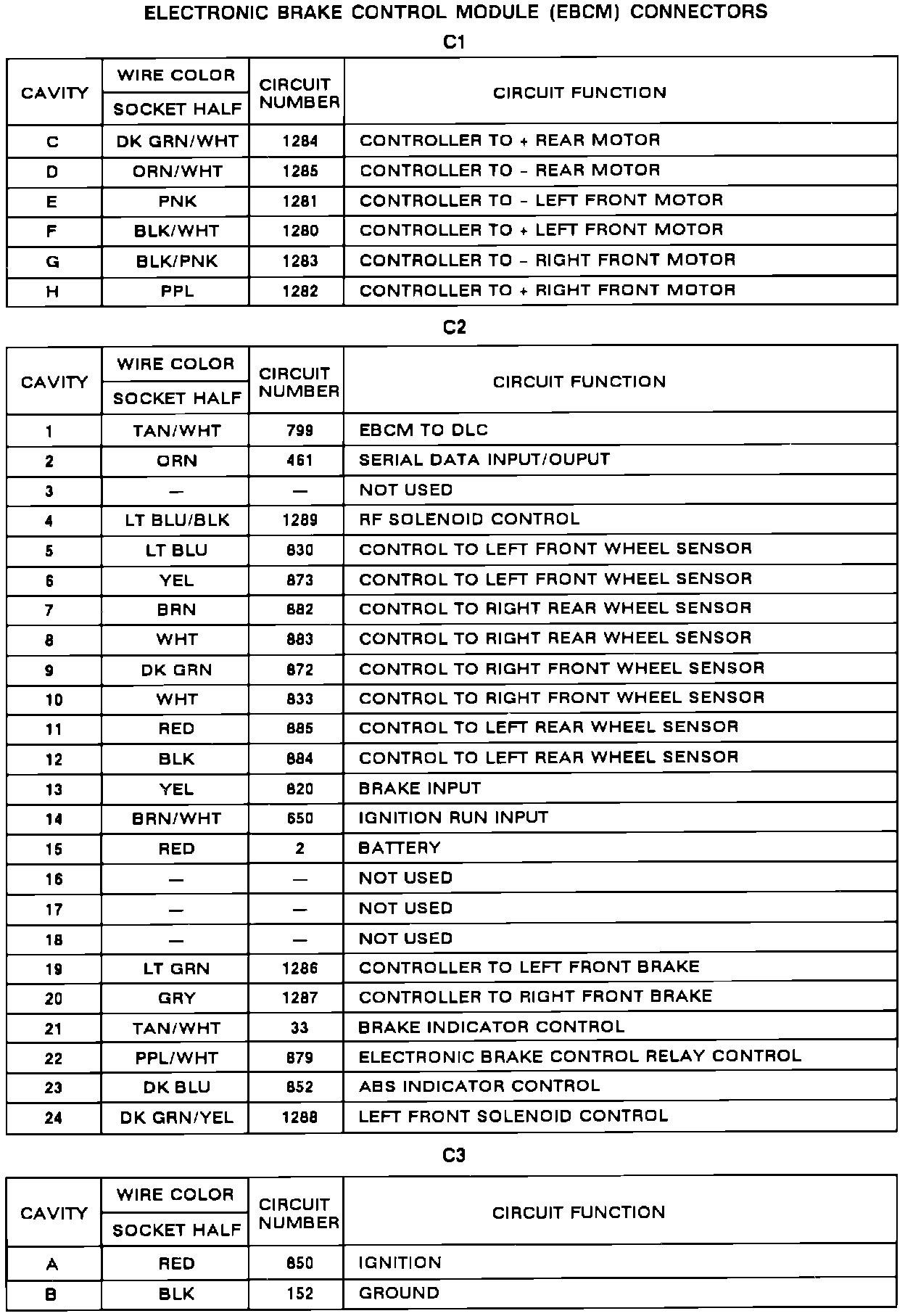

Electronic Brake Control Module

EBCM Connector:



EBCM Connector:
