Engine Control Module

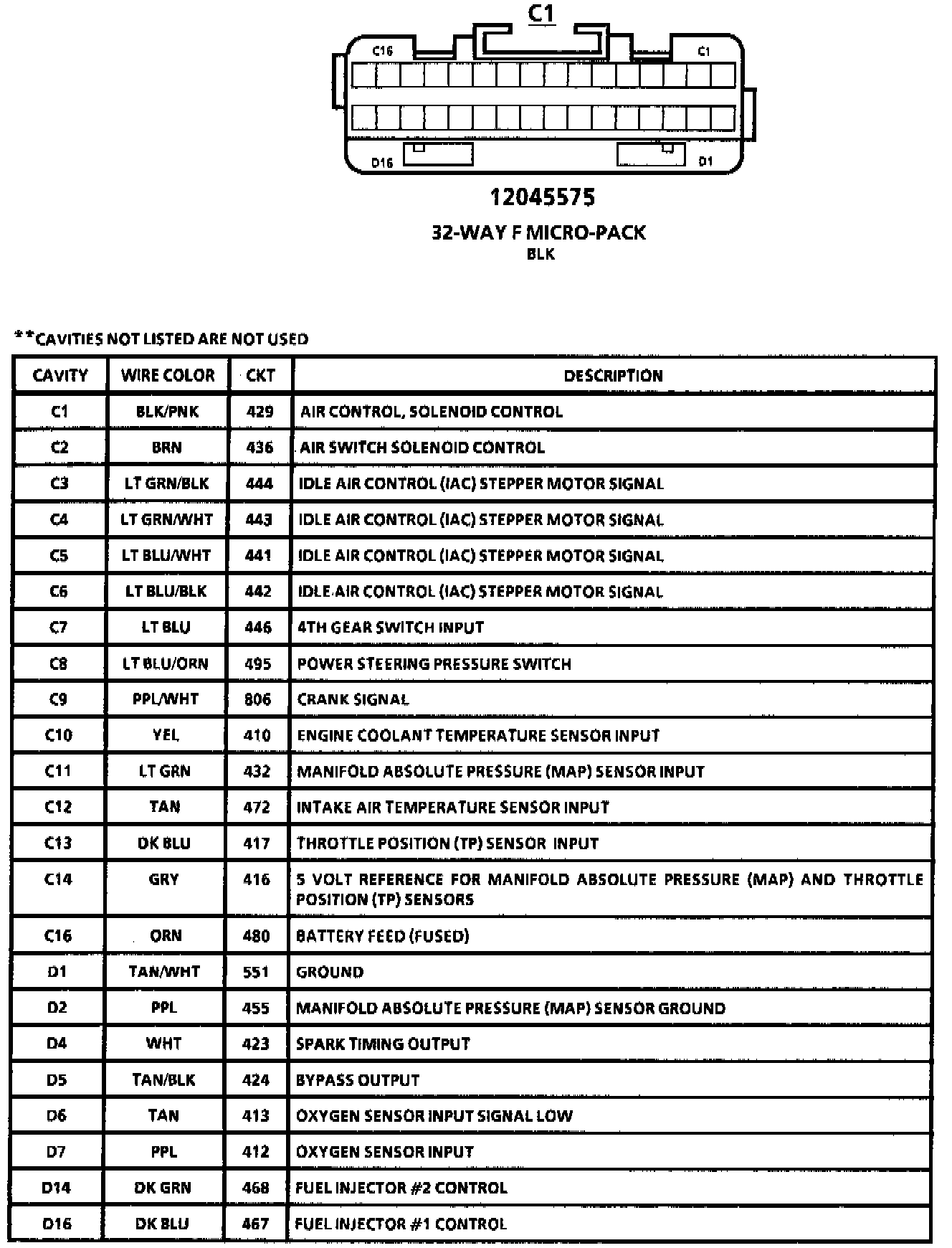

Throttle Body Injection: V6 VIN Z Engine Control Module (ECM) Connector Faces: C1:

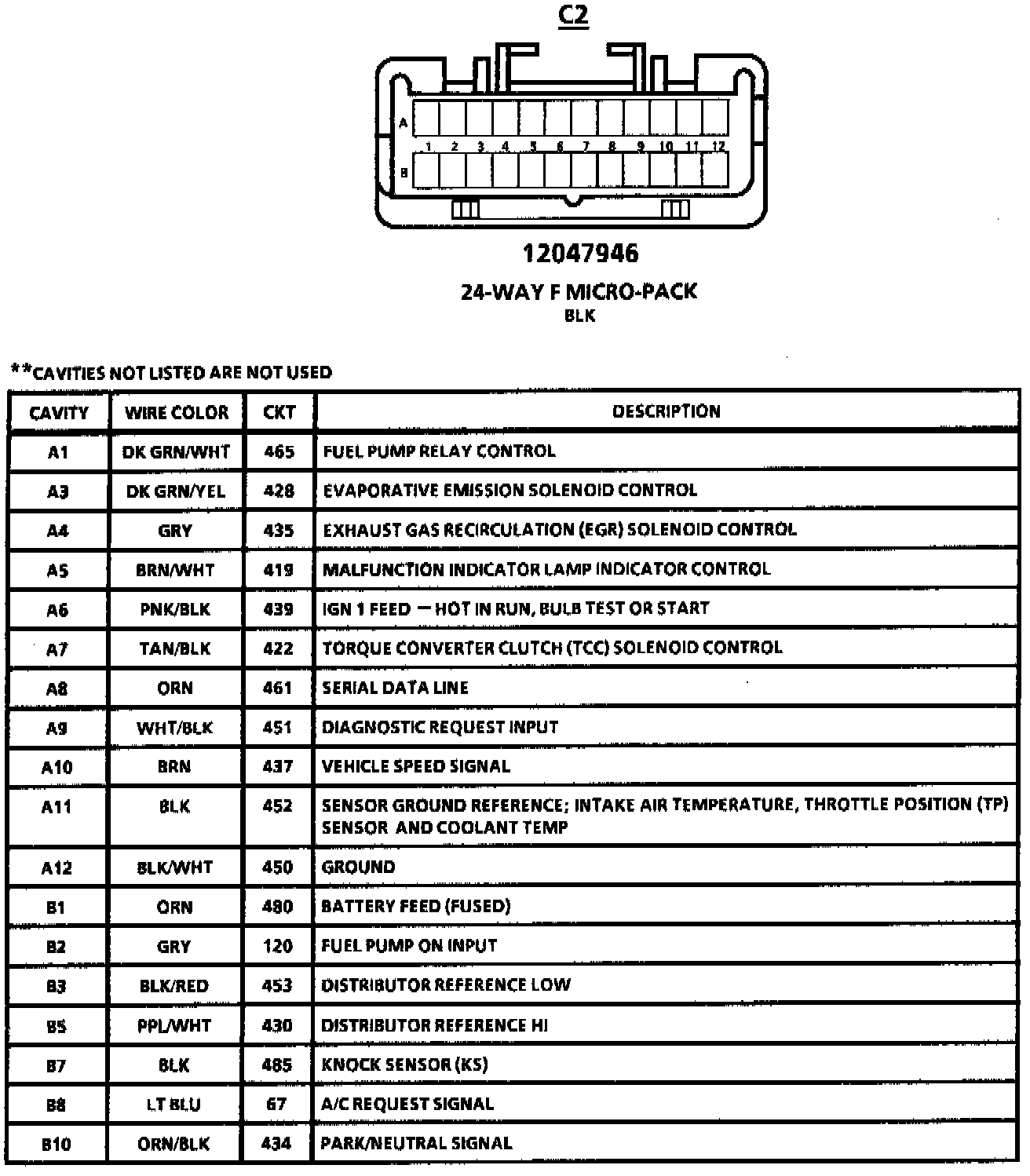

Throttle Body Injection: V6 VIN Z Engine Control Module (ECM) Connector Faces: C2:



ECM Voltage Chart:



ECM Voltage Chart:
