Alternator Replacement

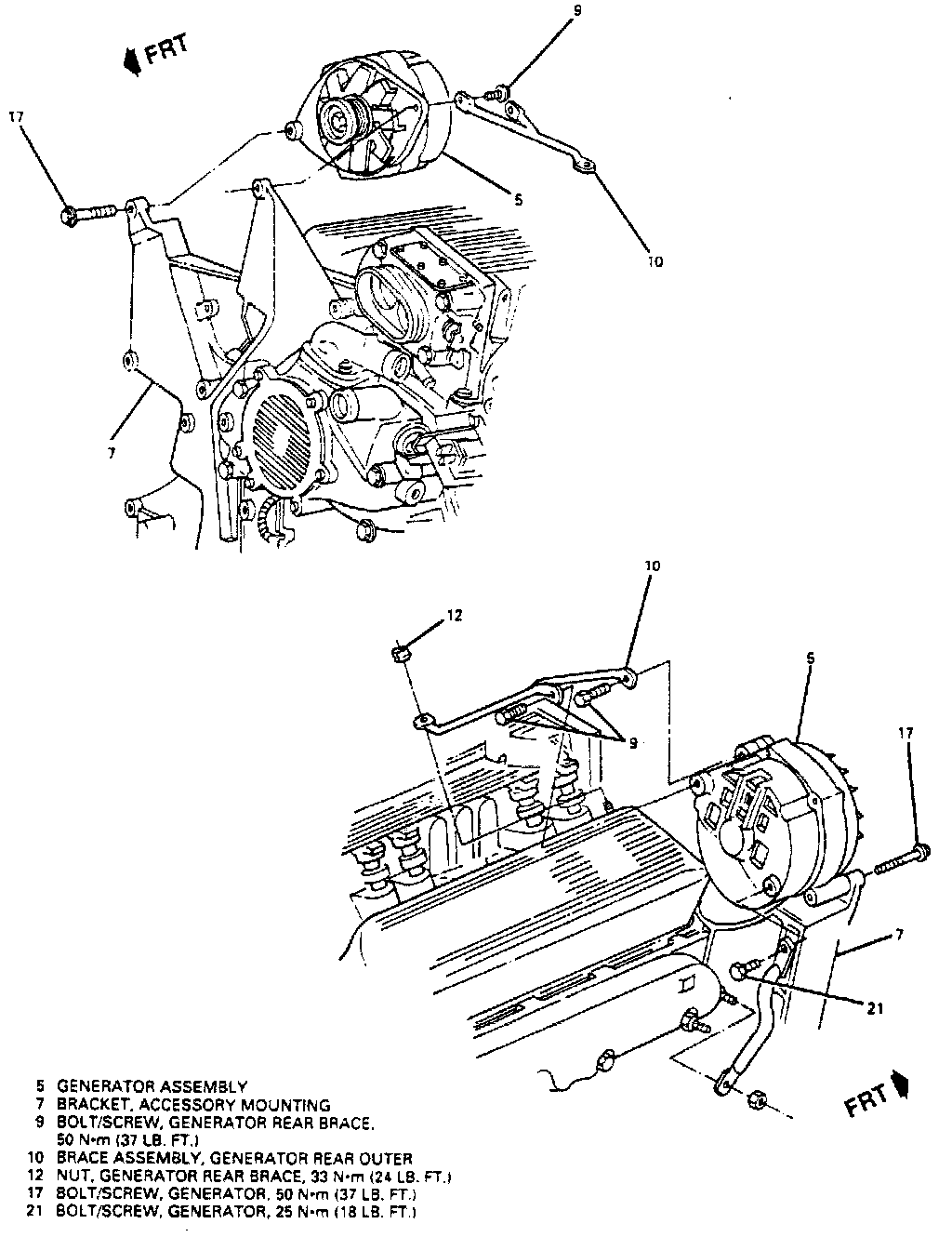

Fig. 9 - Alternator Replacement:

Disconnect battery ground cable. Refer to Fig. 9 for alternator replacement.
