Home
>>
Chevrolet
>>
1993
>>
Camaro V6-204 3.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
>>

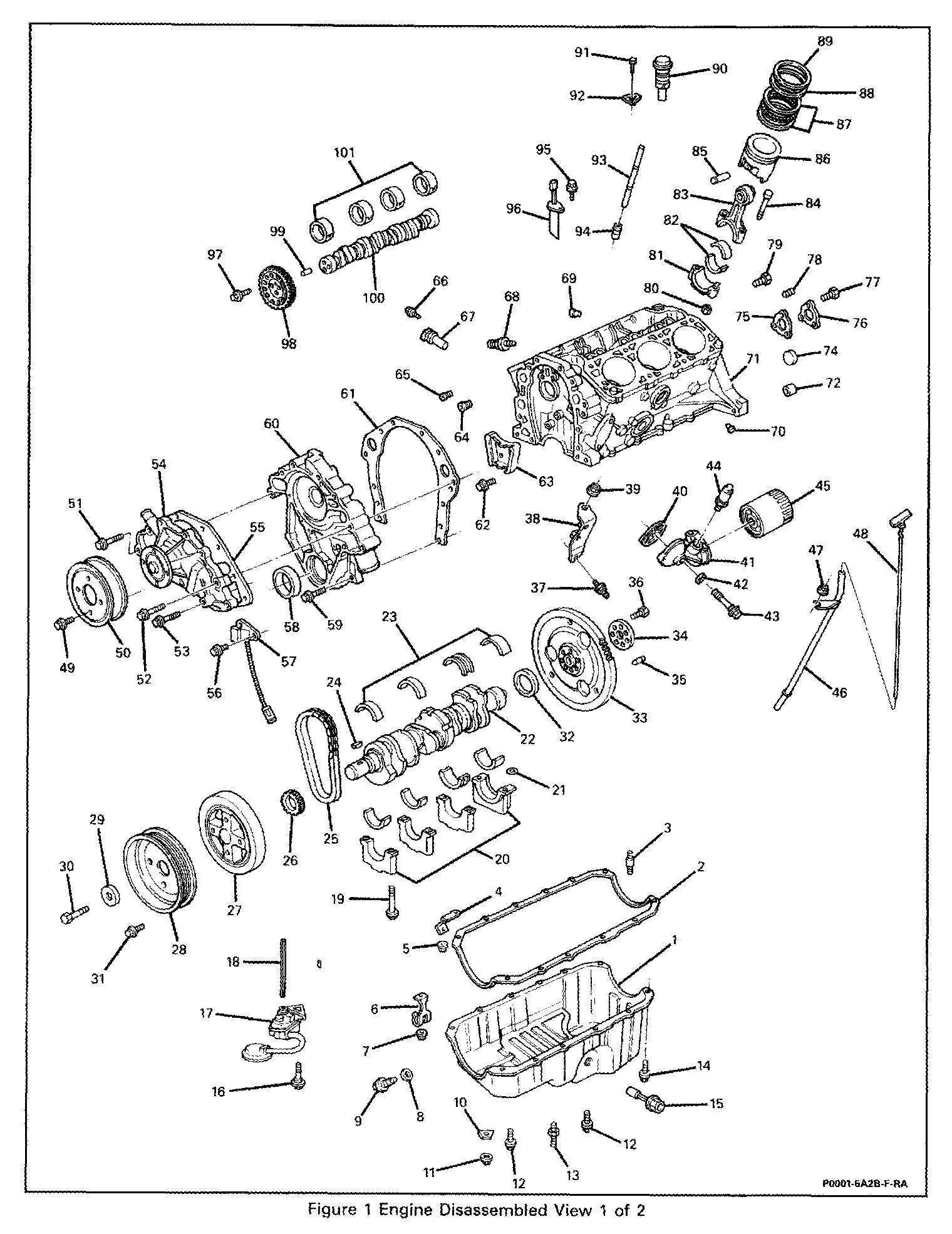

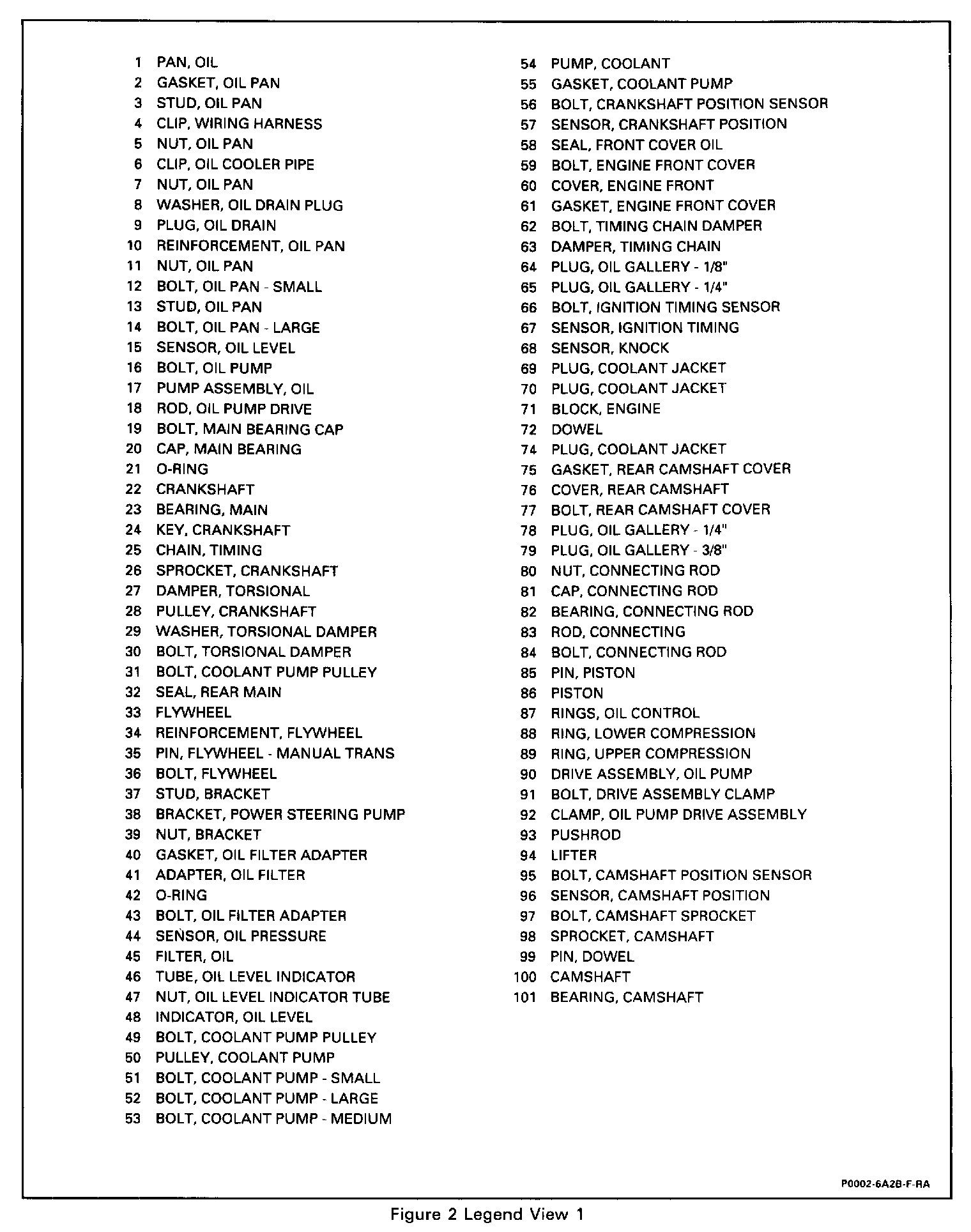

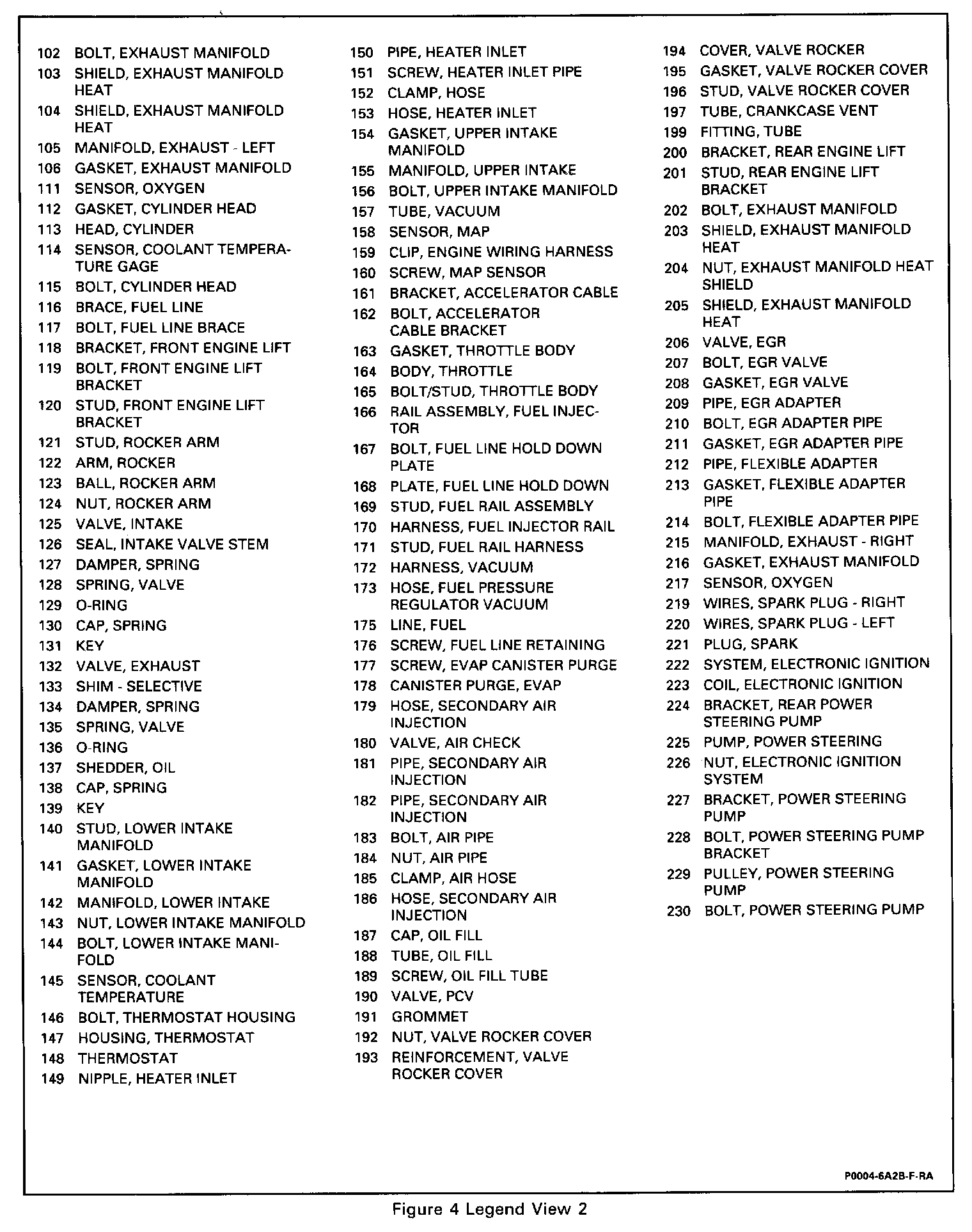

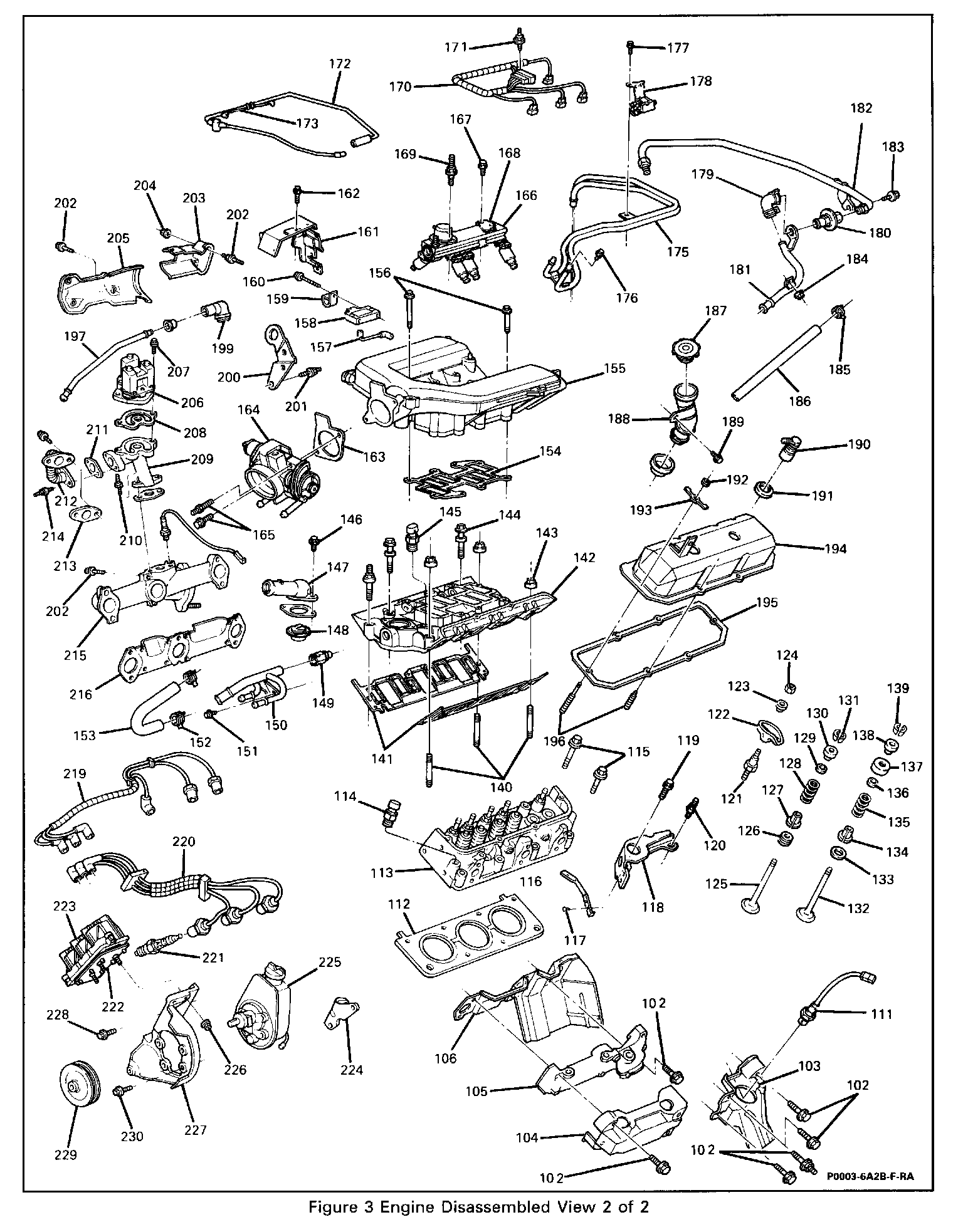

Exploded Views With Numbered Components
Exploded Views With Numbered Components
