Home >> Chevrolet >> 1993 >> Beretta L4-134 2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

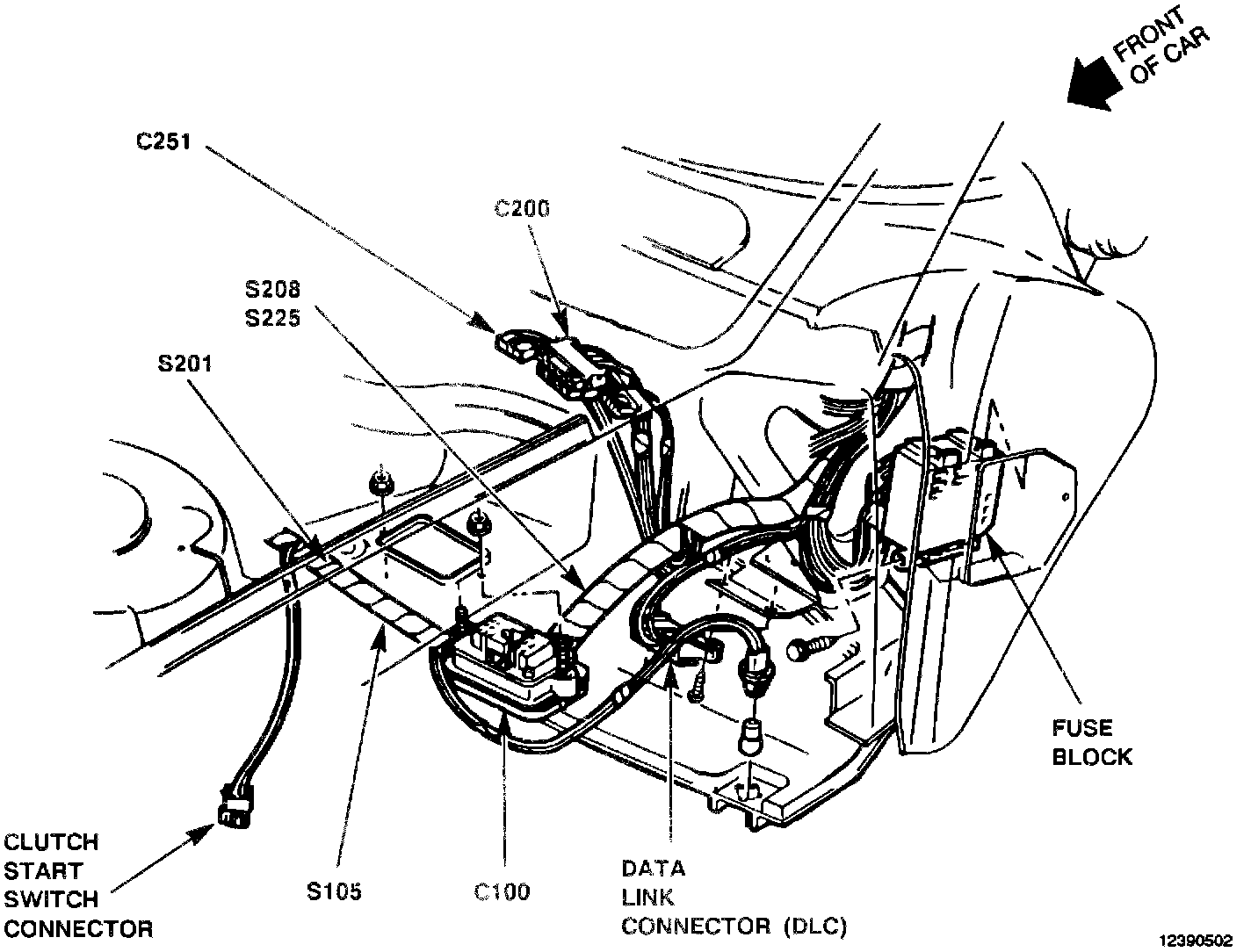

Fuse Block: Locations

Component Locations:
