Beretta L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch

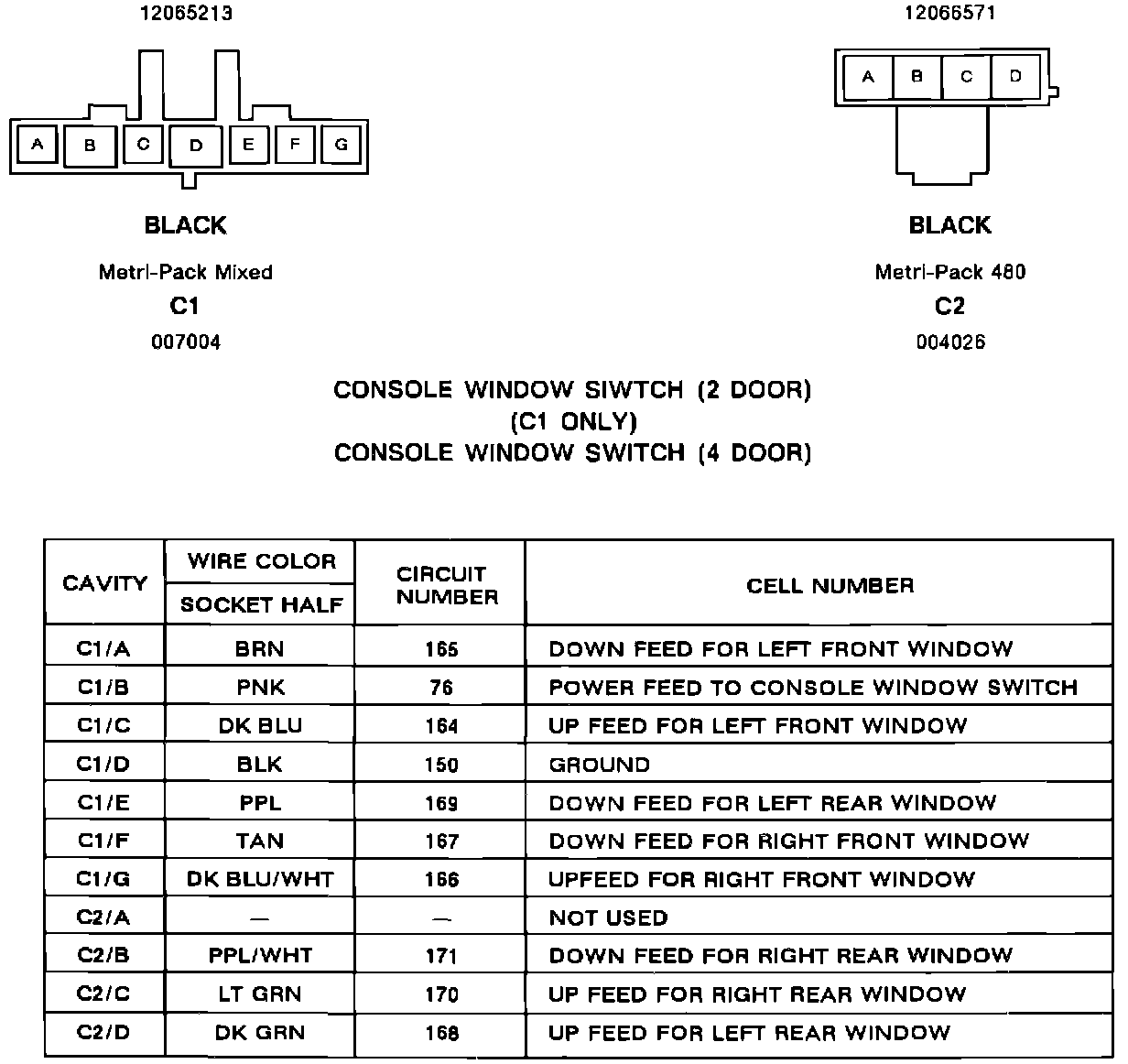

Console Window Switch Connector:
Rear Window Switch Connector:
