A/C Signal: Description and Operation

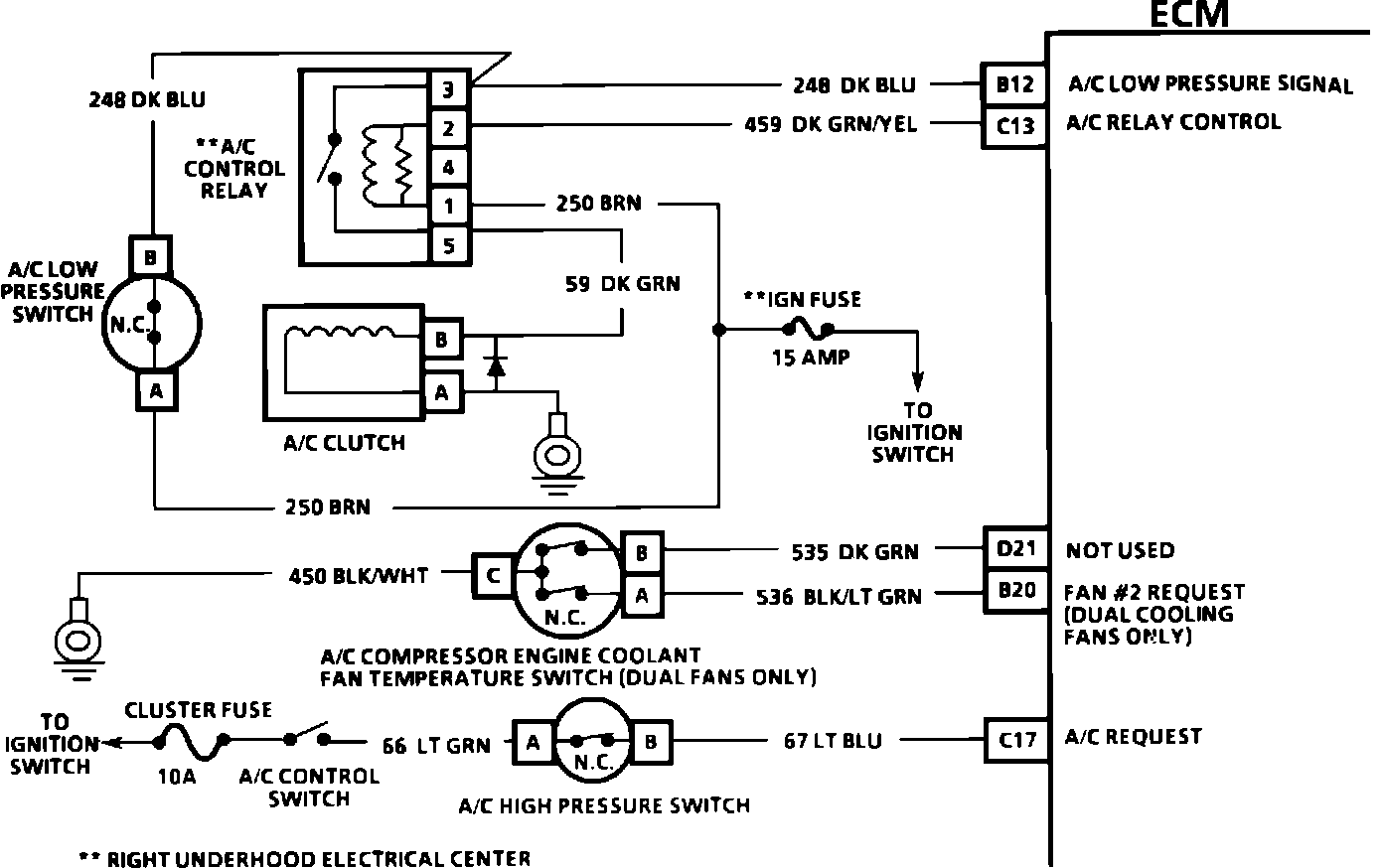

Wiring Diagram For A/C Clutch Control:

This signal indicates that the A/C control switch is turned "ON" and the pressure switch is closed. The computer uses this signal to adjust the idle speed, and on some models engages the A/C compressor clutch.
