Compressor Clutch: Testing and Inspection

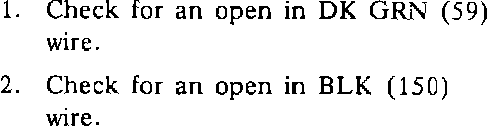

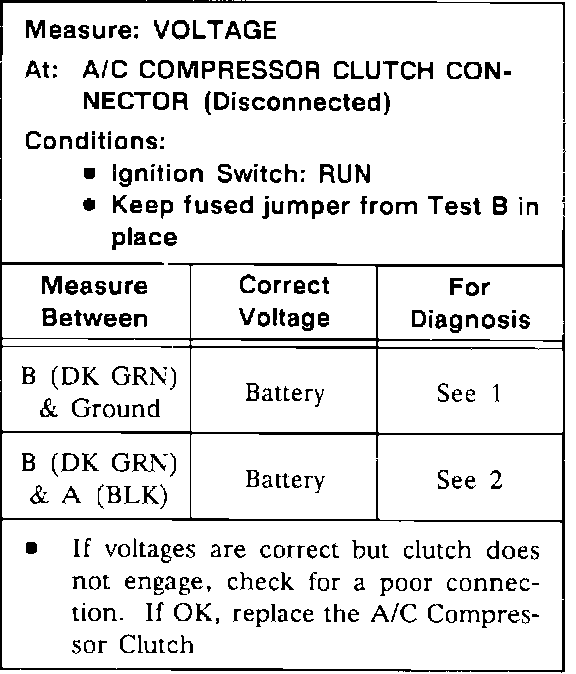

Test C: A/C Compressor Clutch Test:



Test C: A/C Compressor Clutch Test:
