Home >> Chevrolet >> 1992 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module >> I/P Indicators, Rear Defogger Control

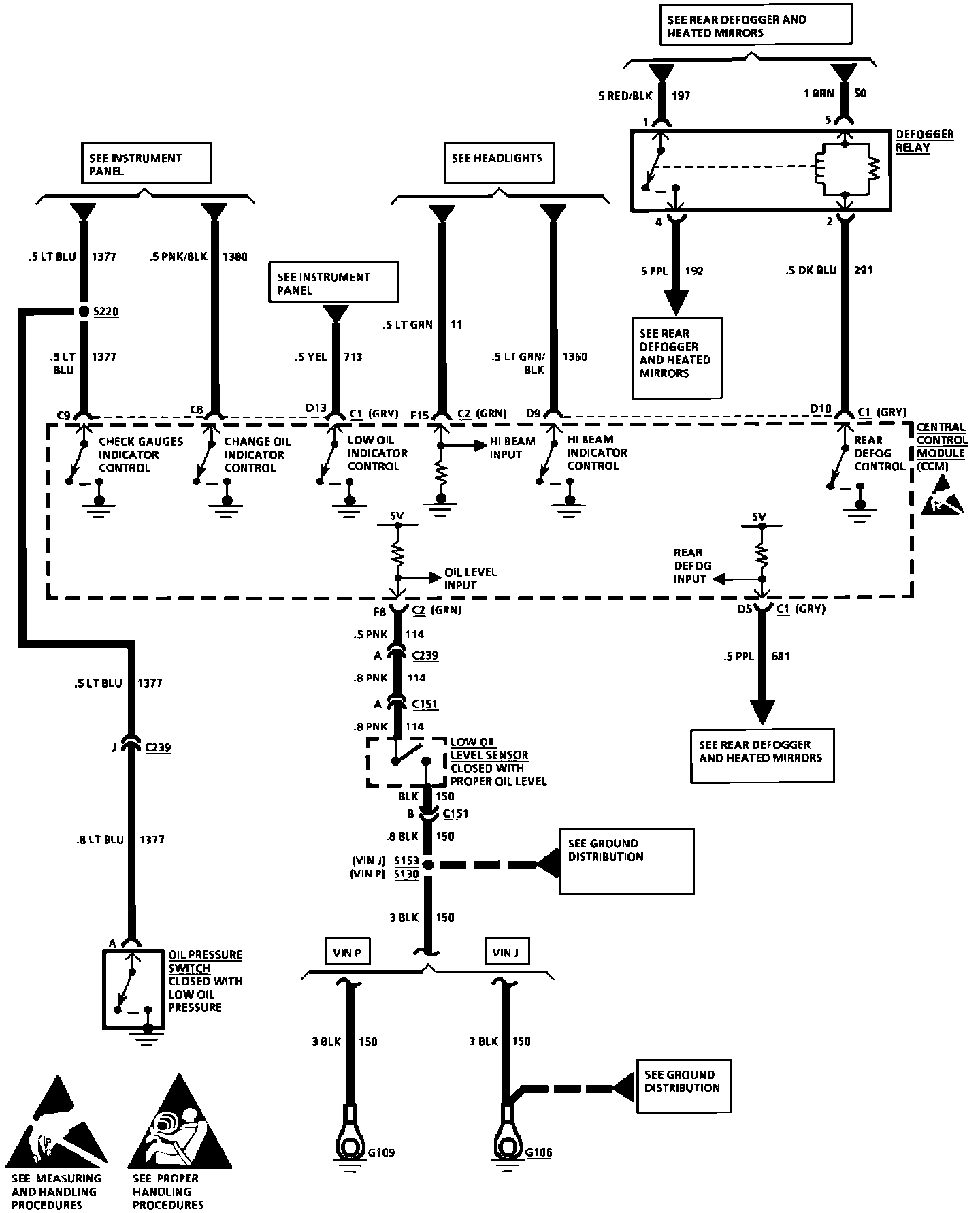

I/P Indicators, Rear Defogger Control

Central Control Module (CCM):
