Home >> Chevrolet >> 1992 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> Control Module HVAC >> Heater and A/C Programmer

Heater and A/C Programmer

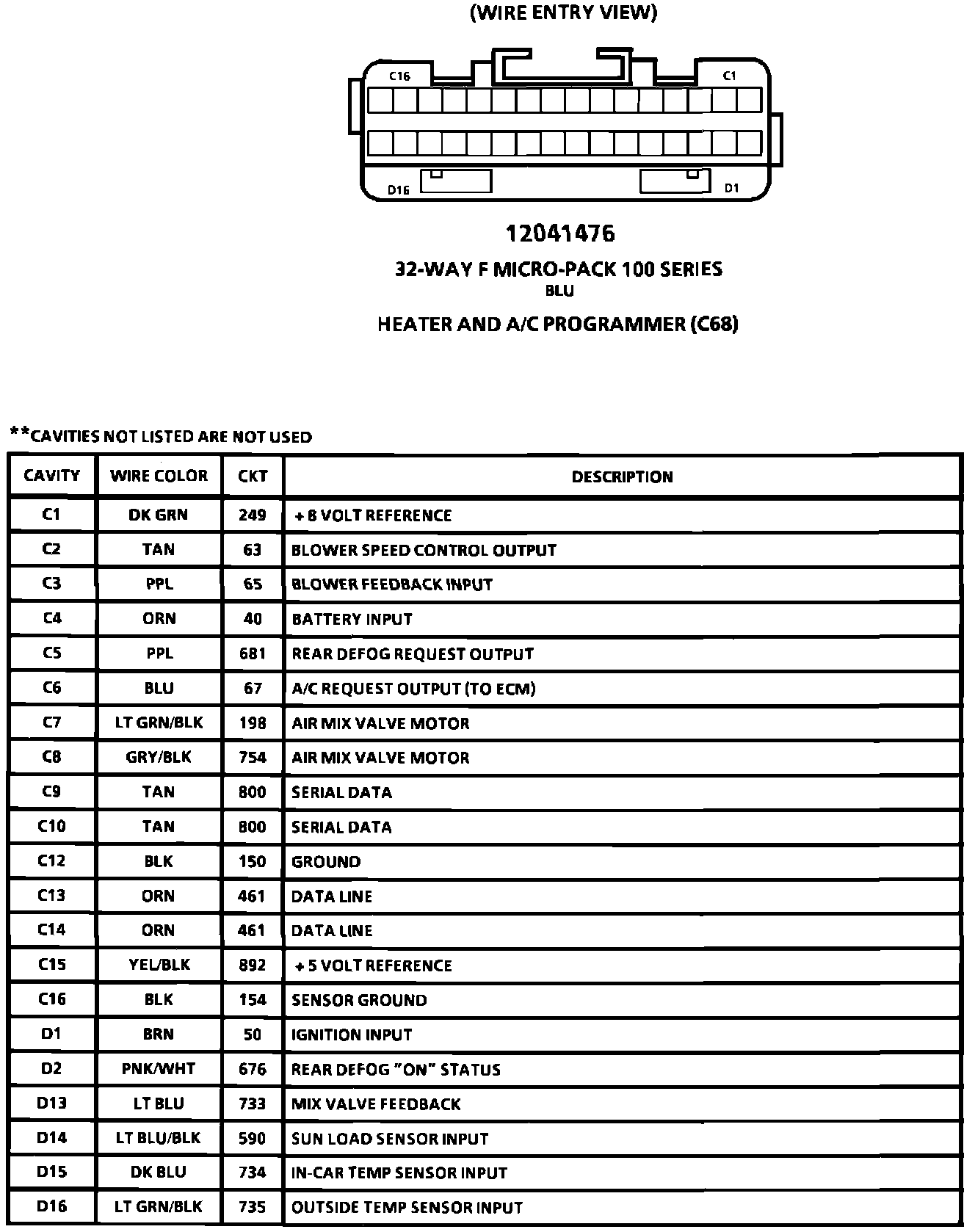

Heater And A/C Programmer Connector:
