Home >> Chevrolet >> 1992 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Jump Start Junction Block

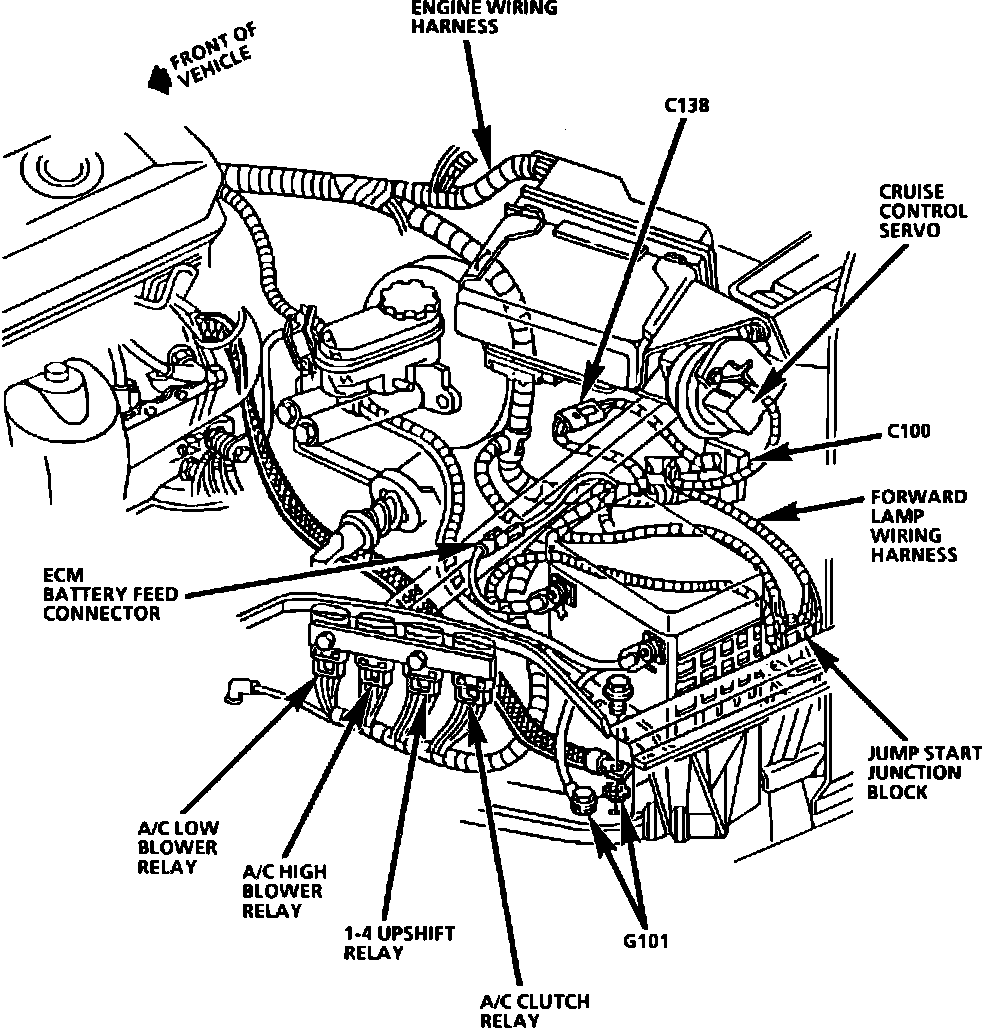

Jump Start Junction Block

LH Rear Of Engine Compartment.:




LH Rear Of Engine Compartment, Behind Battery

Applicable to: 1992 VIN P
