System Specifications

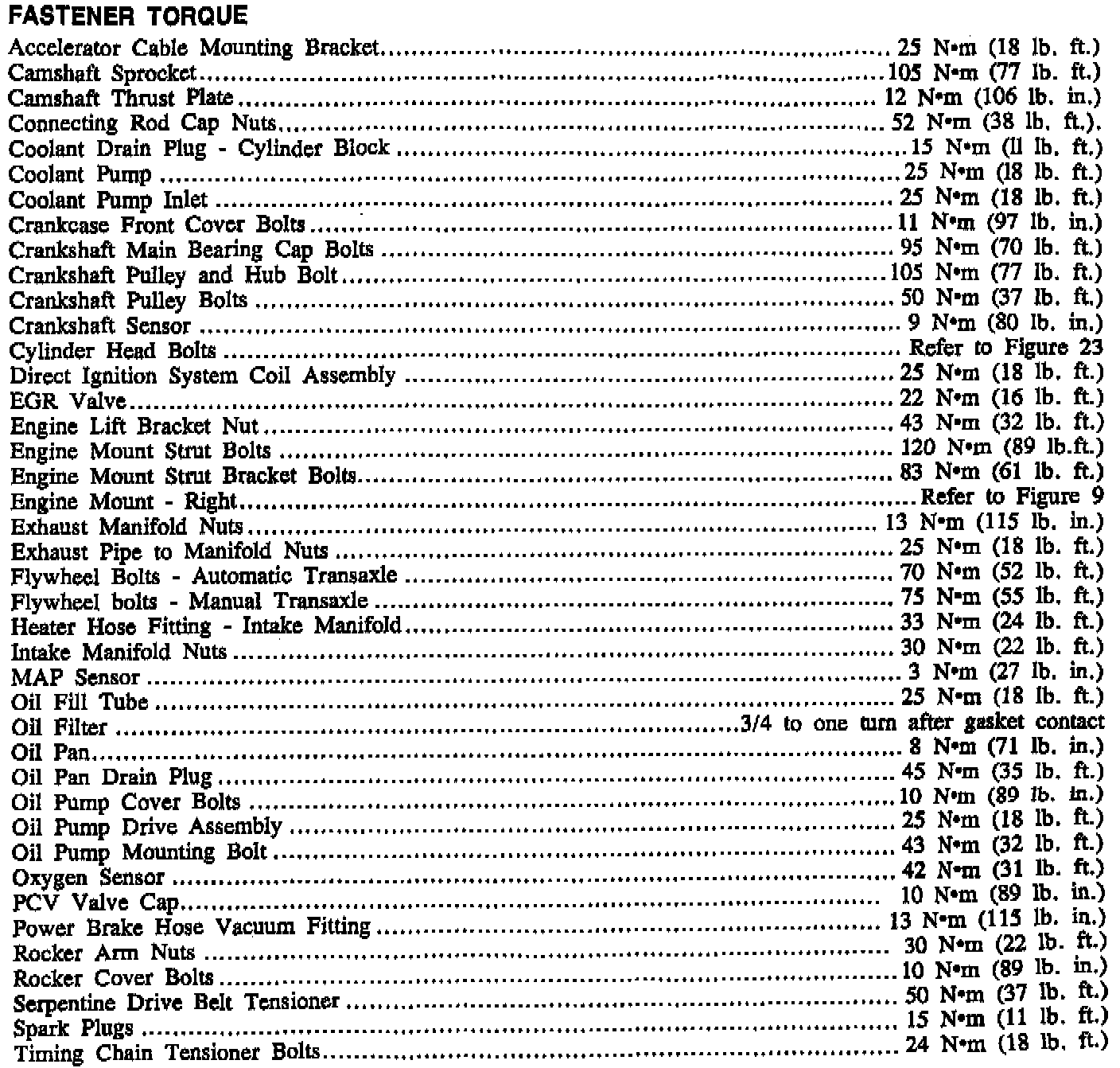

Torque Specifications:

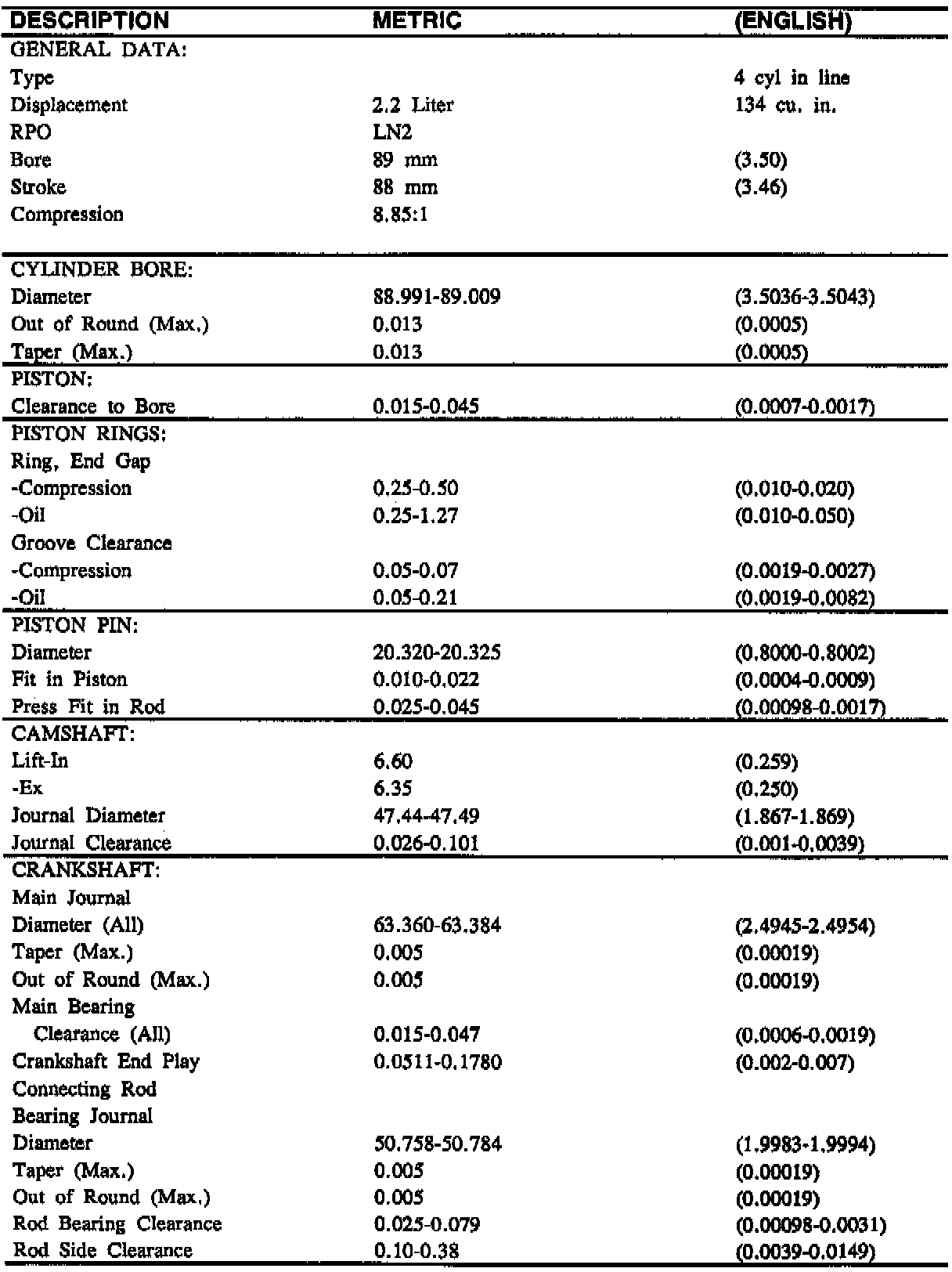

Engine Specifications:

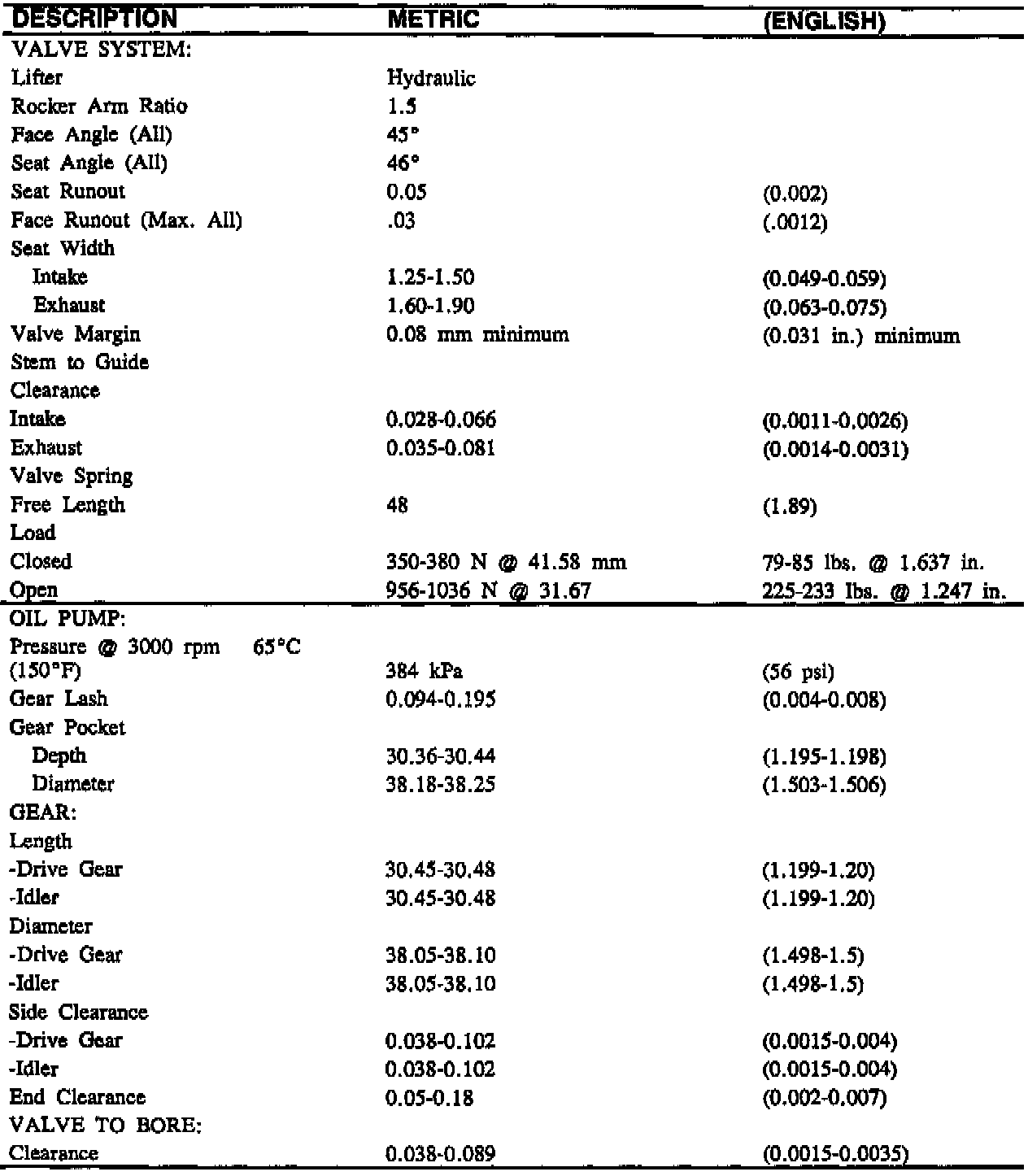

Engine Specifications (continued):

Intake Manifold Sequence:

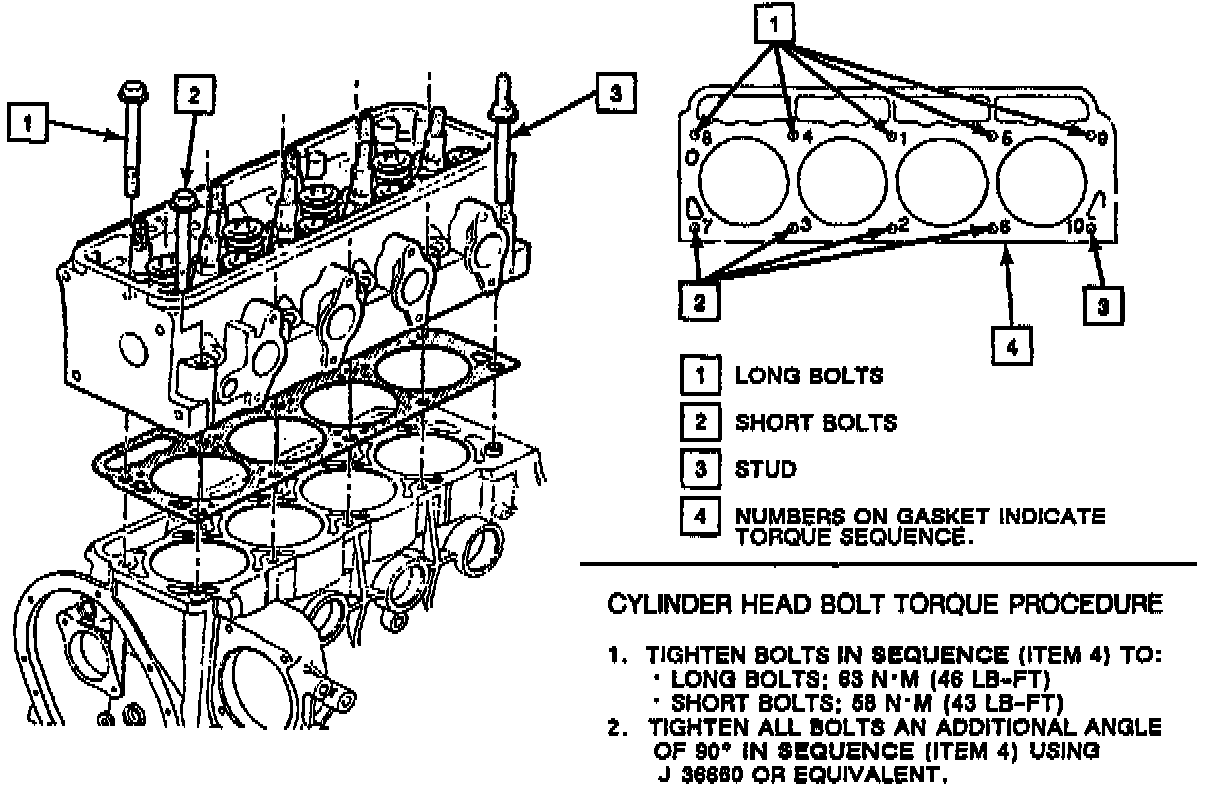

Cylinder Head Sequence:
