Home >> Chevrolet >> 1992 >> Corsica L4-134 2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations >> Transaxle Position Switch

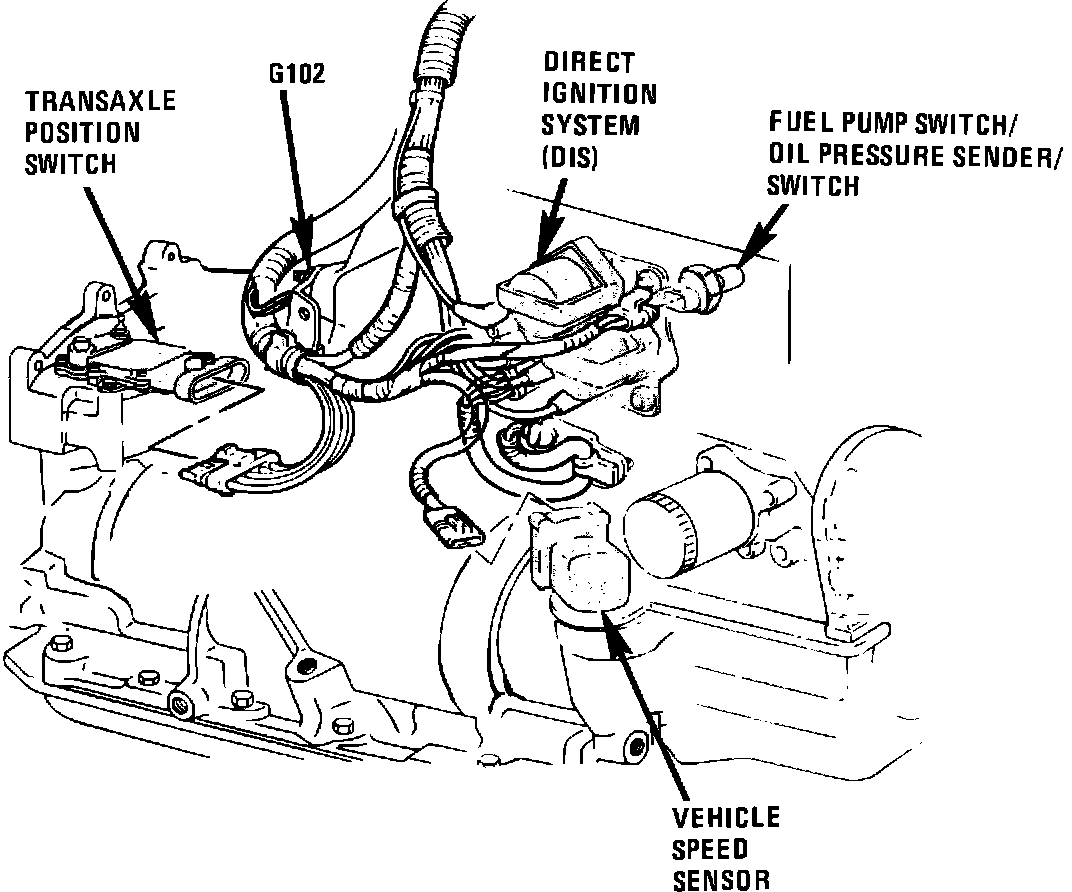

Transaxle Position Switch

LH Rear Of Engine:
