System Specifications

Torque Specifications:




Torque Specifications (continued):

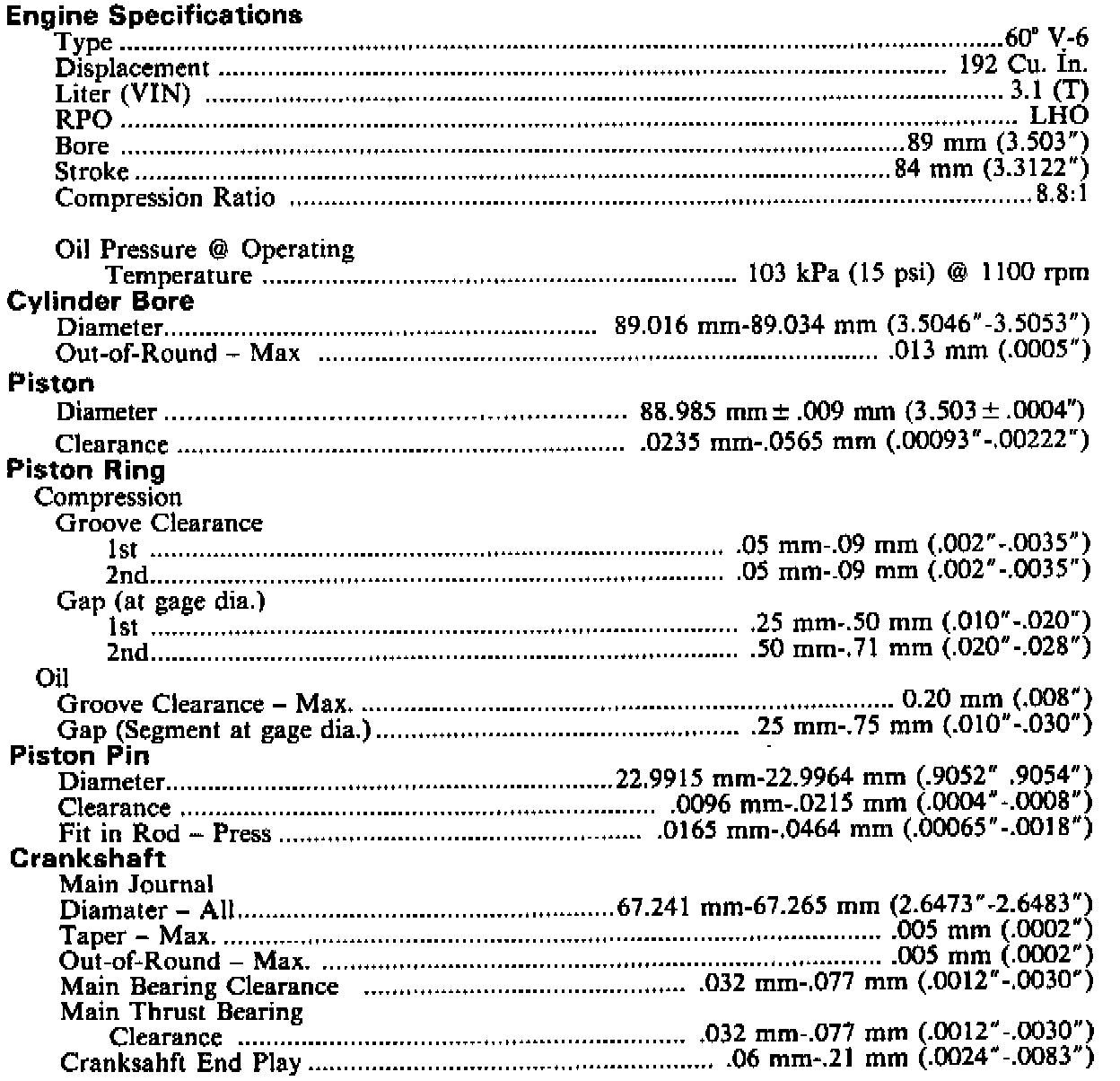

Engine Specifications:

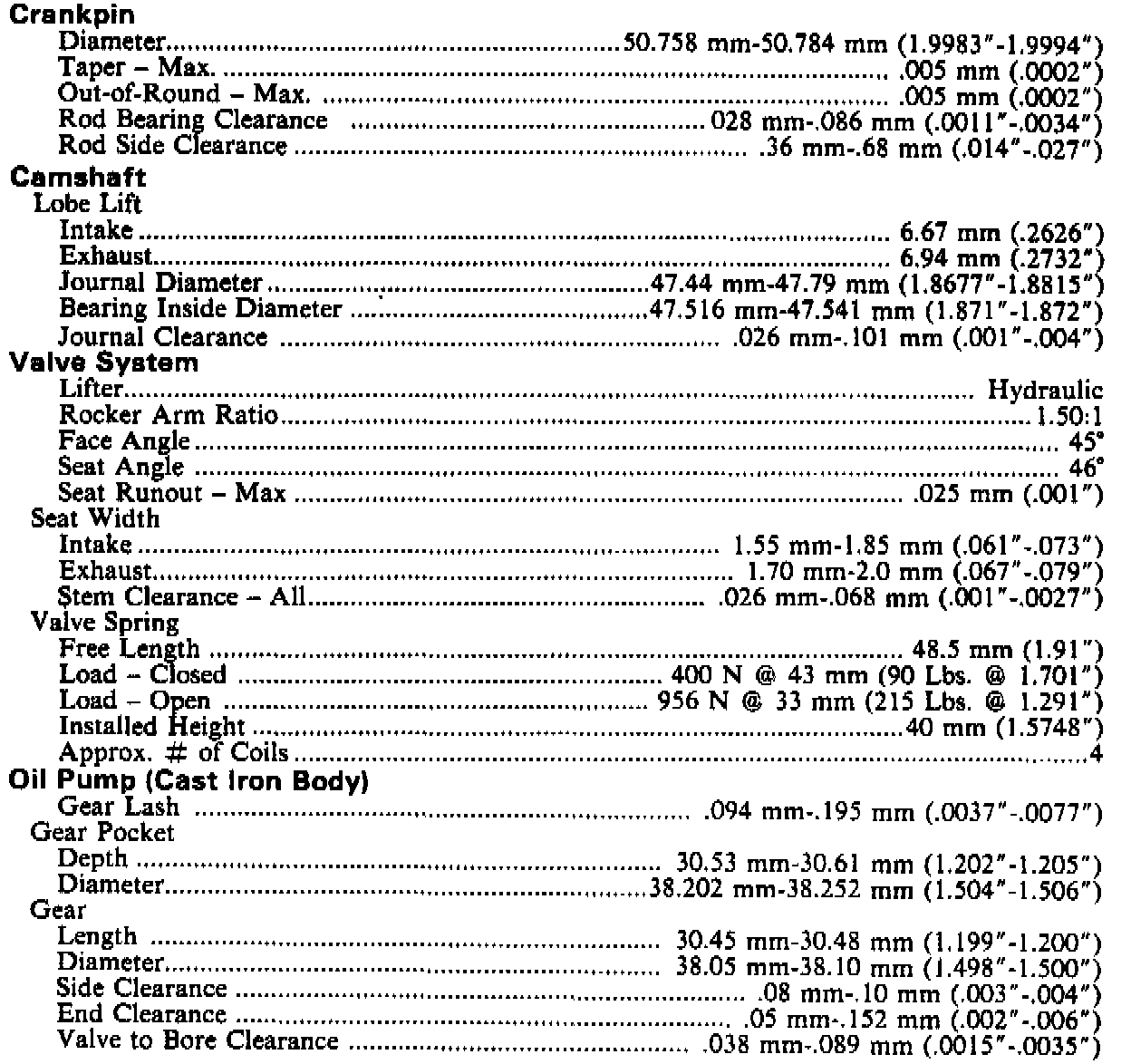

Engine Specifications (continued):






Cylinder Head Sequence:






Intake Manifold Sequence:
