Home >> Chevrolet >> 1992 >> Cavalier/Z24 L4-134 2.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Switch >> Testing and Inspection >> Blower Controls >> Table 1

Table 1

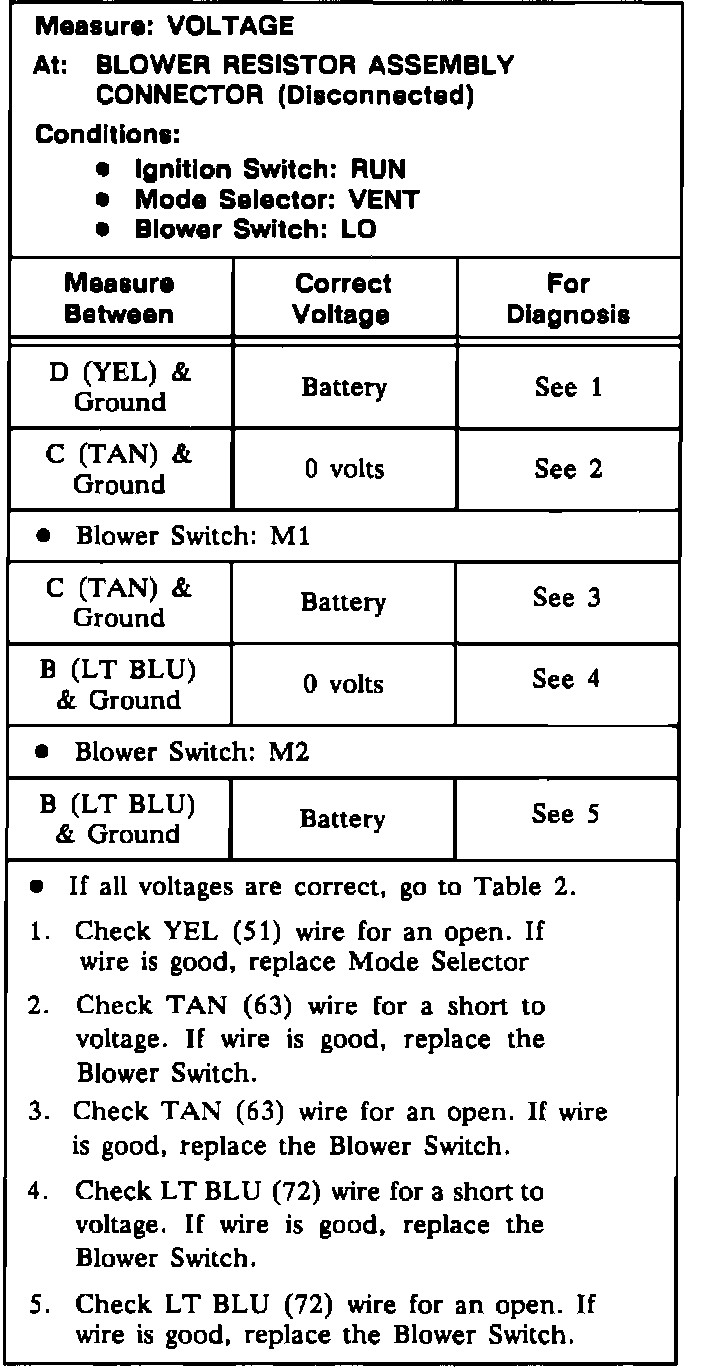

Test D: Blower Switch Test (Table 1):
