Home >> Chevrolet >> 1992 >> Caprice RWD V6-262 4.3L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Locations >> Sedan

Sedan

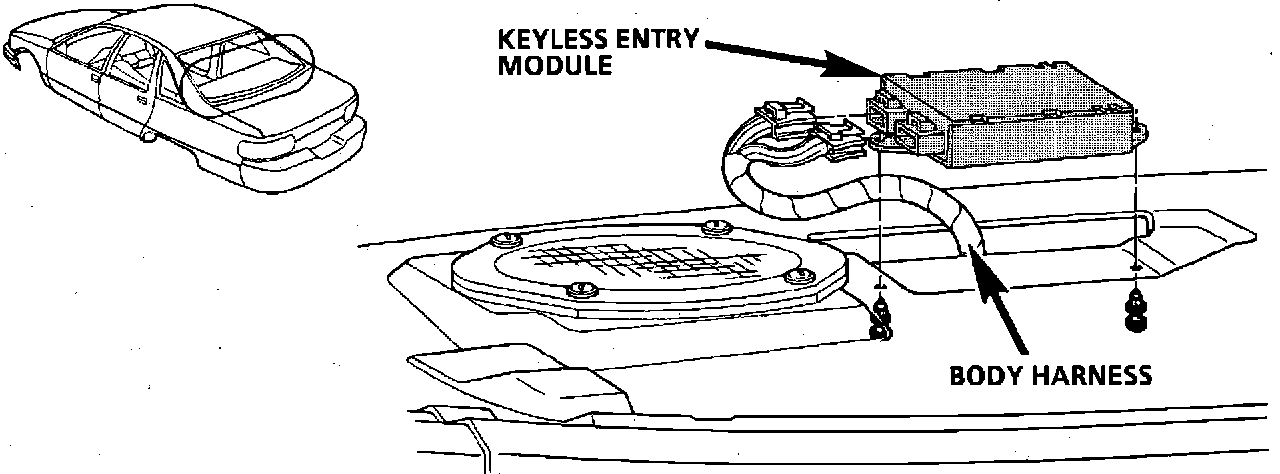

Component Location View. Rear Shelf, Top View (Sedan):

Front of Luggage Compartment, attached to Rear Shelf
