Inside Lock Rod Knob

Lock Rod Knob:

REMOVE OR DISCONNECT

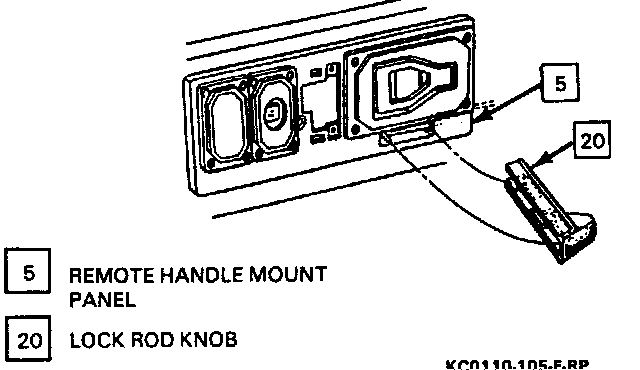

1. Inside lock rod knob (20).
2. Slide lock rod knob (20) forward.
3. Insert a small flat-bladed tool behind the end of the lock rod knob (20) and pry it away from the rod.

INSTALL OR CONNECT
1. Inside lock rod knob (20).
2. Insert end of the lock rod knob (20) through the hole in the trim pad switch and remote handle mount panel (5).
3. Slide the lock rod knob (20) rearward until the end of the rod engages the depression in the end of the lock rod knob (20).
